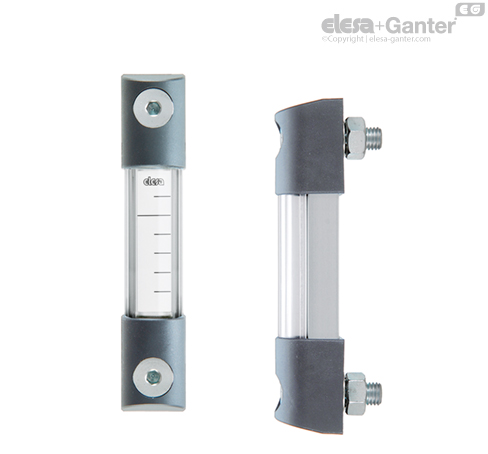

Elesa+Ganter 113467 HCK.127-SST-M12-FKM-PC-P-EHT-NO-80-NO Electrical Level Indicator
The Elesa+Ganter 113467 electrical level indicator is an HCK.127 series oil level monitoring component with visual level indication, normally open minimum-level signalling and an 80°C temperature-related electrical function. It is designed for industrial systems where operators need to monitor both oil level and a critical temperature threshold in a compact, tank-mounted device.
Technical Configuration
This product uses a 127 mm hole centre distance and M12 thread connection. The SST code indicates stainless-steel fixing hardware, including AISI 303 stainless-steel screws and AISI 304 stainless-steel nuts and washers. The assembly ends are made from black glass-fibre reinforced polyamide technopolymer, supported by a natural aluminium frame and a white lacquered aluminium contrast screen.
The transparent PC level tube is intended for oil applications, while the removable polycarbonate front protection helps reduce exposure to accidental impact. The FKM sealing rings support higher temperature resistance compared with standard NBR sealing, which is especially relevant in hydraulic or lubrication systems that may operate under thermal load.
NO Level Signal and 80°C Temperature Function
The NO part of the code refers to a normally open minimum-level contact. In this logic, the electrical contact closes when the minimum level is reached. This can be used to activate alarms, warning lamps, PLC inputs or machine protection circuits.
The 80-NO part indicates a temperature threshold function set around 80°C with normally open behaviour. This is useful in oil circuits where excessive temperature can reduce lubrication quality, affect component life and indicate operational stress. Combining level and temperature signalling in one indicator helps simplify panel design and supports faster diagnostics.
Best-Fit Applications
The Elesa+Ganter 113467 is suitable for hydraulic power packs, industrial lubrication systems, oil tanks on machine tools, compact reservoirs and equipment where both low oil level and high oil temperature must be monitored. Its combined visual and electrical functions make it a practical choice for reliability-focused maintenance teams.
Elesa+Ganter 113467 For more Elesa+Ganter information, visit Elesa+Ganter technical components.
Elesa+Ganter 113467 FAQ
What does Elesa+Ganter 113467 monitor?
It monitors oil level visually, provides a normally open minimum-level signal and includes an 80°C temperature-related electrical signal.
What does NO mean in the product code?
NO means normally open. The contact closes when the defined minimum level or temperature condition is reached.
Why is the 80°C function important?
Oil temperature can affect lubrication performance and machine reliability. An 80°C signal helps operators detect overheating conditions earlier.
Is this product suitable for glycol-based liquids?
This PC version is intended for oil. For water or water/glycol-based liquids, a GL version should generally be evaluated.
