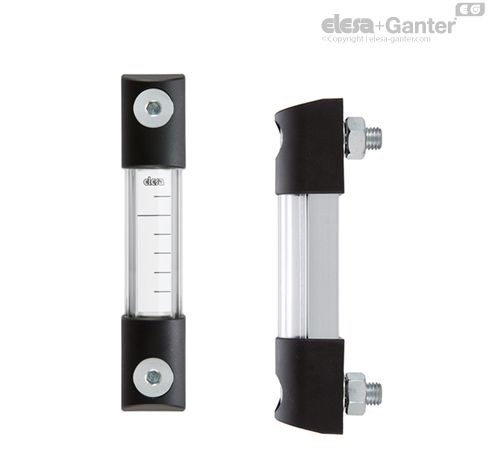

Elesa+Ganter 113463-KN HCK.127-SST-M12-FKM-PC-P-EHT-SW-KN Electrical Level Indicator

The Elesa+Ganter 113463-KN electrical level indicator is a technical oil monitoring component for industrial reservoirs where visual level control and electrical switching must operate together. It is part of the HCK.127 family, which uses a 127 mm hole centre distance and M12 mounting arrangement. This format is widely preferred in compact hydraulic tanks, lubrication units and industrial machine reservoirs.

Material and Construction Details

The body construction includes black glass-fibre reinforced polyamide technopolymer assembly ends, a natural aluminium support and a white lacquered aluminium contrast screen. The transparent polycarbonate level tube is designed for oil applications and gives operators a direct view of the fluid level. The removable front protection provides an additional practical advantage in environments where accidental knocks, oil mist or maintenance dirt may be present.

The SST section of the code identifies stainless-steel mounting components. AISI 303 stainless-steel screws and AISI 304 stainless-steel nuts and washers support reliable assembly and improved corrosion resistance compared with standard zinc-plated hardware. FKM sealing rings are used for higher temperature sealing performance, which is valuable in oil systems exposed to elevated operating temperatures.

SW Contact Function and KN Configuration

The SW contact configuration provides change-over electrical switching at the minimum level point. This means the contact changes between terminals rather than acting only as a single normally open or normally closed circuit. For automation engineers, this allows greater freedom when integrating the level indicator into PLC systems, warning lights, relay circuits or machine interlocks.

The KN version should be selected with attention to connector requirements and cable routing. In machine panels where space, cable direction and service access are important, checking the connector arrangement before installation helps avoid wiring conflicts.

Why It Matters in Maintenance

Oil level problems can cause pump damage, unstable pressure, overheating and premature wear. A product such as Elesa+Ganter 113463-KN supports both fast visual inspection and an automated minimum-level response. This combination makes it useful for maintenance planning and equipment reliability.

For more information about the brand range, visit Elesa+Ganter product range.

Elesa+Ganter 113463-KN FAQ

What is Elesa+Ganter 113463-KN used for?

It is used to monitor oil level visually and provide an SW change-over electrical signal when the fluid reaches the minimum level point.

What does SW mean?

SW means change-over contact. The electrical signal switches between terminals, offering more control logic flexibility.

Is FKM useful in hydraulic oil systems?

Yes, FKM sealing rings are preferred where higher temperature resistance and sealing reliability are required.

Can this indicator support preventive maintenance?

Yes. It allows operators to see the oil level directly and enables the control system to react when the level reaches the minimum threshold.
