Elesa+Ganter 113451-KN Electrical Oil Level Indicator

Overview

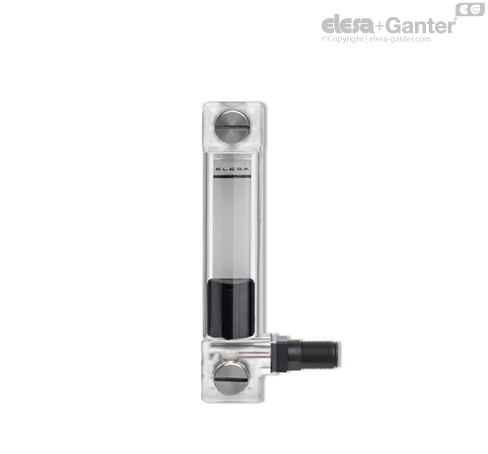

The Elesa+Ganter 113451-KN electrical oil level indicator, coded HCK.127-SST-M12-FKM-PC-P-E-NC-80-NC-KN, is a column-style monitoring component for hydraulic reservoirs. It is designed for users who need a visible oil level column, electrical NC level contact and temperature-related supervision in one assembly.

Technical Characteristics

The product belongs to the HCK.127 family, meaning it has a 127 mm fixing distance. It uses stainless-steel fastening elements, an M12 connection, FKM sealing rings and a transparent polycarbonate tube. The technopolymer assembly ends are reinforced with glass fibre, giving the structure reliable mechanical performance in industrial environments.

Its magnetic float activates the electrical contact at the defined switching point. The normally closed configuration is useful where a control circuit is expected to detect a change from the normal monitored state. The 80°C marking indicates temperature supervision, helping operators identify applications where oil temperature awareness is important.

Application Areas

The Elesa+Ganter 113451-KN electrical oil level indicator is relevant for hydraulic tanks, lubrication systems, industrial presses, mobile hydraulic equipment and production machinery. It is particularly useful where a maintenance technician needs direct level visibility, while the control cabinet receives an electrical signal from the reservoir.

Operational Insight

For reliability-focused maintenance, combining visual inspection with an electrical signal is a strong advantage. Operators can quickly confirm the actual oil level, while automation systems can support alarms or machine protection logic. To explore related options, visit Elesa+Ganter industrial components.

FAQ

What is the product type of Elesa+Ganter 113451-KN?

It is an HCK.127 electrical oil level indicator for hydraulic reservoir monitoring.

How is it different from the standard 113451?

The core technical structure is similar, but the KN suffix identifies the specific execution supplied under that code.

Does it use an M12 connector?

Yes, the product code includes M12.

Why choose an NC contact?

NC contacts are often used where the circuit must remain closed during normal monitored operation and change state during a level event.
