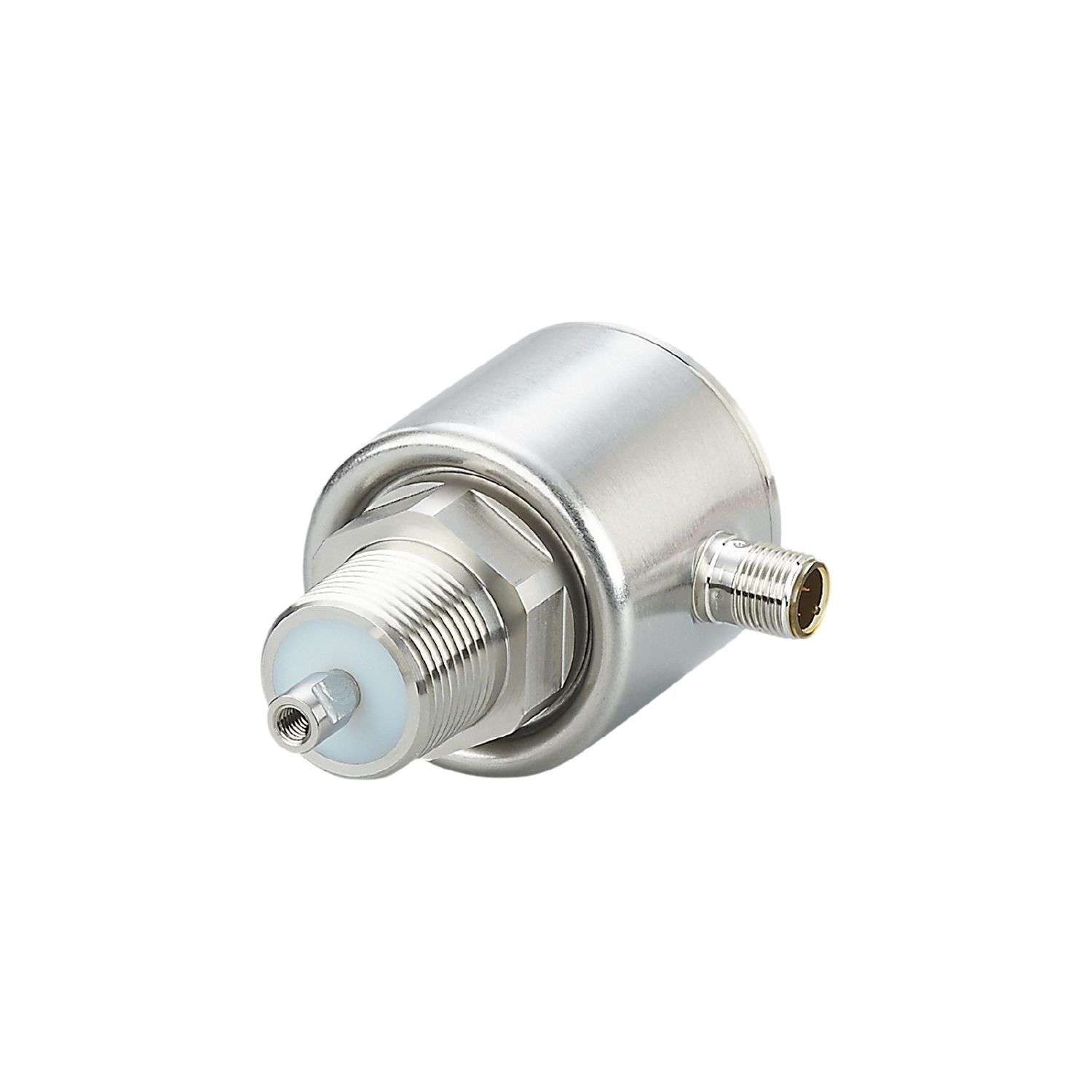

YRD-SENSOR0282 Inductive Proximity Sensor: Principles, Practical Specs, and Installation Guidance

The YRD-SENSOR0282 Inductive Proximity Sensor is designed for reliable, non-contact detection of metal targets in industrial automation. Inductive sensing is a preferred approach in factories because it is resilient: it doesn’t require physical touch, and it typically tolerates dust, oil mist, vibration, and frequent switching. In many procurement lists, “0282” references appear around common inductive sensor families—often M12/M18 formats—used for end-of-travel confirmation, indexing, and machine interlocks.

For projects that combine electronic detection with electromechanical confirmation (a common practice in safety-conscious automation), you may also pair proximity sensors with limit switches and operator heads. For related product families, see Telemecanique sensor solutions frequently applied in industrial environments.

YRD-SENSOR0282 How an Inductive Sensor Works (Plain-English Engineering)

Inductive sensors generate an electromagnetic field at the sensing face. When a metal object enters that field, eddy currents form in the target, which changes the oscillator behavior inside the sensor. The electronics interpret that change and switch the output. Because the target does not need to touch the sensor, wear is minimized and repeatability is improved.

Typical Technical Expectations for YRD-SENSOR0282

Exact values depend on the YRD build variant, but buyers typically evaluate inductive sensors on a consistent set of parameters:

  • Sensing distance: depends on sensor size, target material, and installation conditions.
  • Output type: commonly PNP or NPN, NO/NC behavior depending on the application standard.
  • Supply voltage: typically within standard industrial DC ranges.
  • Protection ratings: industrial enclosures usually target dust/water resistance appropriate for the environment.
  • Switching frequency: important for high-speed counting, indexing, or fast actuator feedback loops.

Sensing Distance Is Not a Single Number

One of the biggest integration pitfalls is assuming the catalog sensing distance will be identical in real machines. In practice, distance varies with:

  • Target material: mild steel performs differently than stainless steel or aluminum.
  • Target size and thickness: thin or small targets reduce effective range.
  • Flush vs non-flush mounting: installation geometry changes field behavior.
  • Environmental noise: welders, VFDs, and poor grounding can create switching anomalies.

YRD-SENSOR0282 Installation Best Practices

1) Choose the Right Mounting Style

Flush-mount (shielded) sensors allow installation in metal brackets with reduced side sensitivity. Non-flush (unshielded) sensors typically provide longer range but require clearance around the sensing face.

2) Use Stable Targets

A consistent target face improves repeatability. If the target is irregular, consider adding a dedicated metal flag or plate to standardize detection.

3) Cable Routing and Noise Control

Route sensor cables away from high-noise lines when possible. If you must cross power cables, cross at 90 degrees and avoid long parallel runs. Good grounding and proper power supply filtering prevent false triggers and intermittent behavior.

Common Use Cases

  • Position confirmation: detecting cylinder end positions and slide locations
  • Part presence: verifying metal components before a process step
  • Indexing/counting: gear tooth detection, metal tab counting, rotation sensing
  • Machine guarding logic: confirming a metal latch position (where appropriate)

YRD-SENSOR0282 Troubleshooting Checklist

  • Short range: confirm target material/size, mounting type, and mechanical alignment.
  • False triggering: evaluate electrical noise, grounding, and cable routing.
  • No switching: confirm wiring (PNP vs NPN), supply voltage, and load compatibility.
  • Intermittent behavior: check vibration-induced target movement and connector strain.

YRD-SENSOR0282 FAQ

Can YRD-SENSOR0282 detect non-metal objects?

Inductive sensors are designed for metal detection. For plastic, glass, or liquid detection, consider capacitive, photoelectric, or ultrasonic sensing technologies.

PNP or NPN—what should I choose?

Choose what matches your PLC input standard and site conventions. Many modern installations standardize on PNP, but always align with your control cabinet design.

Does stainless steel reduce sensing distance?

Often yes. Material properties influence eddy current formation. Validate with the actual target material used in production.

How do I confirm the sensor is mounted correctly?

Verify clearance requirements, secure mechanical alignment, and ensure the target enters the sensing zone consistently across vibration and temperature changes.
