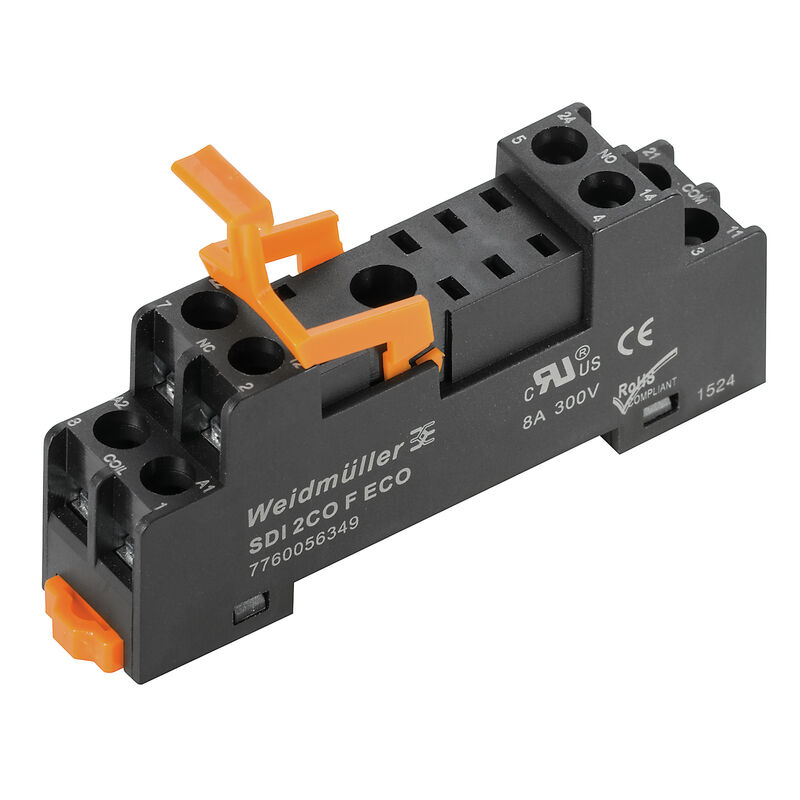

Weidmüller SDI 2CO F ECO Relay Socket Guide
The Weidmüller SDI 2CO F ECO relay socket is a compact interface component intended for accepting industrial plug-in relays in control and automation systems. Also identified as Weidmüller 7760056349 relay socket, this product belongs to the D-SERIES DRI family and is relevant in installations where clean relay integration, efficient wiring, and predictable service access are priorities. In practical panel building, choosing the right socket is just as important as choosing the relay itself.
What the Weidmüller SDI 2CO F ECO is
The Weidmüller SDI 2CO F ECO is a relay socket for industrial plug-in relays with 2 CO contacts and a continuous current rating of 8 A. It uses a screw connection design and is part of the compact DRI width class. This makes it useful in cabinet layouts where relay density, tidy cable management, and easy replacement are all important project requirements.
Users often search for terms like Weidmüller SDI 2CO F ECO relay socket, Weidmüller 7760056349 socket, or Weidmüller DRI 2 CO socket because compatibility and wiring characteristics must be exact. In industrial control engineering, a socket is never a generic detail.
Technical characteristics that define its use
The Weidmüller SDI 2CO F ECO relay socket is specified for 2 CO contact configurations and an 8 A continuous current. The socket supports conductor cross-sections typically ranging from 0.5 mm² to 2.5 mm² for finely stranded wiring, with related limits for ferruled conductors as well. These ranges are important in practical cabinet work because they determine how smoothly the socket fits common wiring strategies.
An important note in the official product information is that cross connection is not available for this socket, and markers are not available for it either. Those details may seem small, but they matter. They affect panel standardization, maintenance planning, and labeling expectations.
Why this socket is relevant in compact relay design
Compact relay systems depend on efficient interface components. The Weidmüller SDI 2CO F ECO relay socket helps create that efficiency by combining a narrow DRI-format approach with industrial screw connection reliability. It allows users to integrate plug-in relays without sacrificing access for maintenance or clarity in the cabinet layout.
Because it is intended for two changeover contact arrangements, it fits applications that need moderate control flexibility without moving into larger socket formats. That makes it practical in machine control, process interfaces, alarm routing, and status switching functions where cabinet space is always under pressure.
Typical application areas
The Weidmüller 7760056349 relay socket is suitable for industrial control panels, machine-building projects, distributed I/O interface cabinets, and automation retrofits. It can be used wherever a compatible 2 CO industrial plug-in relay is part of the control concept. Typical installations include signal isolation, command switching, condition indication, and interface tasks between logic and field devices.
The screw connection design also supports familiar wiring practices for technicians working in mixed environments that combine older standards with newer modular relay solutions. That balance between compactness and conventional wiring is a strong point of the DRI platform.
Important selection and planning notes
Before using the Weidmüller SDI 2CO F ECO, engineers should verify relay compatibility, conductor size, current requirement, and the implications of not having cross-connection or marker support. These constraints do not make the product less capable, but they do shape how it should be used in a standardized panel concept.
In many cases, accurate planning is what transforms a simple relay socket into a reliable long-term interface. Knowing its strengths and boundaries helps avoid redesign work later in the project.
For more information about related relay interface options, visit Weidmüller relay solutions.
FAQ about the Weidmüller SDI 2CO F ECO relay socket
What is the Weidmüller SDI 2CO F ECO used for?
The Weidmüller SDI 2CO F ECO is used as a relay socket for industrial plug-in relays. It provides the wiring and mounting interface for compatible relays in control cabinets and automation systems.
How many contacts does the Weidmüller 7760056349 socket support?
This socket is intended for relays with 2 CO contacts, also known as two changeover contacts.
What is the current rating of the Weidmüller SDI 2CO F ECO?
The socket is specified with a continuous current rating of 8 A.
What conductor sizes can be used with this socket?
The official product information lists conductor compatibility in the range of approximately 0.5 mm² to 2.5 mm² for finely stranded wiring, with additional values for ferruled conductors.
Does this socket support cross connections or markers?
No. The product information specifically notes that cross connection is not available and markers are not available for this socket.
Why would someone choose this socket over a larger alternative?
The main reasons are compact layout efficiency, compatibility with DRI-format relay concepts, and the practicality of screw connection wiring in industrial control environments.
