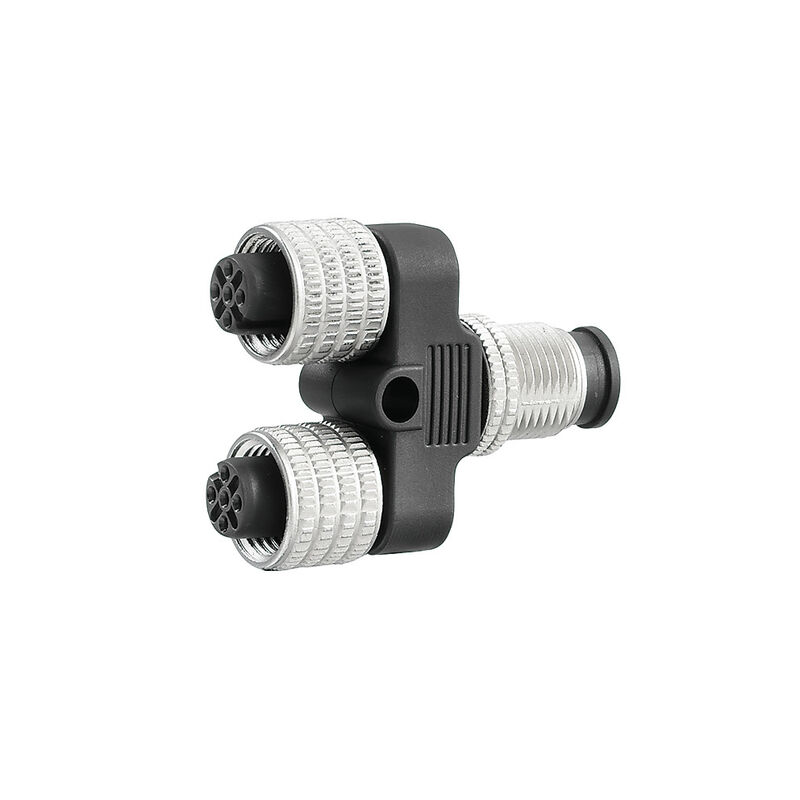

Weidmüller SAI-Y-5S B2-4 2M12 Y Connector Signal Distributor Technical Overview
The Weidmüller SAI-Y-5S B2-4 2M12 Y connector is a compact signal distributor built for reliable signal splitting and transfer in industrial automation environments. In systems where one M12 connection needs to feed or branch into downstream devices, a well-specified Y connector can save space, shorten installation time, and reduce the need for custom cabling. That is exactly where this model fits.
Product role in industrial connectivity
The Weidmüller SAI-Y-5S B2-4 2M12 signal distributor is intended to distribute and transfer electrical signals to downstream peripheral devices. It belongs to the family of sensor-actuator adaptors used in compact machine wiring. In practice, it helps standardize machine interfaces where M12 circular connectors are already the preferred format.
The product uses an M12 connection architecture with a 5-pole arrangement and is described as a Y connector. For engineers working on machine sensors, actuators, and decentralized field connectivity, this means a familiar connector format with predictable installation behavior.
Key technical specifications
According to the published product data, the Weidmüller SAI-Y-5S B2-4 2M12 Y connector signal distributor is rated for 24 V nominal voltage and 4 A nominal current. It uses A-coding, includes gold-plated contact surfaces, and combines contact materials such as CuZn for pins and CuSn for sockets. The housing material is specified as PUR, while the threaded ring uses die-cast zinc.
Protection is another strong point. The unit carries an IP67 rating, making it suitable for demanding industrial conditions where dust and temporary water exposure are realistic concerns. The housing temperature range is listed at roughly -25 °C to +90 °C, which supports use across a wide range of indoor automation scenarios.
Why these details matter
Not every connector in a machine is treated equally. A Y distributor has to maintain signal integrity while also surviving repeated handling, tightening, vibration, and environmental exposure. The use of gold-plated contacts is particularly relevant because it supports stable contact quality in low-voltage signal applications. The IP67 protection rating also makes the connector more dependable in washdown-adjacent or dust-prone industrial settings.
The tightening torque specification, around 0.8 Nm, also matters more than it first appears. Correct torque supports sealing performance, mechanical stability, and long-term connection reliability. In large installations, seemingly small connector details often make the difference between stable uptime and recurring field faults.
Typical applications
The Weidmüller SAI-Y-5S B2-4 2M12 Y connector is well suited for sensor branching, compact machine modules, I/O distribution points, and automation layouts where space is limited but reliability cannot be compromised. It is commonly relevant in packaging systems, intralogistics equipment, food processing machinery, and OEM-built automation cabinets with field-mounted devices.
Because M12 connectors are widely adopted across industrial Ethernet and sensor-actuator systems, products like this help preserve standardization. They also simplify spare-part logistics, because technicians can identify, replace, and document components more easily. For more information about Weidmüller, related field connectivity components are worth reviewing as part of a broader machine interface strategy.
Weidmüller SAI-Y-5S B2-4 2M12 Y Connector FAQ
What is the Weidmüller SAI-Y-5S B2-4 2M12 used for?
It is used to distribute or branch electrical signals from one M12 connection to downstream field devices in industrial automation systems.
How many poles does the Weidmüller SAI-Y-5S B2-4 2M12 have?
This model is a 5-pole Y connector, making it suitable for common sensor-actuator wiring applications that require multiple signal paths.
Is the Weidmüller SAI-Y-5S B2-4 2M12 suitable for harsh environments?
Yes. It is specified with IP67 protection and a PUR housing, both of which support use in demanding factory conditions.
What is the voltage and current rating of this Weidmüller Y connector?
The published nominal values are 24 V and 4 A, which are typical for industrial sensor and control signal applications.
Why are gold-plated contacts important?
Gold-plated contacts help maintain reliable electrical performance, especially in low-voltage signal environments where stable contact resistance is essential.
Where is this connector commonly installed?
It is commonly used in automated machinery, field I/O layouts, sensor branching points, and modular machine stations where M12 connectivity is standardized.
