Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 Fixed Cable Version M8 Distribution Box Guide
The Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 fixed cable version is designed for compact and reliable signal distribution in industrial automation. In applications where multiple sensor signals need to be bundled into one central outgoing cable, this kind of M8 distribution box helps simplify wiring, reduce installation effort, and improve serviceability on the machine. For integrators and maintenance teams working with decentralized I/O layouts, the product sits in a practical category between conventional point-to-point wiring and more complex fieldbus architectures.
What the product is built for

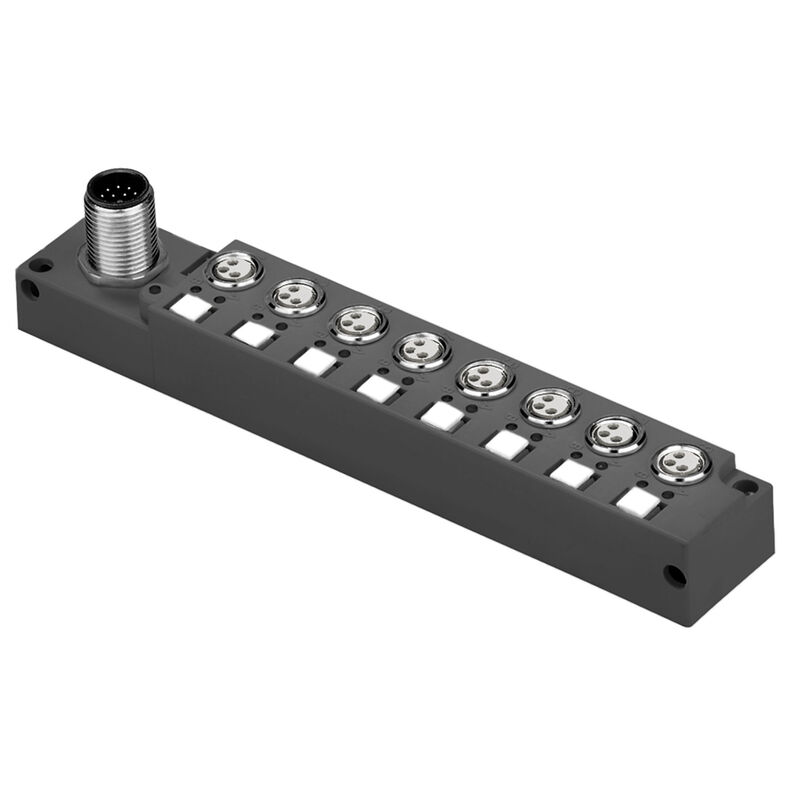

This Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 M8 distribution box is a fixed-cable signal distribution solution with eight signal paths integrated into a robust housing. It is intended for sensor/actuator environments where compact dimensions, quick installation and dependable connection quality matter. The unit is specified for 30 V operation, uses PNP wiring, and includes LED status indication, which is especially useful during commissioning and troubleshooting.
Because the product comes with a pre-assembled 5 m PUR cable, it fits well in installations where cable routing is known in advance and mechanical durability is a priority. PUR cable jackets are widely chosen in automation because they perform well in dynamic applications and resist many common industrial stresses.
Core technical characteristics
The official specification identifies this model as a fixed cable version in the M8 family. It has a 5 m cable length, a black PUR sheath, and a cable structure listed as 8 x 0.34 mm² + 2 x 0.75 mm². The product is also marked as unshielded and suitable for cable carrier use, which matters in moving machine sections where repeated flexing can quickly expose weaker cabling systems.
Dimensionally, the housing is compact enough for space-sensitive machine layouts, with published dimensions of roughly 144 mm height, 24 mm width, and 18.2 mm depth. The operating temperature range is specified at approximately -25 °C to +80 °C, giving it enough environmental tolerance for typical factory automation settings.
Why this matters in real machine design
In practical terms, a product like the Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 fixed cable version M8 distribution box helps reduce panel-to-field complexity. Instead of routing many separate cables through a machine frame, engineers can consolidate signals at the field level. That usually means cleaner layouts, faster assembly times, and easier replacement work if a cable path has to be serviced later.
The integrated LED function also adds value. In the field, visual feedback is often the fastest way to isolate missing supply voltage, a failed sensor, or a wiring fault. That is one reason M8 distribution boxes remain highly relevant in packaging, conveyor systems, assembly lines, and small automated cells.
Best-fit applications
This model is especially relevant in compact sensor networks, machine modules with repeated layouts, and installations where standard PNP sensor logic is already in use. It is also suitable when installers want a rugged, preconfigured signal distribution point rather than a custom-built field wiring assembly.
For teams standardizing machine connectivity, the Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 distribution box offers a predictable configuration that supports faster documentation and more consistent spare-part planning. For more information about Weidmüller, it is worth reviewing related connectivity and signal distribution components in the same ecosystem.
FAQ
What is the Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 used for?
It is used to bundle several sensor or actuator signals into one central outgoing cable in industrial automation systems. This reduces field wiring complexity and supports cleaner machine layouts.
Is the Weidmüller SAI-08L-VPFC-3A-M08L-PNP-05U03 a PNP product?
Yes. The published technical specification identifies the wiring type as PNP, which makes it suitable for systems standardized around PNP sensor logic.
Does this Weidmüller product include a cable?
Yes. It is a fixed cable version supplied with a 5 meter PUR cable, which makes it suitable for preplanned installation routes and robust industrial use.
Why is PUR cable important in automation?
PUR cable is commonly chosen for industrial environments because it offers strong mechanical durability and works well where abrasion resistance and repeated movement are part of normal operation.
Does the unit provide visual diagnostics?
Yes. The model includes LED indication, which helps technicians identify power and signal status more quickly during setup or maintenance.
Where is this type of M8 distribution box commonly installed?
It is commonly installed on packaging machinery, conveyor lines, assembly stations, material handling systems, and modular machine frames where multiple field devices must be connected efficiently.
