Weidmüller 7760056329 DRI424024L Miniature Industrial Relay Guide
Compact relays continue to play a critical role in industrial automation, especially where control logic, signal multiplication, and electrical isolation are required in limited panel space. The Weidmüller 7760056329 DRI424024L miniature industrial relay is part of the D-SERIES and is designed for switching, amplifying, and multiplying digital signals with low electrical load. That makes it relevant for engineers looking for dependable 24 V DC industrial relays, DPDT relay solutions, and compact control relays for modern cabinets.
What the DRI424024L Is Designed to Do

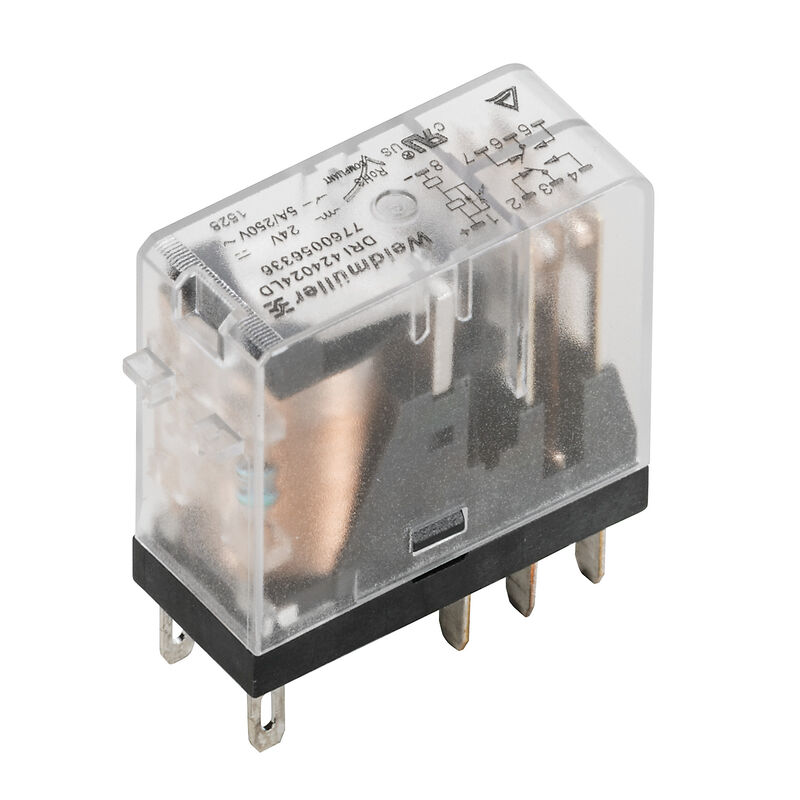

The Weidmüller DRI424024L relay is a miniature industrial relay with 2 changeover contacts using AgSnO contact material and a 24 V DC rated control voltage. It is intended for applications where a compact relay must handle interface-level switching tasks, distribute signals, or act as an intermediary between control and field layers. The D-SERIES platform is well known for offering high functionality in a small footprint, which is important when cabinet density is increasing.
According to the official product information and related product family references, this model is a 2 CO relay with LED. That LED function is practical because it gives technicians quick visual confirmation that the coil is energized.
Key Technical Points
The Weidmüller 7760056329 DRI424024L uses flat blade connections (2.5 mm x 0.5 mm), has IP20 protection, an impulse withstand voltage of 5 kV, and a dielectric strength of open contact of 1 kV eff / 1 min. These values matter because relays are not selected only by contact arrangement or coil voltage. Isolation strength and impulse behavior also influence suitability in industrial environments where electrical disturbances, switching transients, and compact layouts are common.
In broader technical references associated with this relay, the product is also described with a continuous current of 5 A. That places it in the category of compact signal and control relays rather than heavy power switching devices. This distinction is useful because it helps engineers match the relay to the correct task instead of overextending it into unsuitable loads.
Where This Relay Makes Sense
The Weidmüller DRI424024L miniature industrial relay is a good fit for control cabinets where 24 V DC logic dominates and space efficiency matters. Typical use cases include PLC output interfacing, status forwarding, control interlocks, signal separation, and low-load switching inside machine automation or building systems.
Because it is a socketable relay design, it also supports service-friendly maintenance workflows when paired with the correct base. That means replacement can be quicker than with hard-wired alternatives, especially in installations where downtime is costly.
LED Benefit in Daily Operation
The LED is more valuable than it first appears. During commissioning, it provides immediate visual confirmation that the relay coil is being energized. During fault-finding, it helps determine whether a problem originates in the control signal or in the switched side of the circuit. In other words, the Weidmüller 7760056329 DRI424024L relay supports both control function and practical diagnostics.
FAQ
What is the Weidmüller 7760056329 DRI424024L?
It is a miniature industrial relay in the D-SERIES with 2 changeover contacts and a 24 V DC control voltage, developed for switching, amplifying, and multiplying digital signals with low electrical load.
What contact arrangement does it use?
It uses 2 CO contacts, also commonly described as DPDT in general relay terminology.
Does this relay include an LED indicator?
Yes. The related official product family information identifies this model as a version with LED, which helps during commissioning and troubleshooting.
What is the rated current level?
The product is associated with a 5 A continuous current level, which suits compact control and interface tasks rather than heavy-duty power switching.
Why is the 24 V DC coil important?
Because 24 V DC is one of the most common control voltages in industrial automation. It makes the relay easy to integrate into PLC-based and DC control architectures.
Is this relay intended for high electrical loads?
It is designed for low electrical load signal and control tasks. Engineers should always match the relay to the actual load type and switching profile of the application.
For more information about Weidmüller, you can explore the wider relay portfolio and related interface products.
