Weidmüller 7760056097 DRM570024LT Relay Guide
In dense industrial cabinets, relay selection is rarely only about coil voltage. Engineers also look at contact flexibility, diagnostic support, and service access. The Weidmüller 7760056097 DRM570024LT relay belongs to the D-SERIES DRM family and is intended for switching, amplifying, and multiplying digital signals with low electrical load. For professionals looking for a Weidmüller DRM570024LT relay, 24 V DC 4 CO relay, or industrial relay with LED and test button, this model brings together several highly practical features.
What Is the DRM570024LT?

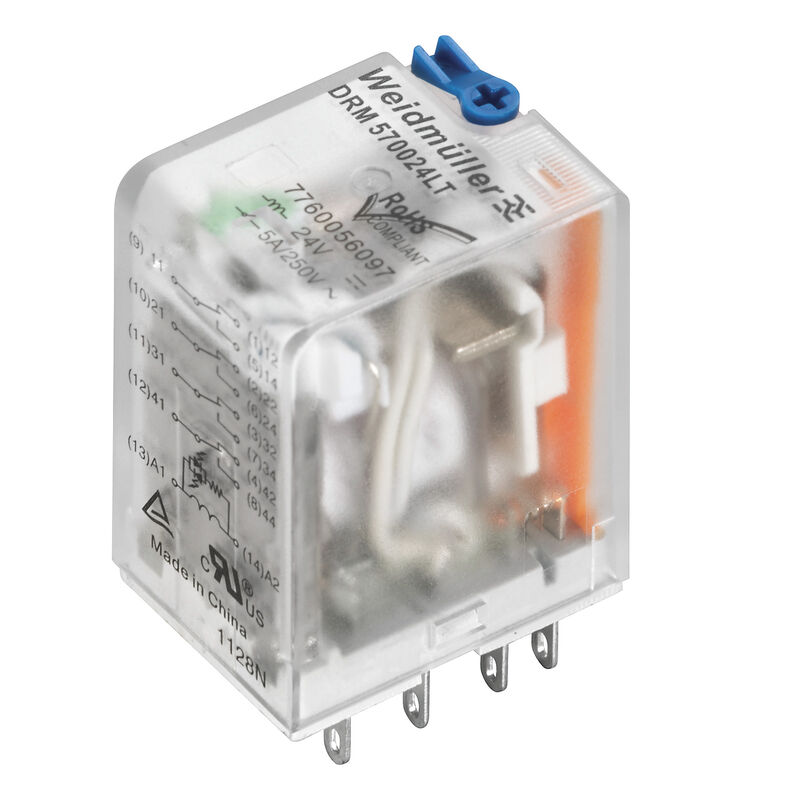

The Weidmüller DRM570024LT is a relay with 4 changeover contacts, AgNi flash gold-plated contacts, and a 24 V DC rated control voltage. It is associated with a continuous current of 5 A and a plug-in connection. One of the most useful details is that the model is identified with LED and test button, which gives the relay a strong maintenance and commissioning advantage.
This type of relay is especially suitable where one relay must influence several control paths while remaining easy to diagnose and manually test during setup.
Weidmüller 7760056097 Technical Features That Improve Usability
The Weidmüller 7760056097 relay is designed in a compact format for low electrical load switching tasks. The 4 CO arrangement gives designers much more flexibility than a single-contact solution, especially in interlocking, status distribution, and multi-path signal handling. Meanwhile, the 24 V DC coil matches common PLC and industrial control standards, making the relay easy to integrate into standard automation systems.
The combination of LED indication and a test button is especially valuable. The LED confirms coil activity visually, while the test button helps technicians verify switching behavior during commissioning or service without having to rely only on external control signals.
Where the DRM570024LT Fits Best
The Weidmüller DRM570024LT 24 V DC relay is well suited to machine control panels, interface assemblies, signal distribution tasks, and complex control logic where several changeover contacts are useful. It can also be a strong option in maintenance-sensitive environments because the extra diagnostic and manual test features make troubleshooting more efficient.
In many industrial settings, faster fault-finding can be more valuable than marginal component savings. That is one reason relays with integrated diagnostic convenience continue to be popular.
Why LED and Test Button Matter Together
A relay LED shows that the coil is energized. A test button goes one step further by allowing direct switching verification. Together, they give engineers and technicians a more transparent view of relay behavior. The Weidmüller 7760056097 DRM570024LT relay therefore supports both switching performance and better human interaction during operation and maintenance.
Weidmüller 7760056097 FAQ
What is the Weidmüller 7760056097 DRM570024LT?
It is a D-SERIES DRM relay with 4 changeover contacts, AgNi flash gold-plated contacts, 24 V DC rated control voltage, plug-in connection, LED, and test button.
What does 4 CO mean on this relay?
It means the relay has four changeover contacts, allowing one coil action to control several separate changeover switching paths.
Why is the LED useful?
The LED provides a clear visual indication that the coil is energized, helping with startup checks and troubleshooting.
What is the purpose of the test button?
The test button allows technicians to verify relay switching behavior manually during commissioning, diagnostics, or maintenance.
What control voltage does this relay use?
It uses 24 V DC, which is one of the most common control voltages in industrial automation.
Where is the DRM570024LT commonly used?
It is commonly used in machine panels, industrial control cabinets, interface circuits, and multi-path relay logic designs where diagnostics and service access matter.
For more information about Weidmüller, you can explore the broader D-SERIES relay platform and accessories.
