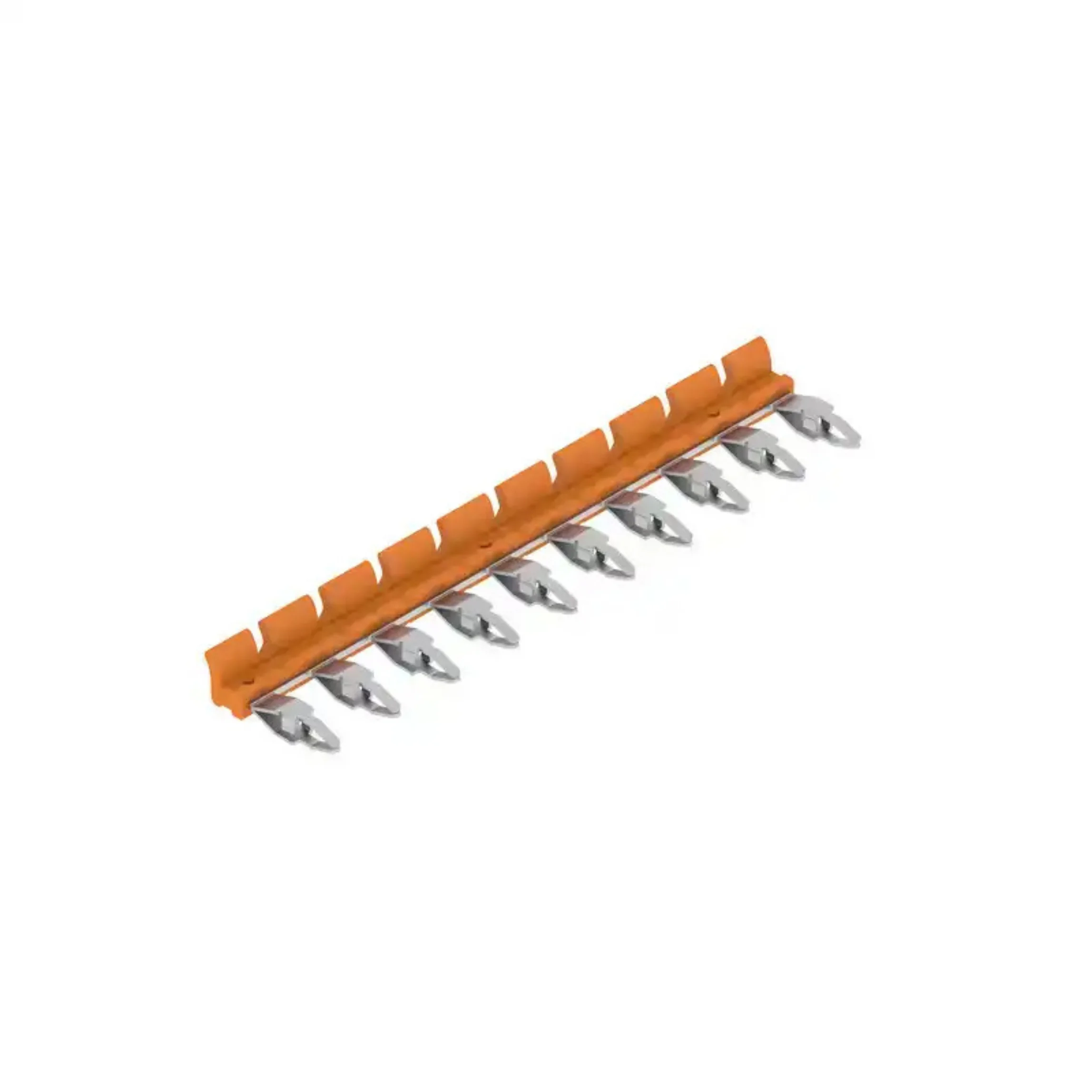

Weidmüller 2556370000 TCC 6.4/51 OR Cross-Connector Guide
The Weidmüller 2556370000 TCC 6.4/51 OR cross-connector is a compact but highly practical accessory for relay and terminal bridging tasks in industrial control systems. In many panel layouts, wiring efficiency and clarity are shaped not only by the main components but also by the small accessories that define how those components are linked together. The Weidmüller TCC 6.4/51 OR cross-connector is one of those accessories that can significantly improve assembly speed and cabinet organization.
What Is the Weidmüller 2556370000 TCC 6.4/51 OR?
The Weidmüller 2556370000 is a cross-connector used to bridge connections in relay or terminal-related applications. It belongs to the TERMSERIES compact accessory range and is designed to simplify commoning tasks across multiple points.
Instead of individually wiring repeated links, a cross-connector provides a faster and cleaner way to create shared electrical distribution across a row of compatible interfaces. This reduces manual work and supports more consistent panel assembly.
Technical Characteristics That Matter
The Weidmüller 2556370000 TCC 6.4/51 OR cross-connector is associated with a 6.4 mm pitch, 51 poles, 32 cross-connected terminals, 300 V rated voltage, and 17.5 A rated current. It is also described as touch-safe, insulated, and cut-to-length capable, which adds practical flexibility during assembly.
The orange color is not only a visual detail. In panel building, clear visual identification often helps technicians distinguish bridging elements faster during installation and service. The ability to cut the connector to the required length is also valuable because it allows panel builders to match the actual number of linked points without forcing compromise in layout.
Why Cross-Connectors Improve Panel Efficiency
The Weidmüller 2556370000 cross-connector supports a more efficient panel manufacturing process. Repetitive manual bridging can consume time, increase error risk, and make the finished installation harder to read. A standardized plug-in bridge streamlines that work and creates a cleaner visual structure.
For OEMs and panel workshops, this kind of accessory can contribute directly to productivity. For maintenance teams, it can make the logic of the distribution path easier to recognize during fault tracing or modification work.
Typical Applications
The Weidmüller TCC 6.4/51 OR cross-connector is often relevant in:
- Relay interface assemblies
- Terminal bridging tasks
- Common potential distribution
- Compact control cabinet layouts
- Serial machine panel production
- Industrial wiring structures that benefit from modular accessories
These applications share the same operational priority: faster and clearer electrical linking without unnecessary conductor handling.
Engineering Perspective
Before using the Weidmüller 2556370000 TCC 6.4/51 OR, engineers and panel builders usually confirm compatibility with the target interface system, required current capacity, number of linked points, insulation expectations, and preferred service accessibility. These checks ensure the accessory supports both the electrical and operational needs of the cabinet.
It is also worth viewing cross-connectors as part of a broader lean panel-building strategy. Standard accessories reduce variability, improve repeatability, and help create a more professional finished result.
FAQ
What is the purpose of the Weidmüller 2556370000 TCC 6.4/51 OR?
Its purpose is to bridge multiple compatible connection points more efficiently than individual wiring. This reduces assembly time and helps create a cleaner control cabinet layout.
Why is a cross-connector better than manual bridging?
A cross-connector is faster to install, more consistent, and easier to interpret visually. It also reduces the amount of repetitive wiring work required during panel assembly.
What does cut-to-length capability mean in practice?
It means the connector can be trimmed to suit the actual number of connection points needed in the installation. This adds flexibility and helps avoid wasted space or unnecessary excess material.
Where is this product commonly used?
It is commonly used in relay interface systems, terminal rows, compact panel assemblies, and control cabinets where commoning several points is part of the electrical design.
What should be checked before specifying this cross-connector?
Compatibility with the target terminal or relay system, current requirements, number of linked points, insulation needs, and service accessibility should all be checked before final specification.
