Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD M12 Connector Guide
The Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD M12 connector is designed for industrial environments where robust, field-configurable connectivity is essential. In machine building and industrial Ethernet installations, connectors are not just passive interfaces. They directly affect commissioning speed, serviceability, signal reliability, and long-term network stability. That is why a well-specified Weidmüller 1892120000 M12 connector can make a meaningful difference in practical automation projects.
What Is the Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD?

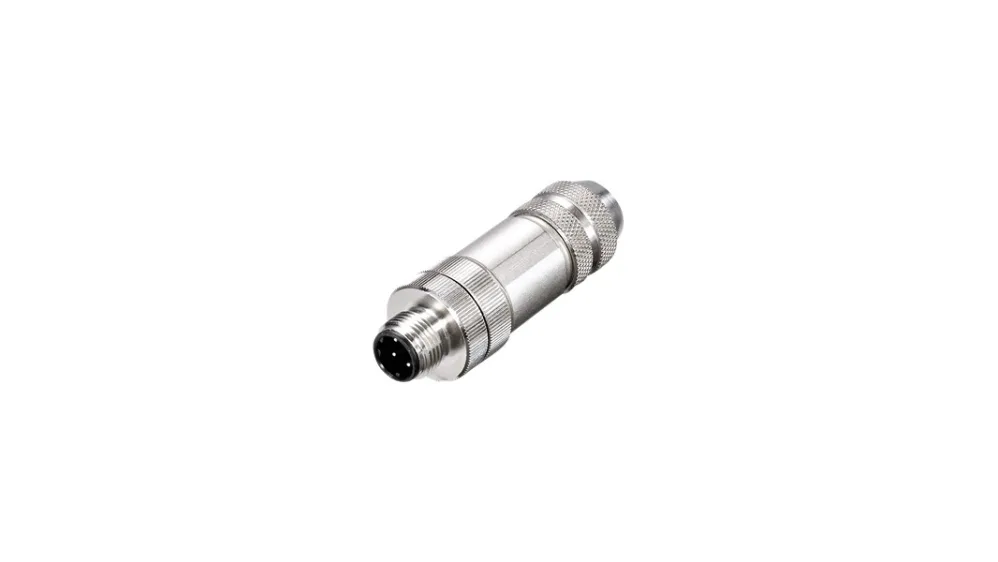

The Weidmüller 1892120000 is a field-attachable M12 connector built around a D-coded 4-pole design. This format is widely associated with industrial Ethernet and structured signal transmission in automation systems. In practice, a field-attachable connector gives installers more flexibility because cable assembly can be completed on site instead of relying only on pre-moulded cable sets.
That flexibility is valuable in retrofit work, machine modifications, and custom installations where cable lengths and routing paths are not always finalized at the earliest project stage. Instead of compromising with unsuitable cable assemblies, technicians can adapt the connection more precisely to the physical layout.
Why D-Coded M12 Connectors Matter
D-coded M12 connectivity remains highly relevant in industrial networking because it provides a compact and secure circular connection format that is better suited to demanding environments than many standard office-style Ethernet interfaces. The Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD connector aligns with that requirement by supporting stable mechanical retention and a connector concept built for field reliability.
In industrial settings, vibration, limited installation space, moisture exposure, and repetitive maintenance access all place stress on connection points. A D-coded M12 connector helps engineers address these conditions with a more resilient physical interface than improvised alternatives.
Technical Characteristics in Practical Terms
The Weidmüller 1892120000 M12 connector is associated with 4 poles, D-coding, IP67 protection, a male contact design, screw termination, and support for cable diameters in a practical industrial range. These details matter because they influence how the connector behaves during installation and over the operating life of the machine.
IP67 protection is especially important when the connector is exposed to dust, humidity, washdown conditions, or general industrial contamination. The screw termination concept also remains valuable because it offers a familiar, serviceable connection method for many field technicians and panel integrators.
Gold-plated contact surfaces and a rugged housing concept further contribute to predictable connection performance. These are not marketing-level details. In real field use, contact quality and enclosure integrity are major factors in maintaining communication consistency.
Typical Application Areas
The Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD field-attachable connector is commonly considered for:
- Industrial Ethernet device connections
- Machine communication networks
- PROFINET-adjacent field connectivity
- Retrofit and upgrade projects
- Custom machine cable assembly
- Harsh-environment M12 network connections
These applications benefit from a connector that combines compact size with mechanical security and field assembly flexibility. In many cases, that combination improves both installation quality and later maintenance efficiency.
Engineering Considerations Before Specification
Before selecting the Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD connector, engineers usually review coding compatibility, cable diameter, conductor cross-section, shielding needs, environmental exposure, and the expected network role of the connected device. These checks are important because even a strong connector can underperform if it is not matched carefully to the installation context.
It is also worth thinking about lifecycle standardization. When machine builders consistently use field-attachable industrial connectors from a recognized system family, spare part handling and maintenance routines often become simpler and more predictable.
FAQ
What type of connector is the Weidmüller 1892120000 SAISM-4/8S-M12-4P D-COD?
It is a field-attachable M12 connector with a D-coded 4-pole layout, intended for industrial communication and signal applications where robust circular connectivity is preferred.
Why is D-coding important in an M12 connector?
D-coding is important because it helps define the connector’s intended communication role and compatibility within industrial Ethernet-style applications, reducing the risk of mismatched network connections.
Why choose a field-attachable connector instead of a pre-assembled cable?
A field-attachable connector provides more flexibility during installation, especially where cable lengths, routing conditions, or retrofit constraints make fixed assemblies less practical.
Where is this connector commonly used?
It is commonly used in machine automation, industrial networking, decentralized communication points, and environments where compact, sealed, and serviceable M12 connectivity is needed.
What should engineers check before specifying this connector?
They should verify coding compatibility, conductor size, cable diameter, shielding requirements, mechanical space, and environmental exposure to ensure the connector fits both electrically and physically.
