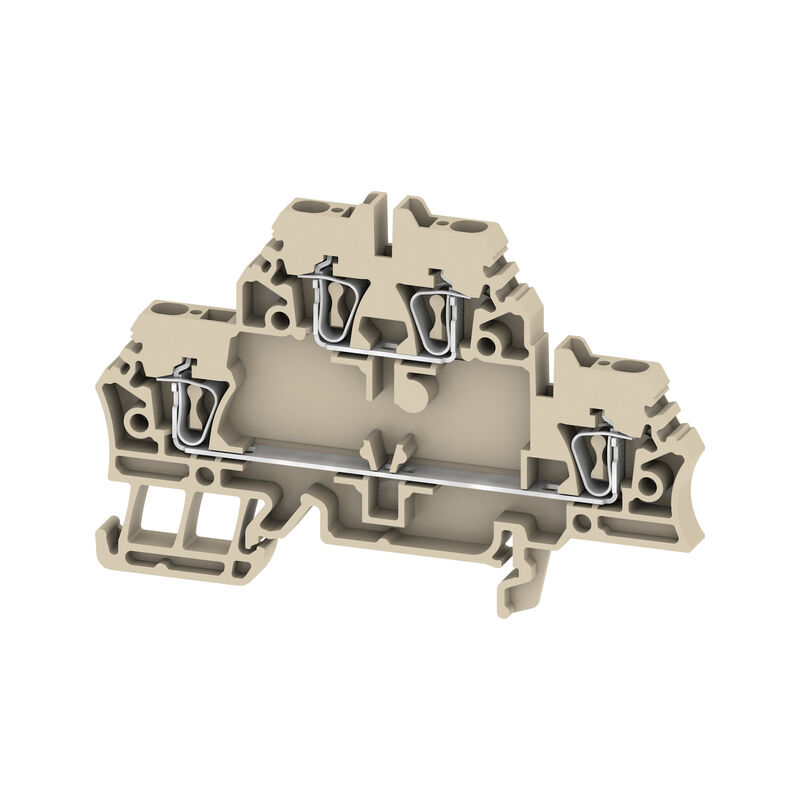

Weidmüller 1674300000 ZDK 2.5 Double-Level Terminal Block Guide
The Weidmüller 1674300000 ZDK 2.5 double-level terminal block is designed for compact DIN rail wiring where space efficiency and secure conductor connection are both critical. It belongs to Weidmüller’s modular terminal range and is built as a multi-tier terminal for connecting or joining conductors with a permanently secure contact system. The product is associated with a 2.5 mm² rated cross-section, which makes it highly relevant in control circuits, signal distribution, and compact cabinet layouts.
What the Weidmüller ZDK 2.5 Is Designed to Do
The Weidmüller ZDK 2.5 terminal block is intended for applications where more wiring points are needed without expanding the DIN rail footprint too aggressively. The double-level design is the key advantage. Instead of using a wider single-tier terminal arrangement, engineers can stack connection levels vertically and preserve cabinet space for other components. In modern automation panels, that creates a cleaner architecture and supports more efficient conductor routing.
The manufacturer describes the product as a multi-tier modular terminal with secure contact behavior and a construction that uses hardened steel to withstand mechanical forces. That matters in real installations because spring-based or tension-style terminal systems are frequently exposed to vibration, repeated servicing, and temperature variation. A mechanically stable design helps maintain reliable electrical continuity over time.
Weidmüller 1674300000 Technical Characteristics That Matter in Practice
The Weidmüller 1674300000 ZDK 2.5 double-level terminal block is built for TS 35 DIN rail environments and is categorized as a modular terminal with several levels. Product information linked to this order code identifies it as part of the ZDK family and highlights its 2.5 mm² class. The related technical material also shows UL-oriented values including conductor size references and current/voltage data used for approval contexts.
In practical engineering terms, the most important feature is not only the nominal cross-section but the layout efficiency. A double-level terminal helps reduce strip length, improves organization in dense assemblies, and makes it easier to separate control and signal paths within the same terminal group. That is especially useful in machine building, compact PLC cabinets, and building automation panels where every millimeter of rail space matters.
Why Double-Level Terminals Are Popular
The Weidmüller 1674300000 terminal block fits a broader trend in industrial design: more functionality inside smaller enclosures. Double-level terminals are often chosen when designers want to increase connection density without sacrificing a structured terminal layout. Compared with improvised space-saving solutions, a dedicated multi-tier terminal keeps the installation more legible and easier to maintain.
Another advantage is documentation clarity. When the cabinet is planned around a proper terminal system, the electrical drawings, numbering logic, and service workflow usually become much easier to manage. That is one reason the Weidmüller ZDK 2.5 double-level DIN rail terminal block is often selected for professional panel building rather than basic ad hoc wiring.
For more information about Weidmüller, it is useful to review the wider terminal ecosystem, including end plates, markers, and cross-connectors that shape the full terminal strip design.
Weidmüller 1674300000 FAQ
What is the main benefit of the Weidmüller 1674300000 ZDK 2.5?
The main benefit is connection density. The double-level structure allows more wiring points in a smaller terminal strip footprint, which is highly useful in compact control cabinets and machine panels. It supports a cleaner, more space-efficient installation without giving up a structured terminal layout.
Is the ZDK 2.5 suitable for standard DIN rail installations?
Yes. The product is part of Weidmüller’s modular DIN rail terminal family and is intended for standard rail-based panel construction. This makes it suitable for organized terminal strips in industrial and building automation environments.
Why does the 2.5 mm² class matter?
The 2.5 mm² class indicates the rated conductor size category associated with the terminal. This matters because conductor range directly affects which circuits the terminal can support and how it fits into the broader wiring concept of the cabinet.
Where is a double-level terminal block most useful?
It is most useful in dense terminal strips, PLC cabinets, compact machine panels, and control systems where available DIN rail space is limited but the number of required connections is still high. In those cases, a double-level product can improve both space use and wiring order.
