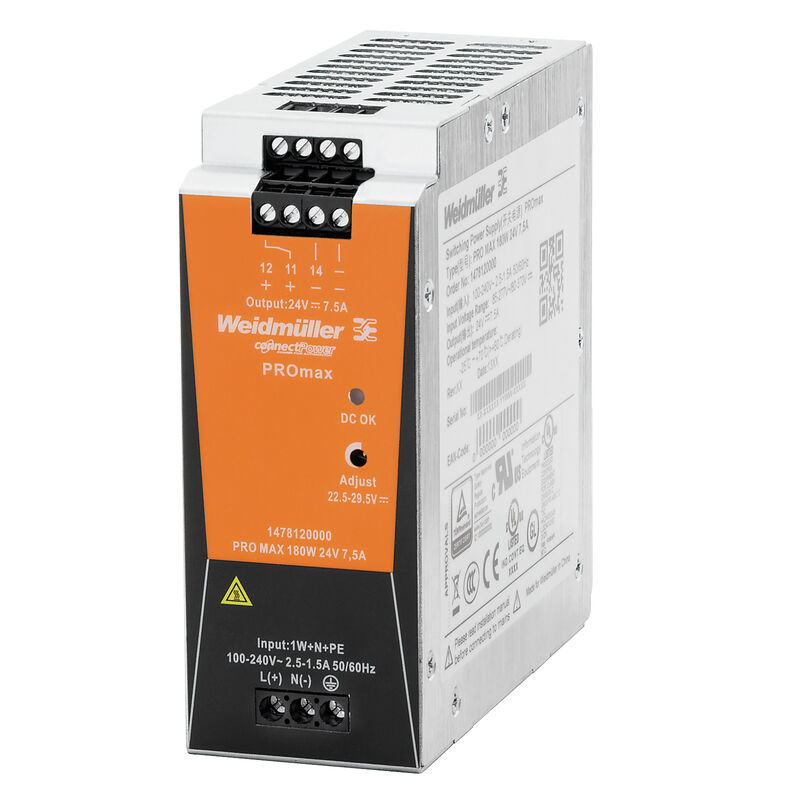

Weidmüller 1478120000 PRO MAX 180W 24V 7.5A Power Supply
The Weidmüller 1478120000 PRO MAX 180W 24V 7.5A Power Supply is designed to deliver stable 24 V DC power for industrial automation systems, control cabinets and machine applications with moderate-to-high current requirements. Its rated output power of 180 W and output current of 7.5 A make it suitable for supplying compatible PLC modules, remote I/O systems, sensors, interface relays and industrial communication equipment.
System integrators, machine manufacturers, maintenance departments and technical purchasing teams can contact Emaconn to request current pricing, check availability, obtain estimated lead-time information and confirm whether this power supply matches their electrical and mechanical requirements.
Power Capacity for Demanding Control Circuits
Industrial control systems often contain multiple 24 V DC devices operating from a common power network. As the number of connected components increases, selecting a power supply with sufficient continuous capacity and operating reserve becomes increasingly important.
The Weidmüller 1478120000 provides a rated output current of 7.5 A. This capacity places the model between standard medium-load supplies and higher-output units used in large automation cabinets. It can be considered when a 5 A supply does not offer enough reserve but a 10 A or 20 A unit would provide unnecessary capacity.
Product selection should be based on a documented load calculation. The current consumption of all connected devices must be evaluated together with temporary start-up demand, switching peaks and potential future system expansion.
Suitable Industrial Applications
The Weidmüller 1478120000 may be evaluated for machine control systems, production equipment and distributed automation installations. It can support applications where stable DC power is required for several control and field-level components.
- Automated assembly machinery
- Packaging and processing equipment
- PLC and remote I/O installations
- Conveyor and material-handling systems
- Industrial sensor networks
- Interface relay and signal circuits
- Robotic cell control panels
- Machine retrofit and upgrade projects
The application category alone does not determine suitability. Two machines performing similar tasks may require different power supply ratings because of variations in connected devices, operating cycles, cable lengths and environmental conditions.
Load Calculation and Product Selection
Continuous Current Requirement
The continuous current consumption of every connected 24 V DC component should be added together. The calculated value should remain below the rated 7.5 A output under normal operating conditions.
An appropriate operating reserve should also be included. This reserve can help accommodate temporary load changes, future machine modifications and variations in actual device consumption.
Start-Up and Peak Current
Some industrial components draw more current during start-up or switching than during normal operation. Solenoid valves, contactors, relays and electronic devices with capacitive inputs can create temporary current peaks.
These loads should be assessed separately because a system with acceptable continuous consumption may still experience voltage instability during simultaneous switching events.
System Expansion
Future additions such as sensors, communication modules or remote I/O devices can increase total current demand. Engineers should evaluate realistic expansion plans without excessively oversizing the power supply.
Compatibility with Automation Equipment
The Weidmüller 1478120000 can be considered for compatible PLC systems, industrial controllers, sensors, interface modules and communication equipment operating from a 24 V DC supply.
Before connecting multiple devices, verify their combined current demand, start-up behaviour and voltage tolerances. Sensitive communication and control equipment may also benefit from appropriate circuit separation and protected DC distribution branches.
When replacing an existing power supply, voltage and current ratings are only part of the compatibility assessment. The following factors should also be compared:
- Physical dimensions
- DIN rail mounting requirements
- Terminal positions and conductor capacity
- Input voltage characteristics
- Diagnostic and signalling functions
- Required industrial approvals
- Environmental operating conditions
Control Panel Integration
The power supply should be installed by qualified electrical personnel in accordance with current manufacturer instructions and applicable industrial safety standards. Adequate DIN rail space and ventilation clearance should be included in the panel design.
Input and output conductors must be sized according to the expected current and cable length. Higher-current DC branches may require larger conductor cross-sections to minimise voltage drop and excessive heating.
AC input wiring should be separated from sensitive signal and communication cables where practical. Proper cable routing can reduce electrical interference and make future maintenance easier.
Commissioning Procedures
Before energising connected automation equipment, technicians should verify the AC input connections, protective earth arrangement and DC output polarity. The output voltage should first be measured without the complete load connected.
The system should then be tested under representative operating conditions. Measuring the output voltage while actuators, relays and control equipment are active can help identify excessive voltage drop or unexpected current demand.
All terminal connections should be inspected after commissioning. Clear labelling of input, output and protected distribution branches can improve maintenance efficiency and reduce troubleshooting time.
Maintenance and Reliability Planning
Industrial power supplies usually require limited routine maintenance, but periodic inspection remains important. Maintenance personnel should check terminal tightness, ventilation openings, cabinet temperature and visible contamination.
Unexpected modifications to the machine should also be documented. Adding new field devices without reviewing the available power capacity can reduce operating reserve and affect long-term reliability.
For critical production systems, keeping a verified replacement power supply in the spare-parts inventory may help minimise downtime. The stored model should be checked periodically to confirm that it remains suitable for the installed system.
Source the Weidmüller 1478120000 from Emaconn
Emaconn supports international procurement of the Weidmüller 1478120000 PRO MAX 180W 24V 7.5A Power Supply for new automation projects, machine production, maintenance requirements and spare-parts planning.
Customers can request updated pricing, stock availability, estimated delivery time and a commercial quotation according to the required quantity and delivery location. Project-based purchases and scheduled procurement requirements can also be evaluated.
For technical product selection, customers may share the existing power supply reference, total connected load, cabinet conditions and application details. This information can help determine whether the 7.5 A model or another PRO MAX output rating is more suitable.
Additional industrial power supplies and control cabinet components can be reviewed on the Emaconn Weidmüller product page.
Conclusion
The Weidmüller 1478120000 PRO MAX 180W 24V 7.5A Power Supply provides regulated DC power for industrial automation systems with moderate-to-high load requirements. Its suitability depends on continuous current demand, temporary load peaks, conductor sizing, cabinet temperature and system compatibility.
Contact Emaconn to request current pricing, check availability, obtain a project quotation or compare this model with alternative Weidmüller power supply ratings.
Frequently Asked Questions
What type of product is the Weidmüller 1478120000?
It is a switched-mode industrial power supply designed to provide regulated 24 V DC power for automation equipment.
What is the rated output current?
The Weidmüller 1478120000 has a rated output current of 7.5 A.
What is the rated output power?
The product belongs to the 180 W power class.
Which applications can use this power supply?
It may be used in compatible machine control panels, PLC systems, remote I/O installations and industrial sensor circuits.
Can it supply PLC modules and sensors together?
Yes, provided their combined continuous and peak current demand remains within the available output capacity.
Why should temporary current peaks be calculated?
Relays, contactors, valves and capacitive devices may draw additional current during start-up or switching.
Can this product replace another 24 V 7.5 A supply?
Possibly, but dimensions, terminals, input requirements, mounting method, approvals and diagnostic functions must also be verified.
How can current pricing be obtained?
Provide the exact part number, required quantity and delivery destination to request an updated commercial quotation.
How can availability and lead time be checked?
Stock status and estimated delivery time should be confirmed at the time of enquiry because supply conditions may change.
Can a higher-capacity model be evaluated?
Yes. Application and load information can be reviewed to determine whether a 10 A or 20 A PRO MAX model is more appropriate.
