Weidmüller 1167200000 SK DEMO CH20M17 Enclosure Set Technical Overview

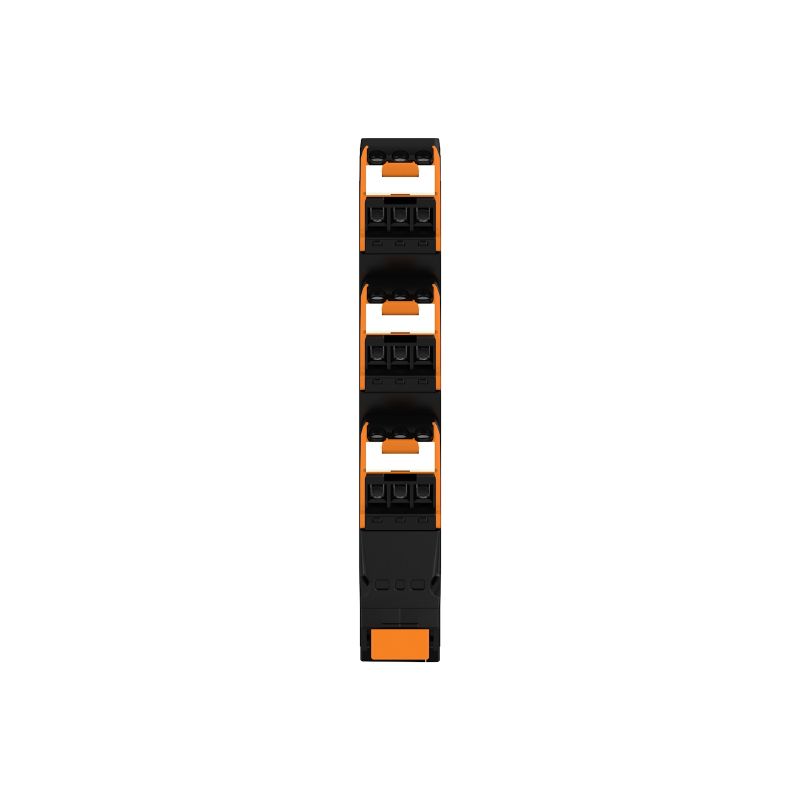

The Weidmüller 1167200000 SK DEMO CH20M17 enclosure set is a modular DIN rail housing sample designed for product developers working on compact industrial electronics. In control cabinet engineering, enclosure decisions shape much more than appearance. They affect PCB geometry, interface placement, cable access, maintenance convenience, and the way a finished module fits into a wider automation system. That is why a sample enclosure is often part of a serious development process rather than a secondary purchase.
Understanding the Role of the Weidmüller SK DEMO CH20M17
The Weidmüller SK DEMO CH20M17 sample kit is supplied as a predefined assembly with the required components for evaluation. It belongs to the CH20M modular housing family and is intended for industrial electronics mounted on DIN rail. Manufacturer data also points to a 2.5 mm² clamping range, which is useful when considering terminal-side conductor handling and overall design compatibility.
In practical terms, the Weidmüller 1167200000 modular enclosure set gives engineers a realistic basis for testing fit, assembly logic, and front-side accessibility. Rather than estimating enclosure suitability from drawings alone, teams can physically assess how the housing concept behaves in a cabinet-oriented environment.
Why CH20M17 Matters in Cabinet-Based Electronics
The CH20M series is built for electronics that need a structured and scalable DIN rail housing concept. That makes it relevant in machine building, building automation, signal conditioning, and compact control modules. A product like the Weidmüller 1167200000 SK DEMO CH20M17 enclosure set is especially useful where designers need a housing solution that balances compact dimensions with mechanical clarity and installation convenience.
Third-party product material associated with this variant highlights a 17.5 mm housing format, which is a familiar size in cabinet engineering because it fits well into dense rows of rail-mounted devices. For development teams, that size category is often selected when panel space is limited but clear module separation is still required.
Technical Points That Influence Design Decisions
When engineers evaluate the Weidmüller SK DEMO CH20M17 modular housing sample, they usually examine several factors. One is the relationship between housing dimensions and PCB layout. Another is how easily the enclosure can support connection technology and labeling in a real installation. A third is service access: can the finished device be wired, inspected, or replaced without disturbing surrounding components?
The manufacturer notes that circuit board contour data and restricted zone information are available through related downloads. That matters because enclosure selection is closely tied to board design discipline. In industrial product development, even a minor mismatch between housing geometry and PCB assumptions can trigger redesign work, connector relocation, or mechanical compromise. Access to contour and interface information supports a more reliable design path.
The modular nature of the CH20M family is also important. A modular housing platform can help standardize development processes across multiple device variants. If a company is building several interface modules or compact controller subassemblies, a common enclosure strategy can streamline documentation, installation habits, and service procedures.
Typical Applications for the Weidmüller 1167200000 Enclosure Set
The Weidmüller 1167200000 SK DEMO CH20M17 enclosure set is suitable for concept development in signal conversion, compact interface electronics, monitoring modules, and custom industrial I/O companion boards. These are all scenarios where DIN rail form factor, accessible wiring, and PCB-housing coordination matter more than generic packaging.
It is particularly useful when an engineering team is still deciding how the final device should be arranged on the rail. A housing sample lets the team assess spacing, visibility, cable approach, and maintenance practicality long before the first full product batch is built.
For more information about Weidmüller, reviewing the brand’s broader enclosure and connection portfolio can help clarify how this housing family fits into modern cabinet design.
FAQ
What is the main purpose of the Weidmüller 1167200000 SK DEMO CH20M17?
The main purpose of the Weidmüller 1167200000 SK DEMO CH20M17 is to support the evaluation of a modular DIN rail housing concept. It allows engineers, panel designers, and developers to assess enclosure suitability before locking down PCB and interface decisions. This can improve design efficiency and reduce mechanical risk during product development.
Is the CH20M17 only relevant for new product design?
No. While it is highly useful during new product development, it can also support redesign, migration, or standardization projects. For example, if an older control cabinet module is being modernized, a housing sample can help determine whether a more structured and modular enclosure concept would improve layout quality, servicing, or internal consistency across product families.
Why does PCB contour information matter so much with this enclosure?
PCB contour information matters because enclosure success depends on more than nominal dimensions. Connector position, board edge shape, restricted zones, and front-access geometry all influence whether the housing can be integrated cleanly. The manufacturer’s reference to circuit board contour resources confirms that this product is meant to be used in a disciplined electronics design workflow.
What type of projects can benefit from the Weidmüller SK DEMO CH20M17 enclosure set?
Projects involving industrial interface electronics, compact controllers, building automation modules, signal processing units, and rail-mounted monitoring electronics can all benefit. The enclosure set helps teams verify whether the mechanical platform matches the installation environment, the internal electronics concept, and the maintenance expectations of the final application.
