Weidmüller 1009070000 ZP 2.5/1AN ZA BL Connector Overview

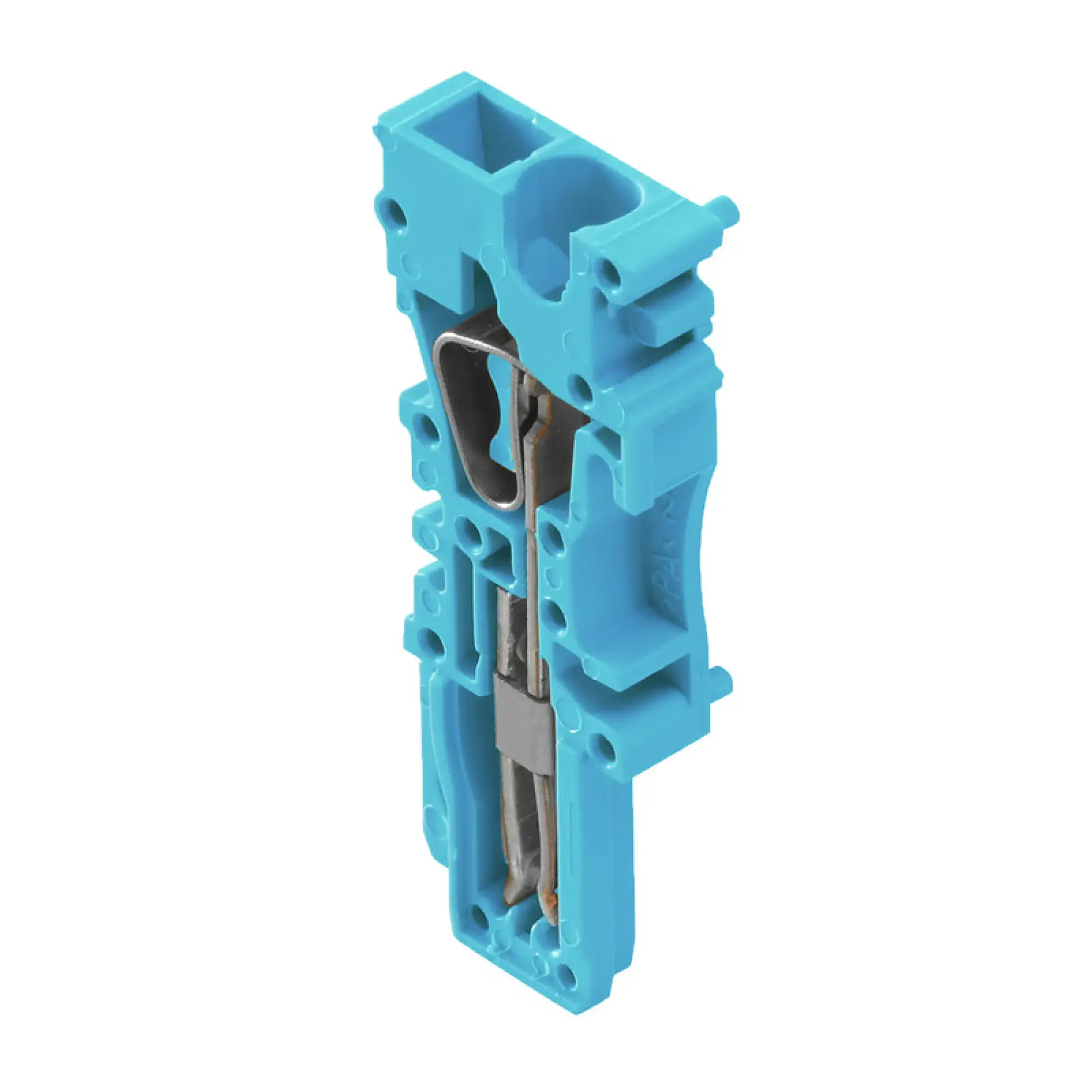

The Weidmüller 1009070000 ZP 2.5/1AN ZA BL plug-in connector is a single-pole Z-series accessory intended for direct mounting in terminal block systems. For engineers working with existing equipment, this part number is particularly important because the product page clearly marks it as discontinued. In industrial maintenance and procurement planning, that immediately changes how the part should be evaluated.
The product is listed as a Z-series, plug-in connector, direct mounting version with dimensions of approximately 41 mm depth, 16 mm height, and 5 mm width. The published product page also states discontinued status and a last order date of 31.12.2025. Family-level data associated with comparable single-pole ZP 2.5 variants includes 0.13 mm² to 4 mm² conductor range, AWG 26 to 12, and a performance profile built around 500 V rated voltage and 24 A nominal current.
What the Part Is Designed For
The Weidmüller 1009070000 connector is intended for the additional assembly of terminal blocks. This type of accessory helps keep terminal systems modular and easy to expand. In practical cabinet work, that supports both assembly efficiency and easier service access.
Single-pole terminal accessories are often chosen where each circuit needs to remain separate and clearly manageable. That makes them a strong fit for structured terminal arrays and service-conscious cabinet design.
Technical and Dimensional Considerations
The published dimensions of 41 mm depth, 16 mm height, and 5 mm width are especially useful in replacement work. In dense control cabinets, exact physical fit can matter just as much as nominal voltage and current ratings. The compact size of the Weidmüller ZP 2.5/1AN ZA BL helps explain why it appears in tightly organized terminal layouts.
Comparable family pages indicate conductor support from 0.13 mm² to 4 mm², AWG 26 to 12, and family-level values such as 500 V rated voltage and 24 A nominal current. Those specifications make the connector relevant in serious industrial terminal systems rather than only light-duty arrangements.
Why the Discontinued Status Is Important
The discontinued status of the Weidmüller 1009070000 Z-series plug-in connector means it should be approached carefully in any project that depends on long-term availability. For installed equipment, however, the part remains highly relevant because documentation, spare part mapping, and retrofit planning still require exact historical references.
The listed last order date of 31 December 2025 gives users a concrete planning point. That is especially helpful for maintenance teams that still support cabinets built around older accessory variants.
Where This Part Still Adds Value
The connector remains useful in service documentation, spare part management, and replacement analysis for terminal systems already in operation. It can also serve as a precise reference when engineers need to identify active alternatives with similar geometry and family characteristics.
Weidmüller 1009070000 For more information about Weidmüller, comparing currently active Z-series single-pole accessories is usually the best next step when a substitute is required.
Weidmüller 1009070000 FAQ
What is the Weidmüller 1009070000 ZP 2.5/1AN ZA BL?
It is a single-pole Z-series plug-in connector for direct mounting and the additional assembly of terminal blocks.
Is the Weidmüller 1009070000 discontinued?
Yes. The product page marks it as discontinued and lists a last order date of 31 December 2025.
What dimensions are listed for this product?
The published dimensions are approximately 41 mm depth, 16 mm height, and 5 mm width.
Why does discontinuation matter in industrial components?
It affects procurement strategy, spare part planning, retrofit decisions, and the suitability of the part for new long-term designs.
What conductor sizes are associated with the family?
Comparable family data shows support from 0.13 mm² to 4 mm² and AWG 26 to 12.
Where is this connector still useful today?
It is most useful in installed-base support, technical documentation, and exact replacement analysis for legacy terminal systems.
