Weidmüller 1007860000 ZP 2.5/2AN/QV ZA GN Technical Guide

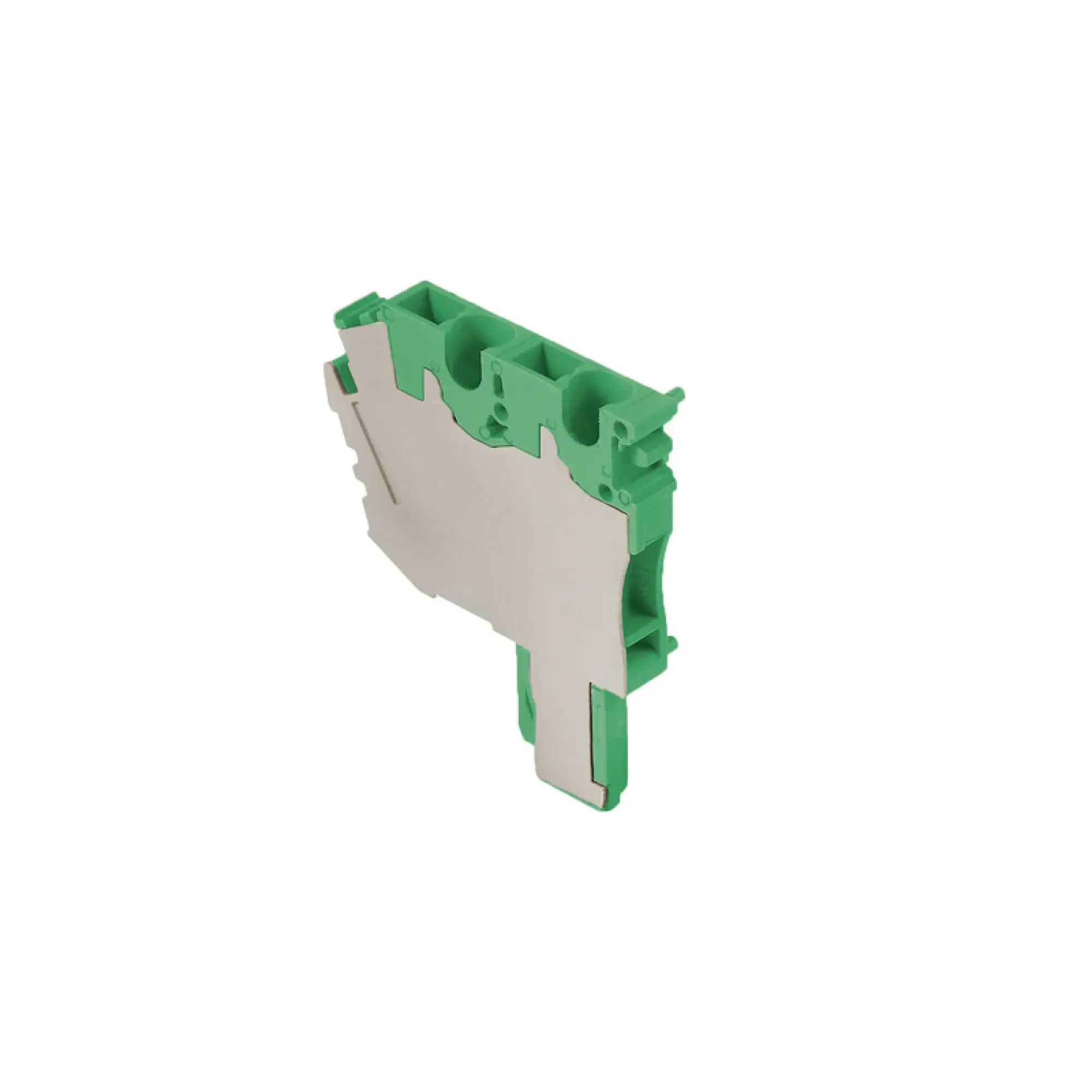

The Weidmüller 1007860000 ZP 2.5/2AN/QV ZA GN plug-in connector is a green Z-series terminal accessory created for direct mounting and fast integration into terminal block assemblies. In industrial panel engineering, users looking for a Weidmüller Z-series plug-in connector often prioritize electrical rating consistency, compact dimensions, and installation efficiency. This part number addresses exactly that combination.
The product is listed as a Z-series plug-in connector for direct mounting with dimensions of 41 mm depth, 36.5 mm height, and 10.2 mm width. Technical references show a 2.5 mm² rated cross-section, 500 V rated voltage, 690 V maximum pluggable system voltage, and 24 A nominal current. Additional published values include 1.33 mΩ volume resistance and 0.77 W power loss, while the housing material is Wemid with UL 94 V-0 flammability.
What Makes the 1007860000 Relevant
The Weidmüller 1007860000 ZP 2.5/2AN/QV ZA GN is useful in terminal block architectures where fast accessory assembly is preferred over more time-consuming screwed methods. In large panel builds, even small reductions in repetitive installation time can materially improve workflow efficiency and reduce wiring complexity.
This connector should therefore be understood not only as a technical component, but also as a process-oriented installation accessory within the broader Z-series ecosystem.
Electrical Data in Practical Terms
The published figures of 500 V and 24 A indicate that the connector is intended for genuine terminal-system duty rather than very light auxiliary use. The broader system voltage figure of 690 V is especially relevant for engineers checking compatibility inside established terminal block platforms.
The listed 1.33 mΩ volume resistance and 0.77 W power loss are also helpful for technical evaluation. These values provide a more complete picture of behavior under load than simple voltage and current figures alone.
Material, Dimensions, and Thermal Range
The compact overall dimensions make the Weidmüller 1007860000 green plug-in connector suitable for dense cabinet designs. At the same time, the use of Wemid and a UL 94 V-0 rating supports typical industrial panel expectations for insulation and flammability performance.
Published temperature information includes -25°C to 55°C storage temperature, -50°C to 75°C ambient conditions, and continuous operation up to 120°C. For terminal accessories that may remain installed for years, this range is an important part of reliability evaluation.
Use in Structured Panel Systems
The Weidmüller ZP 2.5/2AN/QV ZA GN connector is particularly relevant in organized terminal layouts where accessory standardization, fast assembly, and visual consistency matter. The green housing can contribute to coding strategies, while the direct-mounting format supports consistent installation across larger terminal groups.
Weidmüller 1007860000 For more information about Weidmüller, comparing terminal accessories within the same Z-series family is the most reliable way to confirm fit and function.
Weidmüller 1007860000 FAQ
What is the Weidmüller 1007860000 ZP 2.5/2AN/QV ZA GN?
It is a green Z-series plug-in connector for direct mounting in terminal block systems.
What are the main electrical ratings?
The published values include a 2.5 mm² rated cross-section, 500 V rated voltage, 690 V maximum system voltage, and 24 A nominal current.
What are the product dimensions?
The connector is listed at 41 mm depth, 36.5 mm height, and 10.2 mm width.
What material is used?
The base material is Wemid, and the flammability rating is UL 94 V-0.
Why are resistance and power loss values useful?
They provide additional engineering insight into electrical performance, helping users evaluate behavior under load and within the wider terminal system context.
Where is this connector most useful?
It is most useful in industrial control panels and modular terminal block systems where quick installation and structured accessory integration are priorities.
