Weidmüller 1007810000 ZP 2.5/2AN/QV Plug-In Connector Guide

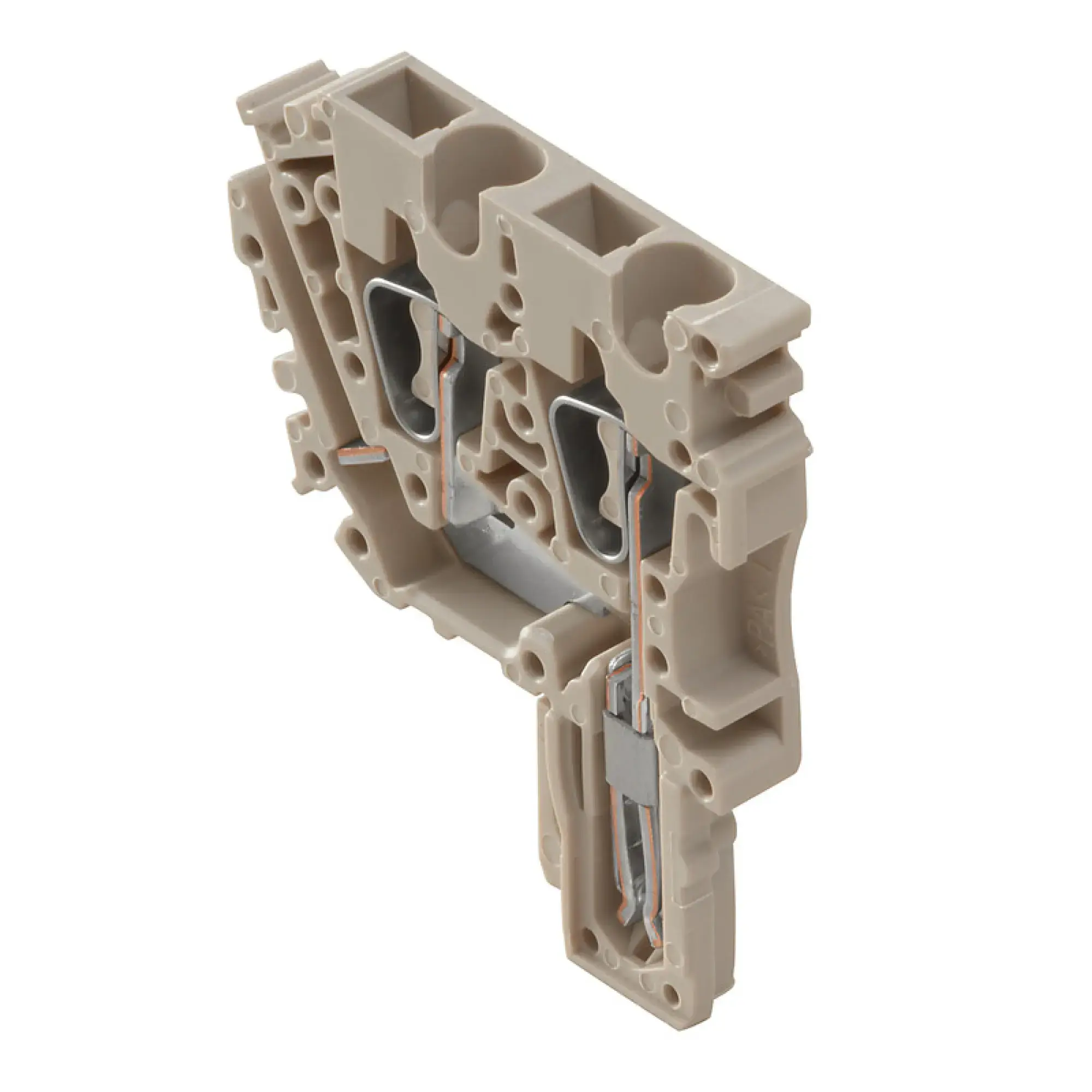

The Weidmüller 1007810000 ZP 2.5/2AN/QV plug-in connector is part of the Z-series terminal ecosystem and is designed for additional assembly on terminal blocks where quick plug-in functionality is required. In industrial panel building and terminal block systems, users often search for a Weidmüller Z-series plug-in connector that offers predictable ratings, easy mounting, and compatibility with structured wiring strategies. This model fits that role well.
The connector is described as a Z-series plug-in connector for direct mounting. Key published values include a rated cross-section of 2.5 mm², rated voltage of 500 V, maximum voltage of clamp support and pluggable system of 690 V, and a nominal current of 24 A. The unit has dimensions of 41 mm depth, 36.5 mm height, and 10.2 mm width, with a dark beige Wemid body and UL 94 V-0 flammability rating.
What the Weidmüller ZP 2.5/2AN/QV Does
The Weidmüller 1007810000 ZP 2.5/2AN/QV connector is not a generic loose connector. It is intended to extend or complement terminal block assemblies, making it useful in organized panel wiring where modularity and fast installation matter. Plug-in connection concepts like this help reduce installation effort compared with more time-consuming screwed alternatives.
In terminal systems, efficiency often depends on repeatable accessory integration. This connector supports that requirement by offering a simple plug-in format that aligns with structured Z-series installation logic.
Electrical and Mechanical Profile
The most important electrical reference points are the 500 V rated voltage and 24 A nominal current. For many industrial control and distribution tasks inside terminal assemblies, that provides a solid performance level in a compact accessory format. The listed volume resistance of 1.33 mΩ and power loss of 0.77 W add useful engineering context when thermal and electrical behavior must be considered.
Mechanically, the product is compact enough to integrate cleanly in terminal systems while still supporting practical handling. The use of Wemid as the base material and a V-0 flammability class reinforces its orientation toward reliable panel applications.
Thermal and Material Characteristics
The published operating profile includes storage temperatures from -25°C to 55°C, ambient conditions from -50°C to 75°C, and continuous operating temperatures up to 120°C. That is significant because terminal accessories must often survive not only electrical loading but also cabinet heat, seasonal conditions, and long-term thermal stress.
The dark beige color can also be relevant in panel organization strategies, especially where installers maintain visual differentiation among connector or terminal accessories.
Why This Connector Matters in Panel Design
The Weidmüller 1007810000 Z-series plug-in connector helps simplify assembly on terminal blocks and supports faster installation compared with more traditional screwed solutions. For panel builders, this matters because accessory handling efficiency has a direct effect on labor time, consistency, and serviceability. A component like this can therefore contribute to overall system quality even though it is physically small.
Weidmüller 1007810000 For more information about Weidmüller, reviewing the wider Z-series ecosystem is the most practical way to confirm terminal and accessory compatibility.
Weidmüller 1007810000 FAQ
What is the Weidmüller 1007810000 ZP 2.5/2AN/QV?
It is a Z-series plug-in connector intended for direct mounting in terminal block assemblies.
Weidmüller 1007810000 What is the rated cross-section of this connector?
The product is rated for a 2.5 mm² cross-section, which is reflected directly in the part designation and technical data.
What are the main electrical ratings?
The published values include a 500 V rated voltage, 690 V maximum system voltage, and 24 A nominal current.
What material is the housing made from?
The base material is listed as Wemid, and the flammability performance is UL 94 V-0.
Where is this plug-in connector typically used?
It is used in terminal block systems, industrial control panels, and modular wiring arrangements where quick additional assembly is useful.
Why is this product useful in panel building?
It supports quicker installation, organized terminal expansion, and easier handling compared with more labor-intensive screwed accessory solutions.
