Weidmüller 1005460030 SAIL-ZW-M12BG-3-0.3U M12 Sensor-Actuator Adaptor Cable

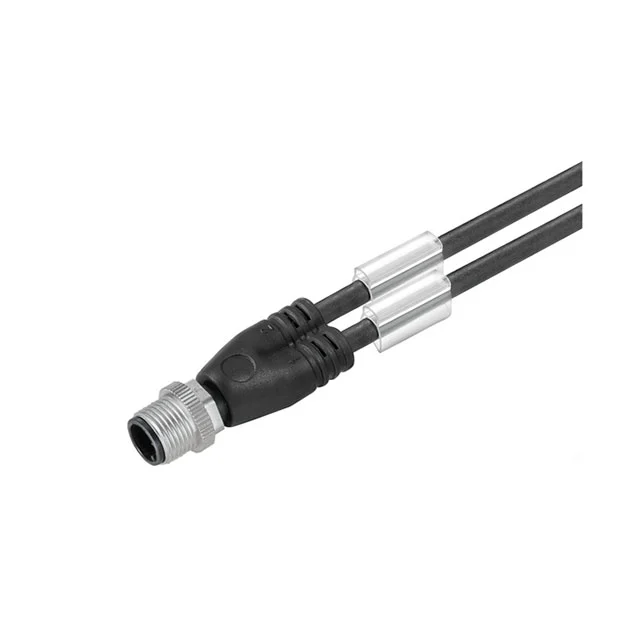

The Weidmüller 1005460030 SAIL-ZW-M12BG-3-0.3U is a ready-to-connect sensor-actuator adaptor cable designed around an M12 / M12 interface. It is a 3-pole, A-coded solution with a 0.3 m cable length, built in a twin-cabling format with one straight male connector and two straight female connectors. For short-distance machine wiring, compact sensor branching, and tightly arranged automation layouts, this kind of configuration is especially practical.
Product Structure and Interface Design
This Weidmüller M12 cable belongs to the sensor-actuator connection category and follows IEC 61076-2-101 as the connector standard. The left connector is described as an M12 A-coded straight male with IP68 protection, while the right side uses two straight M12 A-coded female connectors, also listed with IP68 protection. The cable is unshielded, does not include LED indication, and uses a halogen-free black PUR sheath.
Because the cable length is only 0.3 m, the Weidmüller 1005460030 M12 cable is most relevant where equipment is mounted close together and excess cable should be minimized. In compact automation cells, sensor islands, valve interfaces, and machine modules with short routing paths, that reduced length can support cleaner installation and easier cable management.
Technical Characteristics
The SAIL-ZW-M12BG-3-0.3U is listed as a 3-pole M12 connecting line with twin cabling, no shielding, no LED, and a PUR outer sheath. The product page states a net weight of approximately 46.4 g. Across the same series configuration, Weidmüller also specifies key technical characteristics such as 4 A rated current, 250 V rated voltage, gold-plated contacts, M12 / M12 connection thread, a 12 mm wrench size, and a tightening torque of 0.8 to 1.2 Nm for M12 connections.
Series-level cable data for this design family also includes drag-chain suitability, 0.34 mm² conductor cross-section, an outer diameter of 3.8 mm ± 0.15 mm, oil resistance, hydrolysis and microbe resistance, and flame-retardant behavior according to UL1581 UL/CUL FT2 and IEC 60332-2-2. These details are highly relevant in industrial automation because cable movement, fluids, vibration, and confined routing spaces are all common in real installations.
Why the 0.3 m Version Matters
Short cable variants are often the most efficient choice when components are already physically close. A 0.3 m M12 adaptor cable reduces unnecessary slack, helps keep machine layouts tidy, and can make service access easier. In industrial practice, overly long patch or adaptor cables can create clutter, complicate troubleshooting, and increase the chance of routing errors. That is why the Weidmüller 1005460030 sensor-actuator adaptor cable has a very specific role rather than being a general-purpose length.
Technical search behavior also reflects this specificity. Terms such as Weidmüller 1005460030 M12 cable, SAIL-ZW-M12BG-3-0.3U sensor cable, and Weidmüller 0.3 m M12 adaptor cable are much more precise than a broad phrase like “sensor cable,” and they better match how engineers, buyers, and maintenance teams search for exact connection components.
Weidmüller 1005460030 FAQ
What is the Weidmüller 1005460030 used for?
It is used as a ready-to-connect M12 sensor-actuator adaptor cable in short-distance industrial wiring setups where a compact twin-cabling arrangement is required.
What is the cable length of SAIL-ZW-M12BG-3-0.3U?
The cable length is 0.3 m, making it suitable for very short routing paths and compact installations.
How many poles does this M12 cable have?
The cable is a 3-pole design with A-coding.
Is the cable shielded?
No. The official product information lists the cable as unshielded.
What sheath material is used?
The cable uses a halogen-free PUR sheath in black, which supports industrial durability and flexible routing.
Why choose a 0.3 m version instead of a longer cable?
A very short cable is often better in compact equipment because it reduces excess slack, improves cable management, and keeps the wiring layout cleaner and easier to maintain.
