Weidmüller 1004330750 SAIL-M12BW-3L7.5T Sensor Cable
The Weidmüller 1004330750 SAIL-M12BW-3L7.5T sensor cable is built for industrial layouts where the field side requires a standard M12 socket and the opposite side needs open conductors for tailored termination. This is a common requirement in modern machine construction because not every control concept is based on connector-to-connector wiring. As a Weidmüller 1004330750 SAIL-M12BW-3L7.5T sensor cable, the product offers a longer 7.5-meter reach that can support broader machine zones, distributed modules, or installations where the terminal point is positioned farther from the device.
Product Concept and Structure

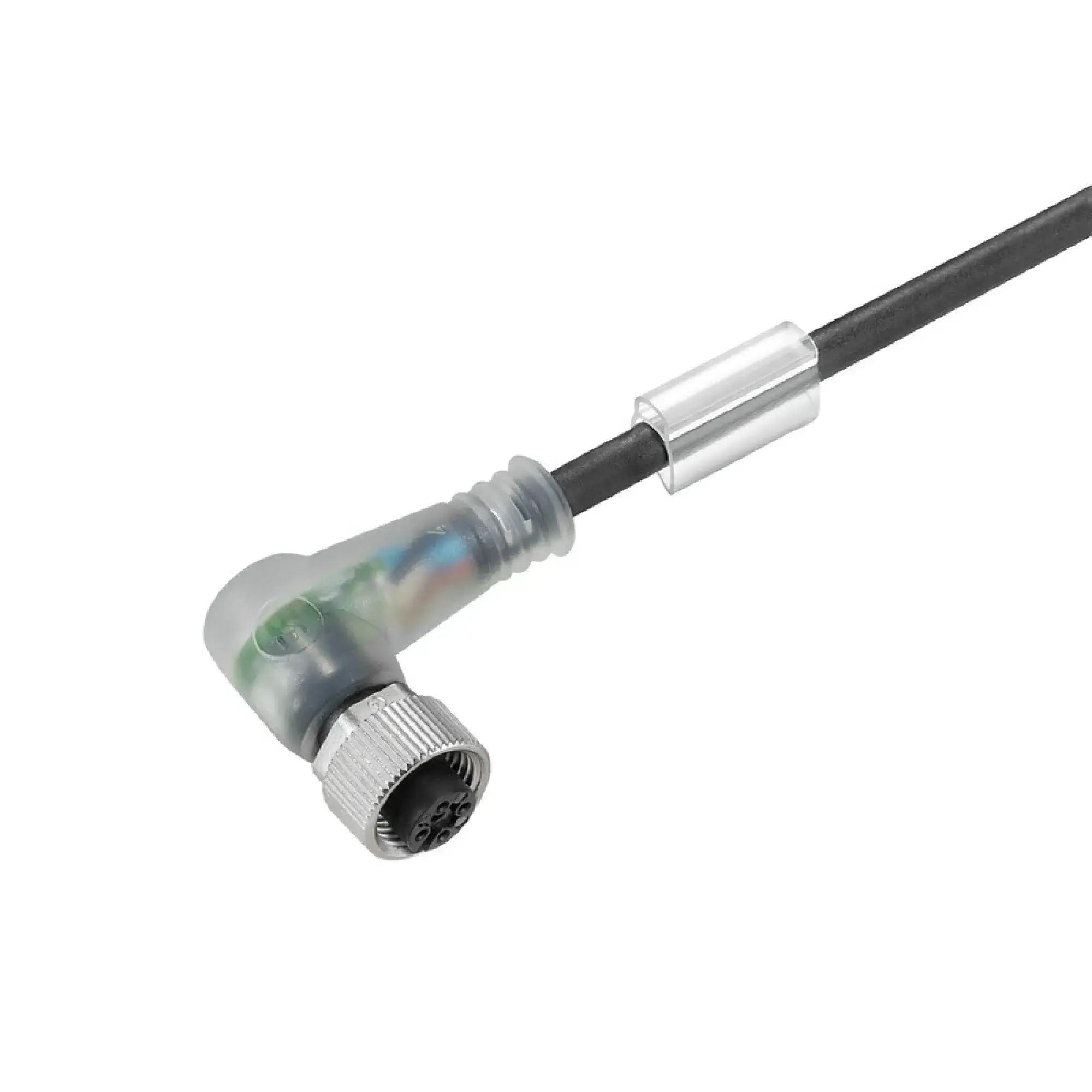

This model is a 3-pole, A-coded M12 cable with an angled female socket and LED on one side and a free conductor end on the other. It is unshielded, halogen-free, and made with a PUR sheath. In practical terms, the Weidmüller SAIL-M12BW-3L7.5T M12 cable is designed to connect sensors or actuators efficiently while still allowing the machine builder or integrator to define the final termination method on the control side.
Why the 7.5 m Length Can Be the Right Choice
In many automation systems, 7.5 meters is the length that resolves layout challenges without forcing designers into unnecessarily long cable runs. The Weidmüller 1004330750 industrial sensor cable can be useful in distributed machine assemblies, conveyor sections, larger work envelopes, and retrofit installations where the field device is positioned at a meaningful distance from the cabinet or interface point.
A fixed cable length that matches the actual routing need can improve both installation quality and serviceability. Excess slack can create clutter and wear points, while too little length introduces strain. A well-chosen 7.5-meter assembly helps avoid both extremes.
Technical Value in Everyday Use
The angled female M12 socket is especially valuable in applications with limited space around the device connection. It helps the cable exit in a more controlled direction and can reduce local mechanical stress. The LED indication provides an additional operational advantage by giving technicians a quick visual cue during maintenance and troubleshooting.
Because the Weidmüller 1004330750 SAIL-M12BW-3L7.5T sensor cable uses a PUR sheath, it is positioned for demanding industrial use. Cables installed around moving machinery, machine frames, or workshop environments need more than simple electrical compatibility. They also need physical resilience, and sheath quality plays a major role in that equation.
Where This Open-End Cable Is Most Relevant
This product can be a strong fit for machine builders, control panel integrators, retrofit teams, and maintenance departments that need an M12-connected device side together with flexible termination at the opposite end. It suits packaging lines, handling systems, automation frames, and control-linked field devices where a standard circular connector on both ends would not be the best choice.
The free conductor end also makes the cable useful in custom machine designs where terminal arrangements, I/O structures, or cabinet architecture vary from one project to another.
FAQ
What is the purpose of the free conductor end on Weidmüller 1004330750?
It allows custom wiring into the machine’s control architecture. This makes the cable useful where the field side should remain M12-based but the control side requires direct conductor termination.
Why is the 7.5-meter length beneficial?
It offers additional routing reach for wider machine layouts or more distributed device positions without automatically introducing the cable excess associated with even longer assemblies.
Is the socket straight or angled?
The socket is angled. This helps with cable exit direction and installation in tight or awkward mounting areas.
What does the LED contribute?
The LED helps provide fast visual status feedback, which can be valuable during inspection, diagnostics, and service tasks in industrial environments.
Why would an integrator choose this over a connector-to-connector cable?
An open-end cable offers more control-side flexibility. It is often the better choice when the device end needs standardization but the other side must match a custom cabinet or terminal scheme.
What are common applications for this model?
Common applications include machine building, packaging systems, material handling, production modules, and retrofit projects that use M12-connected devices with direct control-side termination.
For more information about Weidmüller, reviewing related sensor-actuator cable variants can help identify the best format for each machine architecture.
