Weidmüller 1004330500 SAIL-M12BW-3L5.0T Sensor Cable
The Weidmüller 1004330500 SAIL-M12BW-3L5.0T sensor cable is designed for industrial installations that need more than a short local jumper but still rely on an open-end termination concept at one side of the connection. In automation projects, that combination is common: the field device benefits from a standardized M12 plug connection, while the cabinet or control side needs direct conductor termination. As a Weidmüller 1004330500 SAIL-M12BW-3L5.0T sensor cable, this model brings together a practical cable length, a familiar M12 interface, and a layout that suits many machine-building scenarios.
Product Design at a Glance

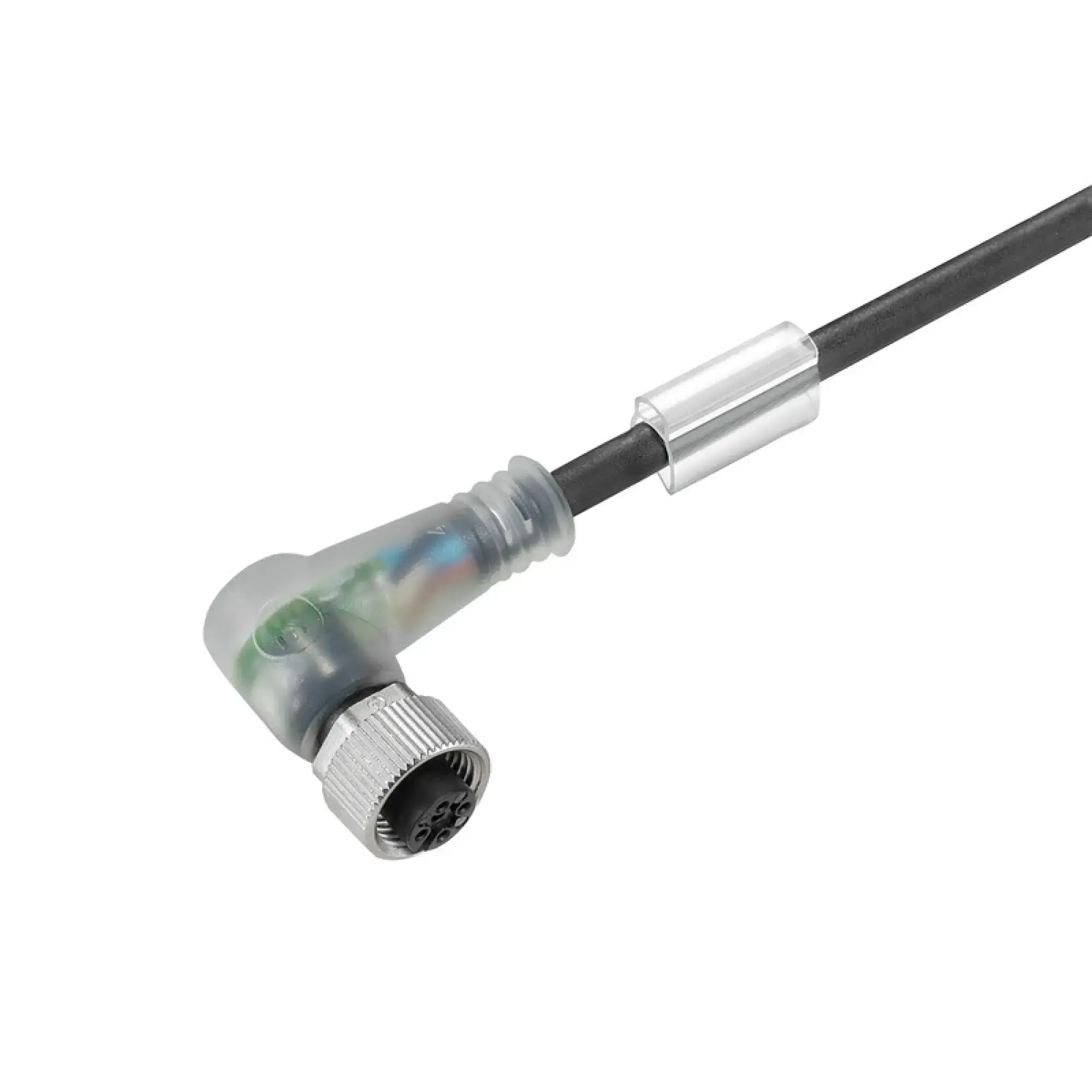

This cable is a 3-pole, A-coded M12 solution with one angled female M12 socket with LED indication and one free conductor end. The length is 5 meters. The cable is unshielded, halogen-free, and constructed with a PUR sheath. For engineering teams, the Weidmüller SAIL-M12BW-3L5.0T M12 cable represents a straightforward bridge between machine-level connectorization and panel-level custom wiring.
Why 5 Meters Is a Strong Middle Ground
A 5-meter industrial cable often fits applications where the device is not directly adjacent to the control interface but also does not require a very long run. This makes the Weidmüller 1004330500 industrial sensor cable suitable for machine zones, equipment modules, local conveyors, and mid-range cabinet-to-device distances. It gives designers enough freedom in routing without automatically introducing the management issues that can come with unnecessarily long cable assemblies.
From a system-design perspective, using the right fixed length matters because cable discipline is closely linked to maintainability. Cleaner routing often translates into better accessibility, lower accidental strain, and simpler future replacement.
Connector Format and Maintenance Advantages
The angled female M12 socket is useful in installations where the device face does not favor straight cable exit. Many sensors, actuators, and compact machine interfaces are mounted in positions where a 90-degree connector makes the overall cable path more natural. That can improve both aesthetics and functional cable protection.
LED indication adds further field value. In many production environments, the ability to make quick visual checks can save maintenance time. Technicians working under time pressure often benefit from any design element that simplifies first-level diagnosis. The Weidmüller 1004330500 SAIL-M12BW-3L5.0T sensor cable therefore supports not only connection quality but also day-to-day service clarity.
Weidmüller 1004330500 Why the PUR Sheath Matters
The use of PUR is a relevant industrial design choice. Cables in machine environments can experience bending, rubbing, vibration, and frequent contact with surfaces or moving parts. A durable sheath can support longer service life and more reliable physical performance. Even where the electrical design is straightforward, mechanical wear is often what drives maintenance needs first.
Typical Use Cases
This type of open-end M12 cable can fit packaging machines, automation cells, handling systems, compact conveyor layouts, and retrofit projects where the device side must remain connectorized but the opposite side must be wired according to a specific machine design. The Weidmüller SAIL-M12BW-3L5.0T open-end sensor cable is especially useful when a factory-molded connector is preferred for consistency and the control side must remain adaptable.
Weidmüller 1004330500 FAQ
What is the function of Weidmüller 1004330500?
It connects an M12-compatible field device on one side and provides a free conductor end on the other side for custom wiring into a control cabinet, terminal point, or machine-specific interface.
Why would someone choose a 5-meter version?
A 5-meter cable is often ideal for mid-range connections. It offers practical routing flexibility without creating as much excess cable as longer versions in smaller layouts.
Is the cable suitable for tight mounting spaces?
Yes, the angled female M12 socket can be especially useful in installations where straight cable exit would be awkward or would place unnecessary strain on the connection point.
What is the role of the LED?
The LED provides a quick visual reference during maintenance and inspection. This can help technicians identify status faster and reduce unnecessary diagnostic effort.
Does the open end reduce application flexibility?
No, it usually increases flexibility. It allows the cable to be integrated into custom wiring schemes while preserving a standard M12 connection on the device side.
What industries may use this cable?
Machine building, industrial automation, packaging, materials handling, and system retrofit projects are all typical contexts where this cable format can be relevant.
For more information about Weidmüller, it is worth reviewing the full range of M12 cordsets and open-end cable options used in industrial field wiring.
