Weidmüller 1004330300 SAIL-M12BW-3L3.0T Sensor Cable
The Weidmüller 1004330300 SAIL-M12BW-3L3.0T sensor cable is intended for industrial applications that need a ready-made M12 socket on one side and a free conductor end on the other. This format is especially useful when field connectivity must remain standardized, but the control-side termination still depends on the machine builder’s own panel concept. As a Weidmüller 1004330300 SAIL-M12BW-3L3.0T sensor cable, the product fits a very practical niche in automation: reliable device connection at the machine, flexible integration at the cabinet or terminal side.
Product Structure and Basic Function

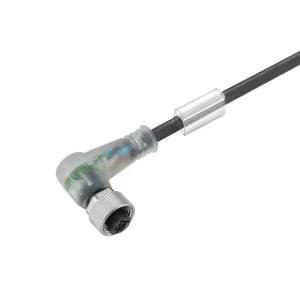

This model is a 3-pole, A-coded M12 cable with a 3-meter length. It uses an angled female M12 socket with LED indication and an open conductor end. The assembly is unshielded, halogen-free, and built with a PUR sheath. In real installation terms, the Weidmüller SAIL-M12BW-3L3.0T M12 cable offers a clean way to connect sensors or actuators while still allowing custom wiring into the machine’s electrical architecture.
Why the 3 m Length Is So Useful
A 3-meter cable often sits in the most versatile part of the length range. It is long enough for many local machine runs, yet short enough to remain tidy and easy to manage. For equipment builders, that makes the Weidmüller 1004330300 industrial sensor cable a practical option for linking field devices to nearby cabinets, junction points, or terminal strips without overcomplicating the routing path.
Compared with shorter versions, a 3-meter assembly offers more freedom in machine layout. Compared with longer versions, it can reduce excess slack, unnecessary loops, and avoidable clutter. That balance matters in compact automation environments where serviceability and clean installation are key performance factors.
Connector Design and Technical Value
The angled female socket is a highly functional choice. In many industrial devices, straight exit routing is not ideal because of enclosure shape, mounting depth, or neighboring hardware. A 90-degree connector helps direct the cable more naturally and can reduce stress at the mating point. On the Weidmüller 1004330300 SAIL-M12BW-3L3.0T M12 sensor cable, that is complemented by LED indication, which helps technicians read status more quickly during inspection and troubleshooting.
The product family also uses a PUR outer jacket, which is an important design choice in demanding industrial environments. Even when the cable run is not especially long, cables may still face mechanical wear, vibration, workshop-level contamination, and repeated handling. PUR is often selected because it offers the type of durability expected in machine wiring.
Where an Open-End M12 Cable Makes Sense
This cable type is especially relevant in equipment that mixes preassembled field connectors with terminal-based control wiring. Typical examples include machine frames with local sensors, compact production cells, packaging equipment, and semi-custom assemblies. The Weidmüller 1004330300 SAIL-M12BW-3L3.0T sensor cable supports that hybrid approach by keeping the device side standardized while leaving the control side adaptable.
That flexibility also helps during service and retrofit work. If the device side must remain M12-compatible but the opposite end has to match a specific control concept, an open-end cable can be the more practical choice than a fully connectorized cordset.
Weidmüller 1004330300 FAQ
What is the main use of Weidmüller 1004330300?
It is used to connect a field device with an M12 socket interface on one side while leaving the opposite side open for custom termination into a cabinet, terminal strip, or control point.
Why choose a 3-meter cable?
A 3-meter cable is often ideal for local machine runs. It provides enough length for flexible routing while still helping maintain a neat and manageable installation.
What benefit does the LED socket provide?
The LED can help technicians visually interpret connection or signal status, which may speed up inspection and basic troubleshooting in the field.
Is the cable shielded?
No, this model is specified as unshielded. Application suitability should therefore be assessed according to the electrical environment and the design requirements of the installation.
Why is the cable sheath important?
The PUR sheath contributes to mechanical durability, which is important in industrial environments where cables may be exposed to abrasion, movement, and general handling stress.
Where is this product commonly installed?
It is commonly installed in machines, production cells, panel-linked field devices, packaging systems, and automation assemblies that combine M12 device connectivity with open-end control wiring.
