Weidmüller 1004330150 SAIL-M12BW-3L1.5T Sensor Cable
The Weidmüller 1004330150 SAIL-M12BW-3L1.5T sensor cable is a practical option for compact industrial installations where one side needs a standard M12 connection and the other side requires open-ended conductor termination. This layout is common in machines where the field device uses a circular connector, but the control side still needs to be wired into a cabinet, terminal point, or custom interface. As a Weidmüller 1004330150 SAIL-M12BW-3L1.5T sensor cable, the product is designed around flexibility, neat routing, and repeatable factory-made connector quality.
What This Product Is Designed To Do

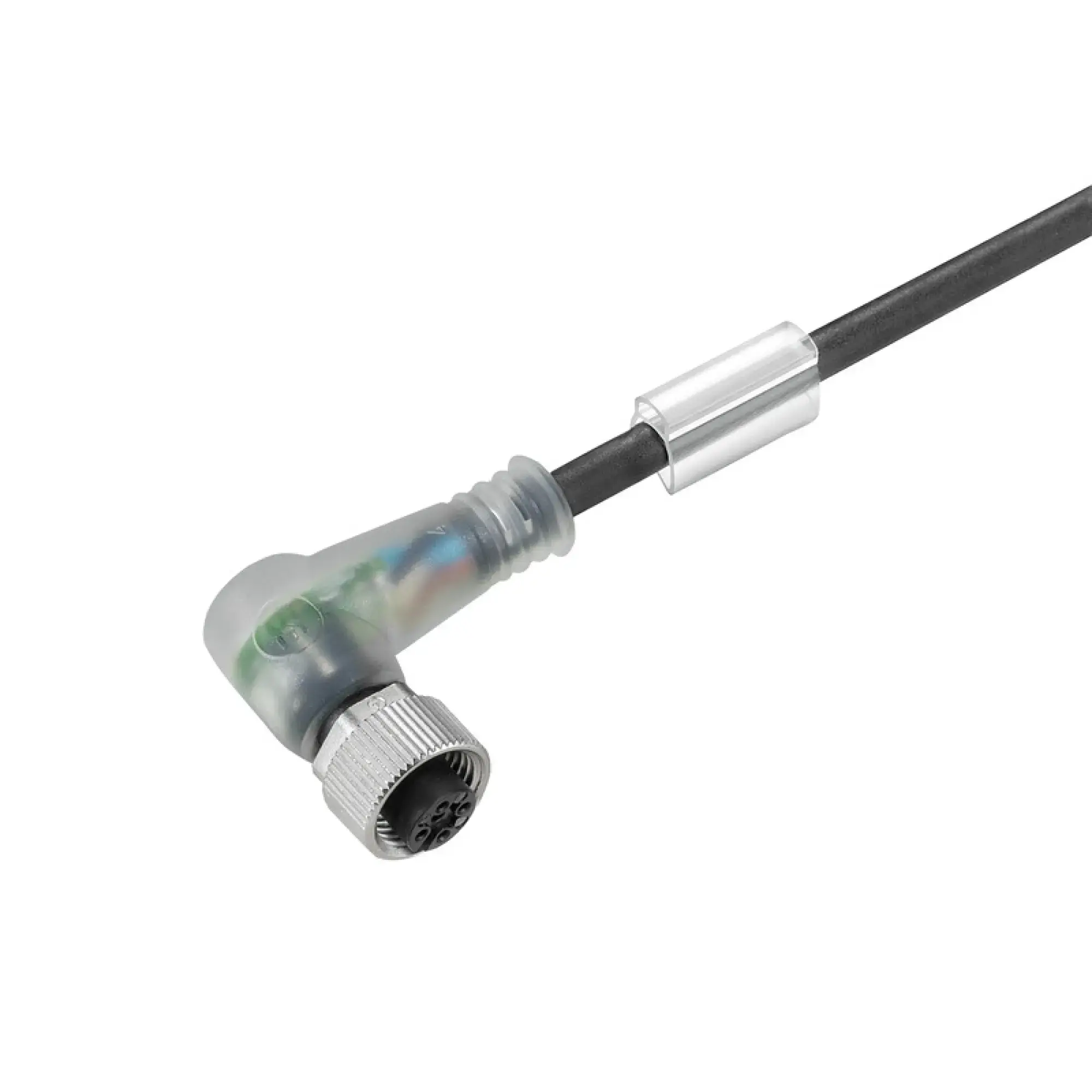

This model is a 3-pole, A-coded M12 cable with one connector end and one free conductor end. The connector side is an angled female M12 socket with LED indication, while the opposite side is left open for custom wiring. The cable length is 1.5 meters, the sheath material is PUR, the design is halogen-free, and the construction is unshielded. In everyday industrial terms, the Weidmüller SAIL-M12BW-3L1.5T M12 cable helps bridge the gap between standardized field connectivity and installation-specific termination requirements.
Why One End Without Connector Matters
Not every installation is built around connector-to-connector architecture. Many machines still combine field connectors with terminal-based cabinet wiring. In those cases, a product like the Weidmüller 1004330150 SAIL-M12BW-3L1.5T industrial cable can simplify the design. The M12 side gives you a robust, familiar interface at the field device, while the free conductor end allows customized integration into the panel or control circuit.
This can be useful in retrofit work, compact machinery, and modular equipment where preassembled device-side connectivity is desired but the opposite end must remain adaptable.
Benefits of the 1.5 m Length
A 1.5-meter cable is especially relevant for short runs between a device and a nearby terminal or control point. It is long enough to allow workable routing but short enough to avoid the clutter that often comes with extra cable slack. In tightly built machines, that balance matters. The Weidmüller 1004330150 M12 sensor cable therefore fits installations where clean layout and local termination are both important.
Technical Design in Real Application Terms
The 3-pole A-coded M12 format supports a broad range of standard sensor and actuator connections. The angled female connector helps when the mating point is mounted in a space-sensitive position. Rather than forcing a straight exit path, the 90-degree shape allows the cable to leave the connector more naturally. That can support tighter cable management and lower stress at the connector body.
The LED indication on the socket is another practical feature. In maintenance work, visual status cues can help technicians assess a connection faster. Even when the benefit seems small on paper, field service teams usually appreciate anything that improves clarity and reduces unnecessary diagnostic steps.
The PUR outer sheath also deserves attention. In industrial settings, cable durability matters because even short runs can be exposed to repeated handling, friction, contaminants, and machine vibration. PUR is often selected for exactly that reason.
Where This Cable Commonly Fits
The Weidmüller 1004330150 SAIL-M12BW-3L1.5T sensor cable is a logical fit for compact automation assemblies, packaging machines, control panels, sensor interfaces, valve islands, and equipment where a field connector must transition into open wiring. Because one side remains free for termination, this format is often appreciated in semi-custom machine builds and service replacements.
FAQ
What does “one end without connector” mean on Weidmüller 1004330150?
It means one side of the cable uses an M12 connector, while the opposite side is an open conductor end for custom termination. This is useful when the field device uses M12 but the control side needs direct wiring.
Why is the 1.5 m length important?
It is a good length for compact installations. It usually provides enough routing freedom without adding unnecessary excess cable inside a machine or cabinet-adjacent area.
What is the advantage of an angled M12 socket?
An angled socket helps route the cable in confined spaces and can reduce strain at the connector. It is especially useful when the device mounting position does not favor a straight cable exit.
Does the LED help in practical operation?
Yes. LED indication can simplify visual checks and help maintenance staff assess connection status more efficiently during service or troubleshooting.
Is this cable suitable for harsh industrial use?
Its PUR sheath and factory-molded connector construction support use in demanding industrial environments, provided the application matches the product’s intended electrical and mechanical conditions.
Who benefits most from this cable type?
Machine builders, panel integrators, retrofit teams, and maintenance departments often benefit from this format because it combines a standard field connector with flexible open-end termination.
