Weidmüller 1004320500 SAIL-M12GM12W-3L5.0T Sensor-Actuator Cable

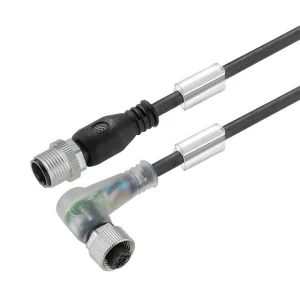

In industrial automation, cable selection is rarely a minor detail. It directly affects installation quality, signal consistency, maintenance routines, and long-term reliability in the field. The Weidmüller 1004320500 SAIL-M12GM12W-3L5.0T sensor-actuator cable is designed for applications that need a ready-made M12 connection with a practical routing format and a durable jacket for demanding environments. As a Weidmüller 1004320500 SAIL-M12GM12W-3L5.0T sensor-actuator cable, this model combines a straight M12 male connector on one side and an angled M12 female connector with LED indication on the other side, creating a layout that fits many common machine and field device installations.
What the Product Is
The Weidmüller SAIL-M12GM12W-3L5.0T sensor-actuator cable is a 3-pole, A-coded M12 / M12 connecting cable with a length of 5 meters. It is unshielded, built with a PUR sheath, halogen-free, and intended for sensor and actuator wiring where robust molded connections are preferred over field assembly. In practice, that means installers get a factory-tested cable assembly that helps reduce wiring variability and supports a more standardized connection strategy across machines, conveyors, packaging systems, and process equipment.
Key Technical Characteristics
This Weidmüller 1004320500 sensor cable follows the well-known M12 connection format used widely in industrial automation. The 3-pole A-coded configuration is commonly chosen for straightforward sensor and actuator connections, particularly where compact circular connectors and dependable locking are required. The cable design uses a PUR outer sheath, which is relevant in installations exposed to abrasion, movement, and workshop-level mechanical stress. The product family is also positioned for demanding environments thanks to welding spark resistance and resistance to welding beads, which makes it especially relevant in production lines where hot particles or harsh handling may be part of daily operation.
The LED-equipped angled socket is one of the more practical details in this design. In real maintenance conditions, visual indication can make troubleshooting faster, especially when technicians need a quick status check without interrupting the line. The angled female side also improves cable routing in tight spaces. Instead of forcing a straight cable exit where clearance is limited, the 90-degree format helps reduce bending stress at the connector and supports cleaner cable management.
Why Cable Length Matters at 5 Meters
The 5-meter length places this model in a very useful middle range. It is long enough for many machine-to-sensor runs without creating excessive slack, yet compact enough to remain manageable in cabinet-adjacent or localized field layouts. A cable that is too short creates installation tension, while a cable that is too long often leads to unnecessary loops, clutter, and avoidable wear points. That is why the Weidmüller 1004320500 SAIL-M12GM12W-3L5.0T M12 cable often fits applications where a balanced installation footprint is important.
Typical Application Areas
This type of M12 sensor cable is relevant across machine building, factory automation, conveyor systems, robotics support wiring, and packaging lines. It can also be a practical option in modular production cells where sensors and actuators are mounted in repeatable positions and the use of pre-assembled cords helps maintain consistent installation quality. Because the connectors are molded and tested at the factory, users can approach commissioning with a more predictable connection baseline.
Another important point is durability in motion-related environments. While every installation must be evaluated according to actual movement, the product family is intended for cable carrier suitability and dynamic operation scenarios. That matters in automated machinery where repetitive motion and cable flexing can shorten service life if the wrong cable design is selected.
Installation and Maintenance Perspective
From an engineering operations perspective, a cable like this contributes to standardization. Instead of mixing field-terminated solutions and multiple connector styles, a preassembled Weidmüller SAIL-M12GM12W-3L5.0T M12 sensor-actuator cable supports cleaner documentation, easier spare-part planning, and more straightforward technician training. The gold-plated contacts and IP-rated M12 interface also align with the expectation of stable industrial connectivity where vibration, dust, and washdown risk can be part of the operating environment.
For teams that value maintainability, the LED socket provides a subtle but useful operational benefit. Maintenance work is often about speed and clarity. Any component that helps a technician confirm line status more quickly can reduce fault-finding time and improve workflow during service intervals.
Weidmüller 1004320500 FAQ
What type of connector layout does Weidmüller 1004320500 use?
It uses an M12 straight male connector on one side and an M12 angled female connector with LED indication on the other side. This combination is well suited to installations where one device face allows straight entry and the mating point benefits from a 90-degree cable exit.
Is the Weidmüller 1004320500 SAIL-M12GM12W-3L5.0T cable shielded?
No. This model is specified as unshielded. That makes it important to assess the surrounding electrical environment and confirm suitability for the intended application, particularly if the installation includes strong interference sources.
Why is PUR important in an industrial cable?
PUR is often selected because it provides strong mechanical performance in demanding environments. It is associated with durability, flexibility, and resistance to common industrial wear conditions, making it a common choice for machine-level cabling.
What makes the angled socket useful?
The angled socket helps when installation space is limited. It allows the cable to exit in a controlled direction, which can support tighter routing, lower strain at the connector, and a neater machine layout.
Where can this cable be used?
It is typically relevant in sensor and actuator wiring for automated machinery, production cells, packaging equipment, conveyors, and general industrial field connectivity where a 3-pole A-coded M12 connection is appropriate.
Does LED indication matter in day-to-day operation?
Yes, especially in maintenance-intensive environments. LED indication can help technicians visually confirm connection or signal status more quickly, which may reduce diagnostic time during routine inspections or troubleshooting.
Weidmüller 1004320500 For more information about Weidmüller, it is worth reviewing the broader product family and connection ecosystem used in industrial automation projects.
