Weidmüller 1004310500 SAIL-M12GM12W-4-2L5.0T Sensor-Actuator Cable

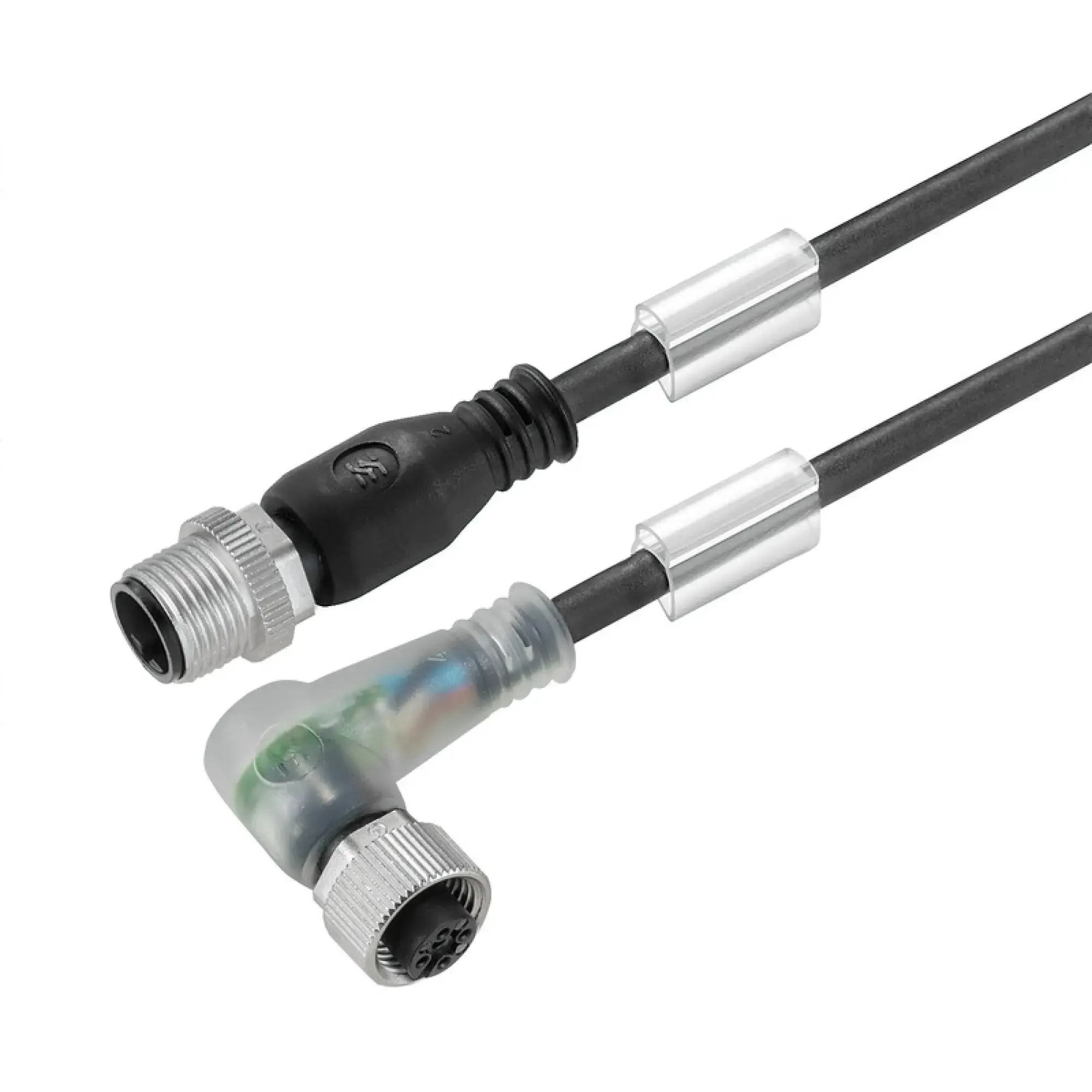

The Weidmüller 1004310500 SAIL-M12GM12W-4-2L5.0T is a 5 metre M12 sensor-actuator cable designed for industrial connectivity tasks that need a longer field connection without giving up the convenience of preassembled moulded connectors. It uses a straight 4-pole A-coded M12 male connector on one end and an angled 90° 4-pole A-coded M12 female connector with LED on the other. With its unshielded design, black PUR sheath family, and welding-spark-resistant T-version positioning, it addresses many of the routing and durability demands found in real machine installations.
Why the 5 metre length changes the use case
A 5 metre M12 cable moves the product from short interconnection into broader machine coverage. It is often the right choice when sensors or actuators are mounted farther away from the control point, or when the cable must follow a longer and more structured route through the machine frame. The Weidmüller 1004310500 SAIL-M12GM12W-4-2L5.0T sensor-actuator cable gives engineers a ready-made solution that reduces field assembly time and helps preserve connector quality over longer runs. In many OEM environments, that kind of consistency is a major operational benefit.
Weidmüller 1004310500 Technical characteristics that matter
The product data confirms a 4-pole M12 / M12 connection line with straight male to angled female geometry, LED support, unshielded construction, and a PUR outer sheath. The family pages also identify compliance with IEC 61076-2-101 and moulded, tested plug-in connectors. In practical terms, these features point to a cable that is built for reliable, repetitive use in industrial automation rather than improvised or temporary wiring. Engineers searching for a 5 m M12 cable, Weidmüller sensor cable, or M12 LED patch cable often prioritize exactly these qualities.
Why this cable is a practical automation choice
Using a preassembled M12 cable can simplify machine building in several ways. It reduces installation variability, improves spare part management, and ensures that connector geometry is consistent across multiple systems. The angled female side can also improve routing in tight spaces or near machine panels, while the LED indication supports quick visual checks during setup and service. The Weidmüller 1004310500 therefore works well not only as a cable, but as a standardization tool within broader automation design.
Weidmüller 1004310500 Typical applications
This cable is relevant for machine tools, automation cells, sensor arrays, industrial packaging lines, process equipment, and distributed field I/O systems. The 5 metre length gives it strong practical value in medium-distance equipment runs where shorter cables would be too limiting. For more information about Weidmüller, it is useful to compare adjacent SAIL cable lengths when defining a repeatable field wiring standard.
Weidmüller 1004310500 FAQ
What makes the Weidmüller 1004310500 different from the 1.5 m and 3 m versions?
The key difference is the 5 metre cable length, which makes it more suitable for longer equipment routes and distributed machine layouts.
Is this cable assembled and ready to use?
Yes. It is a preassembled sensor-actuator cable with moulded tested connectors.
Does it use standard M12 connectors?
Yes. It uses M12 A-coded connectors built around the IEC 61076-2-101 standard.
Why is the angled female connector beneficial?
It can improve cable routing in compact or awkward spaces and reduce mechanical stress near the connection point.
Where is this cable most useful?
It is especially useful in medium-distance industrial automation runs, machine frames, and field device installations.
