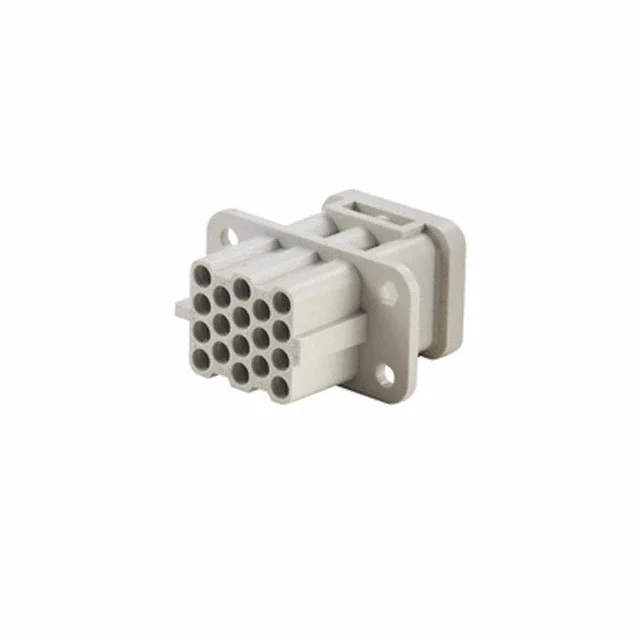

Weidmüller 1003200000 HDC HQ 17 FC Female Insert for Dense Industrial Wiring
The Weidmüller 1003200000 HDC HQ 17 FC is a female heavy-duty connector insert designed for installations that need a relatively high number of poles in a compact industrial connector format. In industrial design, that combination is often difficult to achieve cleanly. More poles usually mean more space, but many machines and modular systems cannot afford large connector footprints. The Weidmüller HDC HQ 17 FC answers that challenge by delivering a denser fixed-pole insert within the HQ format.
This insert is commonly identified as a female insert without contacts, configured for 17+ground positions, with a crimp connection. References also indicate a 10 A rated current, and conductor-related product data points to sizes beginning around 0.14 mm². That profile makes the insert particularly relevant for structured multi-pole industrial interfaces where space efficiency, organization, and dependable mating behavior matter more than headline current density alone.
What the Weidmüller HDC HQ 17 FC Is Designed For
The Weidmüller 1003200000 HDC HQ 17 FC female insert is intended for industrial plug-in connector systems that require many defined contact positions in one compact insert body. This is valuable in machinery that routes multiple control, auxiliary, or lower-power lines through a single robust interface. Instead of spreading these circuits across several smaller connectors, a 17-pole insert can create a cleaner and more maintainable architecture.
Because it belongs to the HQ series, the insert is part of a compact heavy-duty connector family. That means it benefits from the broader housing and accessory ecosystem built for demanding industrial service. It is not just about the contact count; it is about contact count inside a connector concept suitable for factory conditions.
Technical Characteristics of the Weidmüller 1003200000
The Weidmüller HDC HQ 17 FC is typically described as a female insert with 17+ground positions and a crimp termination style. Product references identify a 10 A rated current, while conductor-related information begins at about 0.14 mm². This makes it well suited to structured industrial signal or auxiliary connection duties inside a heavy-duty connector platform.
One of the practical strengths of the insert is its crimp-based design. Crimp terminations are valued in industry for repeatability and durability when correct tooling and contact parts are used. Since the insert is supplied without contacts, the contact elements can be chosen according to the specific conductor and application requirements.
Where the HQ 17 FC Female Insert Fits Best
The Weidmüller 1003200000 HDC HQ 17 FC connector insert is especially relevant in automation systems, modular machinery, packaging equipment, conveyor subsystems, and process-related interfaces where many poles must be grouped in a robust connector assembly. It is also useful where serviceability matters, since a single organized connector can be easier to document and maintain than several scattered interfaces.
In many modern control architectures, connector density is becoming more important, not less. Distributed I/O, hybrid machine modules, and decentralized equipment often need structured multi-pole interconnections that remain physically manageable. That is exactly the context in which the HQ 17 format stands out.
Why Connector Density Matters
A higher-pole insert is not only about fitting more circuits into less space. It can also help simplify installation drawings, spare-part handling, cable routing, and machine servicing. The Weidmüller 1003200000 HDC HQ 17 FC female insert supports that broader system benefit by giving designers a denser connection point without leaving the heavy-duty connector category.
For more information about Weidmüller, it is useful to compare this insert with related HQ housings and accessories for a complete connector solution.
FAQ
What is the Weidmüller 1003200000 HDC HQ 17 FC?
It is a female heavy-duty connector insert with a 17+ground position layout and crimp connection for compact industrial systems.
What current rating is associated with the Weidmüller HDC HQ 17 FC?
Product references commonly list the insert with a 10 A rated current.
Does the Weidmüller 1003200000 include contacts?
No. It is generally described as an insert supplied without contacts, allowing separate contact selection.
Why would someone choose a 17-pole HQ insert?
It helps group many circuits into one compact heavy-duty connector interface, which can simplify design, maintenance, and cable management.
What conductor sizes are relevant for this insert?
References indicate conductor-related data beginning at around 0.14 mm², with actual contact selection depending on the chosen crimp elements.
Where is the Weidmüller 1003200000 commonly used?
It is commonly used in automation equipment, modular machine assemblies, process interfaces, and industrial systems that need high pole density in a compact format.
