Weidmüller 1003190000 HDC HQ 7 MC Male Insert in Industrial Connector Design

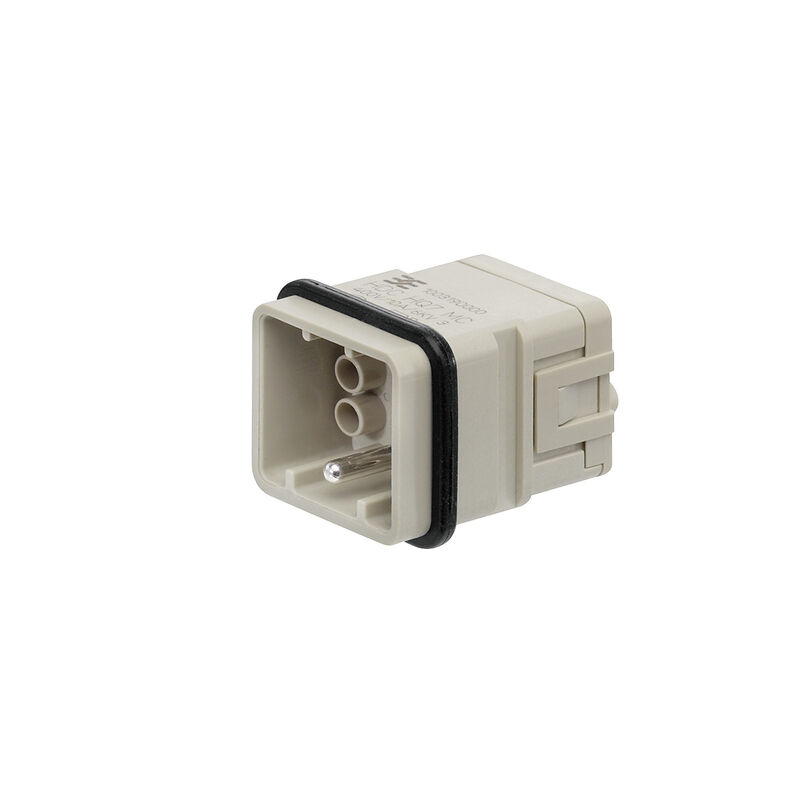

The Weidmüller 1003190000 HDC HQ 7 MC is the male counterpart to the HQ 7 female insert and is intended for compact heavy-duty connector applications in industrial environments. In practice, this kind of insert becomes important where equipment designers need dependable mating performance, controlled pole assignment, and a connector format that does not consume unnecessary space. The Weidmüller HDC HQ 7 MC fits that requirement well.
The product is identified as a male insert without contacts, configured for 7+ground positions, with a crimp connection, and typically rated at 400 V and 10 A. Supporting references also indicate conductor compatibility from approximately 0.14 mm² to 2.5 mm². That makes it suitable for a broad set of industrial interconnect tasks where robust plug-in connections are preferred over fixed terminal-only approaches.
Understanding the Weidmüller HDC HQ 7 MC
The “MC” designation marks this product as the male insert in the HQ 7 series. In a complete connector assembly, it mates with the matching female insert to create a structured industrial interface inside a compatible housing system. Because it belongs to the heavy-duty connector category, the insert is intended to operate within a larger ecosystem of housings, locking systems, and accessories built for industrial reliability.
The Weidmüller 1003190000 HDC HQ 7 MC male insert is especially useful in installations where connector cycles, mechanical handling, and service access are part of the equipment lifecycle. Its compact footprint makes it attractive for machine modules and field interfaces that must remain efficient in both design and maintenance.
Technical Characteristics of the Weidmüller 1003190000
The insert is commonly listed as a 7+ground position male insert with crimp termination. The main electrical figures associated with it are 400 V and 10 A. Conductor-related references show a working range starting from about 0.14 mm² and extending up to 2.5 mm² for appropriate conductor types.
Crimp technology continues to be a strong choice in industrial connection design because it supports durable and repeatable terminations when the correct contacts and tools are used. That gives the Weidmüller HDC HQ 7 MC insert a practical advantage in production environments where connection quality must remain stable over time and across multiple assemblies.
Application Fit and System Value
The Weidmüller 1003190000 HDC HQ 7 MC connector insert is relevant in factory automation, handling systems, packaging machinery, conveyor modules, and control-related field interfaces. In all of these areas, connectors are expected to combine rugged behavior with easy servicing. A compact fixed-pole insert like this one helps make that possible.
Because it is part of a structured connector family, it also supports standardization. That matters for OEMs and plant operators alike. Standard parts are easier to document, easier to replace, and usually easier to integrate into repeatable maintenance routines.
Why This Male Insert Matters in the Complete Assembly
Connector systems only work well when the mating pair, contacts, and housing are correctly aligned. The Weidmüller 1003190000 HDC HQ 7 MC male insert is one half of that functional relationship. Its role is not simply to provide pins, but to do so within a durable industrial format that can be maintained, replaced, and documented with confidence.
When engineers specify the male insert carefully and match it with the correct female insert and housing, the result is a cleaner connector architecture and a more reliable field connection strategy.
For more information about Weidmüller, reviewing the matching HQ housings and accessory options is a useful next step.
FAQ
What is the Weidmüller 1003190000 HDC HQ 7 MC?
It is a male heavy-duty connector insert with a 7+ground position layout and crimp connection for compact industrial connector assemblies.
What are the typical ratings of the Weidmüller HDC HQ 7 MC?
The insert is commonly associated with 400 V rated voltage and 10 A rated current.
Does the Weidmüller 1003190000 include contacts?
No. It is usually described as an insert supplied without contacts, which allows the crimp contacts to be selected separately.
What wire sizes can be used with this insert?
Product references indicate a conductor range of roughly 0.14 mm² to 2.5 mm², depending on conductor style and ferrule usage.
Where is the Weidmüller HDC HQ 7 MC most often used?
It is used in automation systems, machinery, modular industrial equipment, and field-installed connector interfaces where compactness and ruggedness are both required.
Why choose the male HQ 7 MC insert?
It provides the mating pin side of a compact heavy-duty connector solution, supporting durable industrial interconnections in a standardized HQ format.
