Weidmüller 1003120000 HDC HQP KOLU 1PG16 Coupling Housing
The Weidmüller 1003120000 HDC HQP KOLU 1PG16 coupling housing is designed for compact heavy-duty connector arrangements that need a coupling-style lower housing with a defined cable-entry point. In industrial connectivity planning, coupling housings often serve a different role from standard base or bulkhead versions, which is why technical users regularly search for coupling housing PG16, HQ coupling extension housing, industrial connector coupling housing, and Weidmüller HDC HQP KOLU 1PG16.
Understanding the Coupling Housing Format

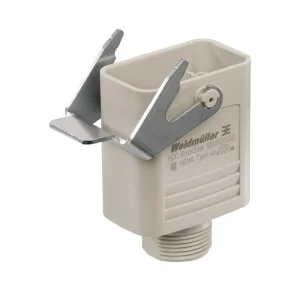

The Weidmüller HDC HQP KOLU 1PG16 is described as a coupling housing in the HQ size. It has one cable entry on top with a PG16 external thread, uses a side-locking clamp on the lower side, and is rated IP65 in the plugged condition. The product is also identified as a coupling extension, which helps distinguish it from standard base housings and bulkhead-mounted options in the same family.
Technical Details That Support System Matching
The official product data shows that the Weidmüller 1003120000 HDC HQP KOLU 1PG16 has one top cable entry, no side cable entries, no cable glands included, and a PG16 entry size. As part of the HQ plastic housing family, it is intended for compact heavy-duty connector solutions where the coupling format supports the overall mechanical layout. These details are important because housing geometry influences mating configuration, cable approach, and maintenance accessibility.
Why Coupling Housings Matter in Practice
Coupling housings are useful where the connector system must be extended or arranged in a way that does not fit a simple panel bulkhead or standard lower-part base concept. In modular industrial systems, field connections, and machine subassemblies, that flexibility can make the connector layout more efficient and easier to maintain. The Weidmüller HDC HQP KOLU 1PG16 coupling housing is especially relevant where a compact HQ format is required but the connection architecture benefits from the coupling-style design.
Weidmüller 1003120000 Environmental and Mechanical Suitability
The housing is rated IP65 in the plugged condition, which supports use in many industrial environments where dust and water ingress must be managed. The side-locking concept helps secure the mating interface, while the defined PG16 top entry makes cable planning more predictable. In demanding installations, small mechanical details like these often determine whether the connector remains practical to service over the long term.
Where This Product Is Typically Used
The Weidmüller 1003120000 HDC HQP KOLU 1PG16 can be relevant in modular machinery, industrial equipment assemblies, service interfaces, and connection extensions where a coupling housing simplifies the physical arrangement. It is particularly useful when system designers want to stay in the HQ family while solving a layout problem that a standard base housing does not address as elegantly.
Before final selection, it is wise to confirm the mating configuration, insert compatibility, and cable gland approach. For More information about Weidmüller, reviewing the related HQ products can help place this housing correctly within the broader connector system.
Weidmüller 1003120000 FAQ
What is Weidmüller 1003120000?
It is an HQ coupling housing with one PG16 top cable entry, designed as a coupling extension within the heavy-duty connector family.
How is a coupling housing different from a base housing?
A coupling housing is used in a different mechanical arrangement from a standard lower-part base housing and is often chosen when the connection layout needs more extension or flexibility.
Does it have side cable entry?
No. The official data shows one top entry and zero side entries.
What ingress protection does it offer?
It is rated IP65 in the plugged condition, which supports use in many industrial environments requiring protected connector operation.
When is this housing a good fit?
It is a good fit when the design benefits from a coupling-style connector arrangement, a PG16 top-entry path, and a compact HQ-format housing concept.
