Weidmüller 1001960000 PCB Terminal Block: Technical Overview and Practical Applications

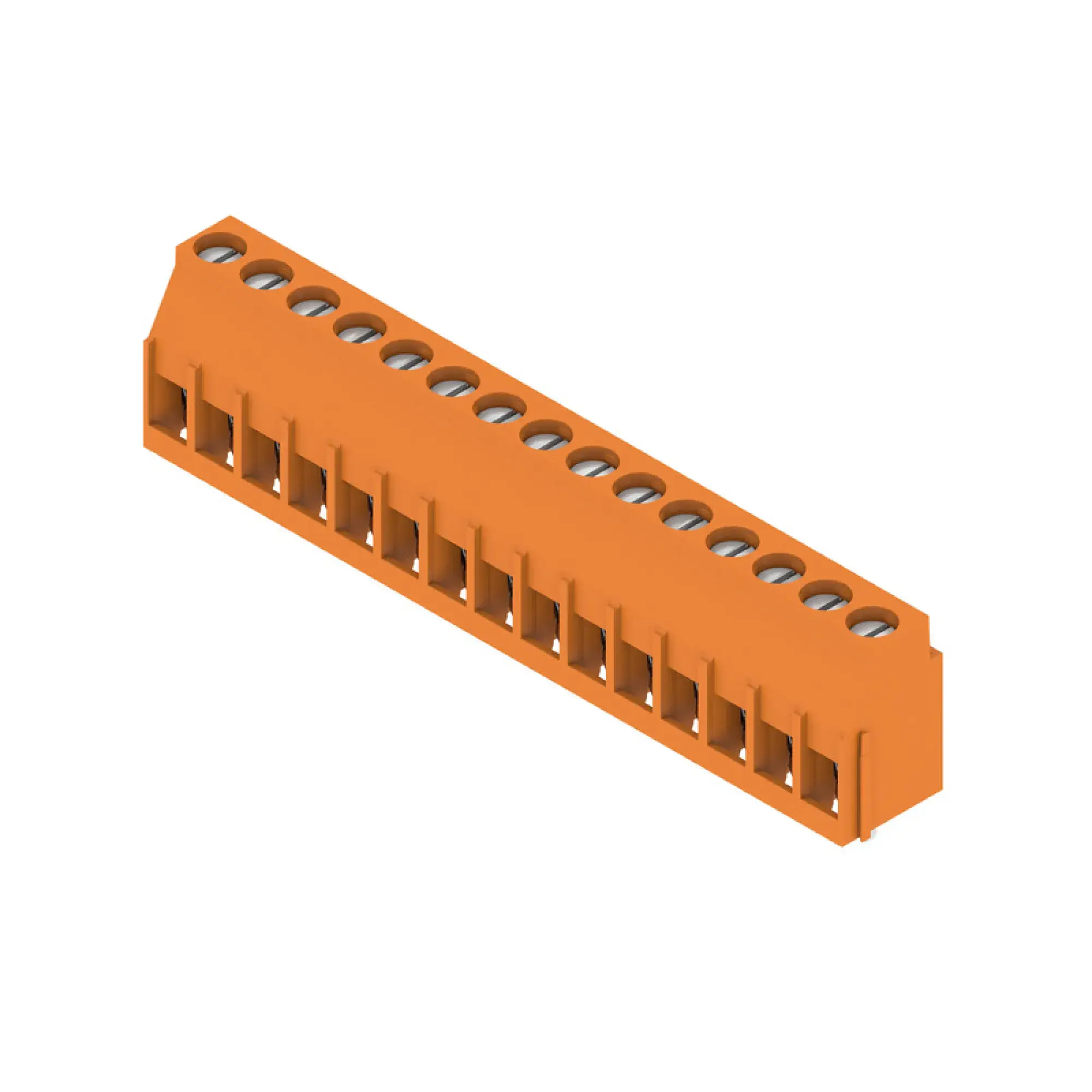

The Weidmüller 1001960000 PCB terminal block, also listed as Weidmüller LL 5.08/15/90 3.2SN OR BX PCB terminal block, is designed for robust wire-to-board connections in industrial electronics. In applications where PCB terminal blocks must combine mechanical stability, safe conductor handling, and dependable electrical performance, this model fits naturally into control electronics, interface boards, industrial automation modules, and machine wiring assemblies.
This version belongs to the Weidmüller OMNIMATE Signal LL series and is built around a 5.08 mm pitch, a 90° conductor outlet direction, and a THT solder connection. The configuration includes 15 poles, making it suitable for denser connection layouts where multiple field signals or power lines need to be routed directly onto a PCB without sacrificing serviceability.
Core Technical Features of the Weidmüller 1001960000 PCB Terminal Block
The Weidmüller 1001960000 PCB terminal block uses a clamping yoke connection, a widely trusted termination method in industrial environments because it supports secure conductor retention and stable electrical contact over time. The terminal is specified for IEC ratings of 500 V and 32.5 A, with a conductor range of 0.5 to 6 mm². Under UL, it is rated for 300 V and 20 A, supporting AWG 26 to AWG 12 conductors.
The housing is supplied in orange, which aligns with common industrial identification preferences, and the solder pin length is 3.2 mm with a tinned finish. This detail matters because PCB terminal reliability is influenced not just by current capacity but also by soldering consistency, insertion stability, and board-level retention. In practical PCB design, these details can affect assembly repeatability and long-term field performance.
Why a 15-Pole PCB Terminal Block Matters in Real Designs
A 15-pole PCB terminal block is often selected when engineers need to handle a mixed signal environment on a compact board. PLC interface boards, sensor aggregation modules, machine control cards, and industrial communication support boards frequently benefit from a pole count in this range. It gives enough connection density to consolidate wiring while keeping the terminal accessible for installation and maintenance.
Because the Weidmüller 1001960000 printed circuit board terminal is angled at 90 degrees, it helps optimize enclosure depth and cable routing. In many control cabinets, horizontal wire exit improves conductor management and reduces unnecessary bending stress. That can make panel layouts cleaner, especially in cabinets where wire ducts, relays, and I/O cards are mounted close together.
Typical Use Cases for Weidmüller LL 5.08/15/90 3.2SN OR BX
This Weidmüller 1001960000 PCB terminal block is well suited for industrial control systems, HVAC controller boards, elevator electronics, power monitoring devices, custom machine boards, and interface modules that need dependable screw-based conductor termination. Designers who prioritize service-friendly maintenance often prefer clamping yoke PCB terminals because they simplify conductor changes in the field.
Another advantage is design familiarity. Many engineers search for terms like PCB terminal block 5.08 mm, wire-to-board terminal block, industrial PCB screw terminal, and 15 pole PCB terminal block when selecting replacements or planning new boards. The Weidmüller 1001960000 fits naturally into those categories without requiring unusual layout assumptions.
Installation and Design Considerations
When integrating the Weidmüller 1001960000 PCB terminal block into a board design, engineers should check creepage and clearance requirements, copper weight, thermal behavior, and the total current distribution across all active poles. Even when a terminal block offers strong nominal electrical ratings, the surrounding PCB layout still determines how effectively the full performance can be used in practice.
It is also sensible to consider servicing conditions. In industrial environments, a PCB terminal is not just a component; it becomes a maintenance interface. Clear marking, logical pole grouping, and adequate screwdriver access can significantly improve installation speed and reduce human error during commissioning.
FAQ: Weidmüller 1001960000 PCB Terminal Block
What is the Weidmüller 1001960000?
The Weidmüller 1001960000 is a 15-pole PCB terminal block from the OMNIMATE Signal LL series. It is intended for wire-to-board connections on printed circuit boards and uses a clamping yoke screw connection for secure conductor termination.
What is the pitch of the Weidmüller 1001960000 PCB terminal block?
The terminal uses a 5.08 mm pitch. This is a common spacing in industrial electronics and supports practical wiring while maintaining good conductor separation.
What kind of conductor outlet does it use?
The conductor outlet direction is 90 degrees. This makes the terminal a good fit for PCB layouts that need horizontal wire routing inside compact control cabinets or machine housings.
What current and voltage ratings does it support?
According to published product data, the terminal is rated at 500 V / 32.5 A under IEC conditions and 300 V / 20 A under UL conditions, depending on the applicable installation and conductor selection.
What wire sizes can be connected?
The IEC conductor range is 0.5 to 6 mm². Under UL, it supports AWG 26 to AWG 12. This range makes it flexible enough for control wiring, interface board connections, and selected low-voltage power distribution tasks on industrial PCBs.
Is the Weidmüller 1001960000 suitable for industrial control boards?
Yes. Its combination of clamping yoke connection, through-hole mounting, 5.08 mm pitch, and industrial electrical ratings makes it highly suitable for control boards, I/O modules, and custom electronics used in demanding environments.
