Weidmüller 1001220000 BLDF 5.08/02/180F SN OR BX Connector Guide

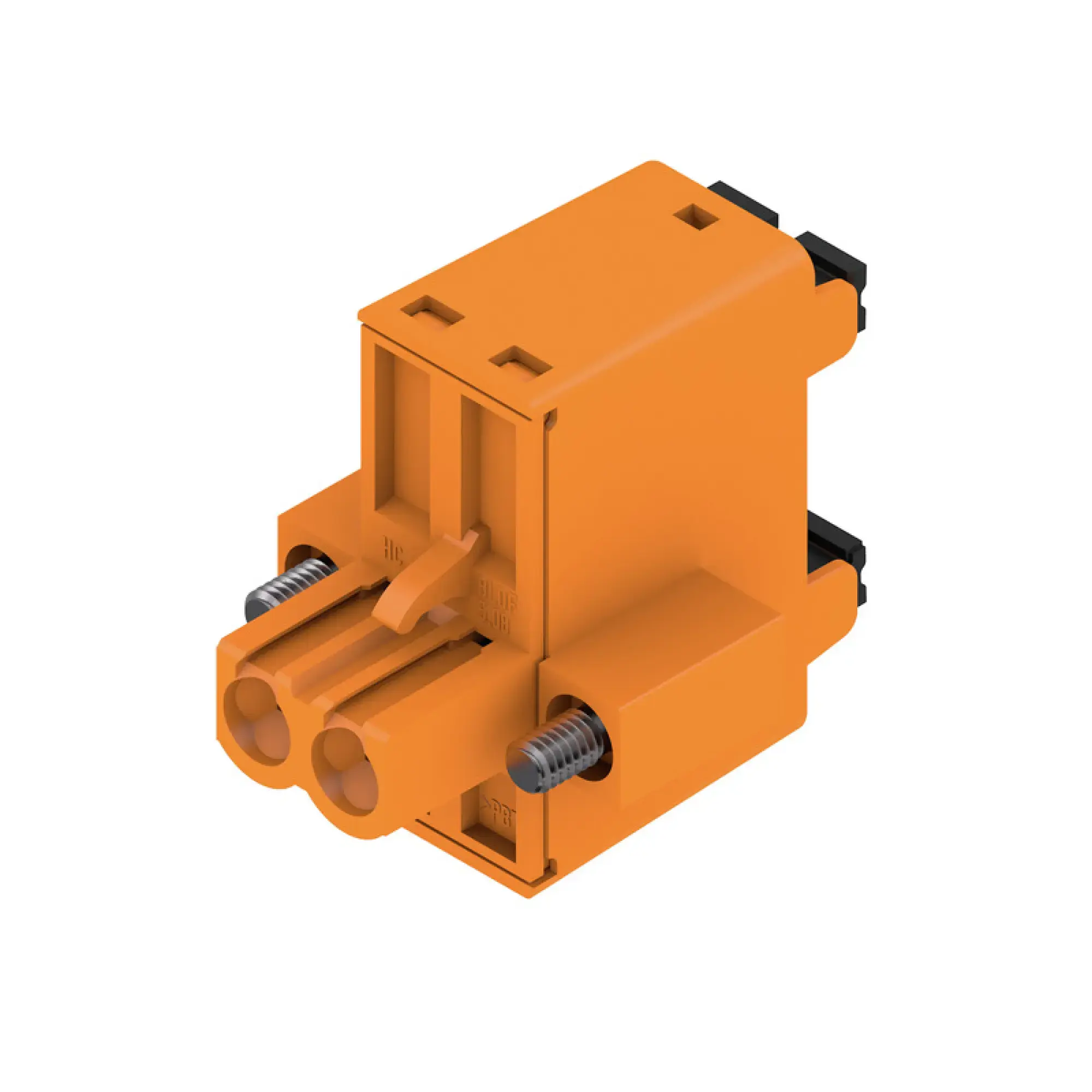

The Weidmüller 1001220000 BLDF 5.08/02/180F SN OR BX is a 2-pole PCB plug-in connector designed for industrial board-level applications that need a compact and dependable connection point. In many products, a simple two-position connector is exactly what is required for power entry, dedicated signal transition, or isolated functional wiring. The Weidmüller 1001220000 PCB plug-in connector is built for that focused role while still offering the reliability and handling expected from an industrial connector family.
What Makes This Connector Relevant
This model belongs to the OMNIMATE Signal range and is configured as a female plug. Even though it has only two poles, it still follows the same pluggable design philosophy valued in larger connectors. That means easier installation, cleaner service access, and a more modular approach to PCB wiring. In industrial electronics, the smallest connection points are often among the most critical because they frequently handle supply or essential interface paths.
Technical Characteristics
The Weidmüller 1001220000 BLDF 5.08/02/180F SN OR BX uses a 5.08 mm pitch and provides 2 poles. It features a 180° conductor outlet and uses PUSH IN with actuator technology. The listed conductor range is 0.2 to 2.5 mm², and the maximum clamping range is 3.31 mm². Official product data states IEC values of 400 V and 20.8 A and UL values of 300 V and 18.5 A. These values show that the connector is suitable for meaningful industrial electrical duties despite its compact pole count.
Why 2-Pole Connectors Remain Important
Search demand around 2-pole PCB connectors and pluggable terminal blocks remains strong because simple two-position interfaces are present in a wide variety of products. Designers often prefer a dedicated 2-pole connector rather than using a larger format with unused positions. The Weidmüller 1001220000 helps keep the layout logical, compact, and easy to understand. That can improve both documentation and field service quality.
PUSH IN and Straight Routing Benefits
The PUSH IN with actuator system supports efficient conductor insertion and reliable holding force. This is valuable in both production and maintenance. The straight 180° conductor outlet also helps create predictable routing, which is especially useful in small housings and space-limited devices. Together, these features make the Weidmüller 1001220000 BLDF 5.08/02/180F SN OR BX a practical connector for compact industrial designs.
Where It Is Commonly Used
This connector is suitable for compact power inputs, device-level interfaces, industrial instrumentation, sensor connections, actuator interfaces, and OEM board assemblies that need a simple but dependable pluggable wiring point. Its orange housing can further assist visual differentiation within larger systems.
For more information about Weidmüller, it is useful to compare standard and related BLDF family variants when selecting a broader connector platform.
FAQ
What is the Weidmüller 1001220000?
It is a 2-pole PCB plug-in connector in a female plug format for industrial board-level wiring.
What pitch does it use?
The connector uses a 5.08 mm pitch.
How many poles does the Weidmüller 1001220000 BLDF 5.08/02/180F SN OR BX have?
It has 2 poles.
What conductor sizes are supported?
The listed conductor range is 0.2 to 2.5 mm².
What are the electrical ratings?
The official values are 400 V and 20.8 A under IEC, and 300 V and 18.5 A under UL.
Why would an engineer choose a 2-pole pluggable connector?
It is ideal for dedicated compact wiring tasks such as power entry or simple functional interfaces.
What is the benefit of the 180° outlet?
It supports straight wire routing and can help keep compact device interiors better organized.
Where is this product typically used?
It is typically used in compact industrial electronics, interface boards, instrumentation, and OEM device assemblies.
