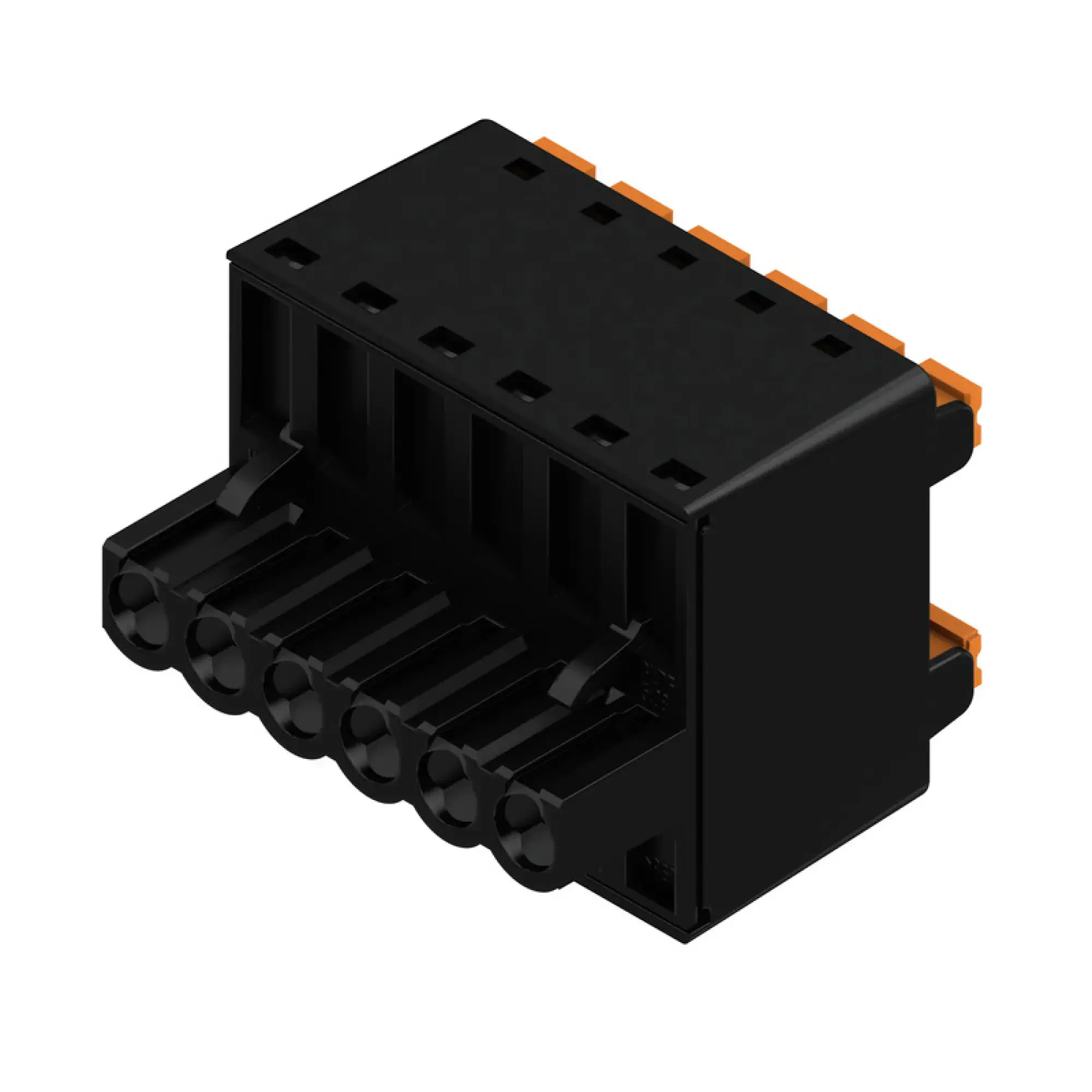

Weidmüller 1000900000 BLDF 5.08/06/180 SN BK BX: Technical Overview of a 6-Pole Female Plug
The Weidmüller 1000900000 BLDF 5.08/06/180 SN BK BX is a 6-pole female plug designed for industrial PCB connection where removable wiring, reliable contact integrity, and practical field handling all matter. As part of the BLDF 5.08 family, it gives engineers a proven connection format with a comfortable pitch and modern PUSH IN technology.
Core Product Identity
The name Weidmüller 1000900000 BLDF 5.08/06/180 SN BK BX female plug points to a connector with a 5.08 mm pitch, 6 poles, and a 180-degree straight conductor outlet. It uses PUSH IN with actuator technology and supports a maximum clamping range of 3.31 mm². These features make it attractive for users who need efficient conductor handling along with a compact but dependable wire-to-board solution.
Why the 6-Pole Format Works Well
The Weidmüller BLDF 5.08/06/180 SN BK BX is often selected when the application needs more than a small signal connection but still benefits from a single compact pluggable interface. Six-pole connectors are common in machine controls, interface electronics, monitoring equipment, control boards, and modular device designs where multiple conductors need to be grouped in an orderly and service-friendly way.
The 5.08 mm pitch provides enough spacing for practical installation, especially in industrial environments where hands-on wiring conditions are not always ideal. This helps reduce handling difficulty and supports more consistent assembly results.
Electrical Ratings and Conductor Range
The listed technical data shows IEC ratings of 400 V / 20.8 A with a conductor range of 0.2 to 2.5 mm². Under UL, the connector is rated at 300 V / 18.5 A with a wire range of AWG 12 to AWG 26. For engineers reviewing connector suitability, these values indicate a product designed for a broad range of industrial signal and moderate power uses.
Typical Use Cases
The Weidmüller 1000900000 BLDF 5.08/06/180 SN BK BX female plug fits well in automation modules, controller boards, compact machine electronics, building technology interfaces, and serviceable PCB assemblies. Because it is removable, it supports easier replacement and faster installation compared with permanently wired solutions.
Common search patterns include Weidmüller 1000900000, Weidmüller BLDF 5.08/06/180 SN BK BX, and Weidmüller 6-pole female plug. These naming patterns are useful in catalogs, technical files, and spare-part management.
FAQ
What type of connector is Weidmüller 1000900000?
It is a female PCB plug for removable wire-to-board connection.
How many poles does the connector have?
This connector has 6 poles.
What pitch is used?
The pitch is 5.08 mm.
What technology is used for conductor termination?
It uses PUSH IN with actuator technology.
What are the listed ratings?
The product data lists 400 V / 20.8 A under IEC and 300 V / 18.5 A under UL.
Where is it typically used?
It is typically used in industrial control electronics, automation modules, monitoring systems, and field-serviceable PCB devices.
For more about Weidmüller, checking the full BLDF family can help standardize connector selection across multiple devices.
