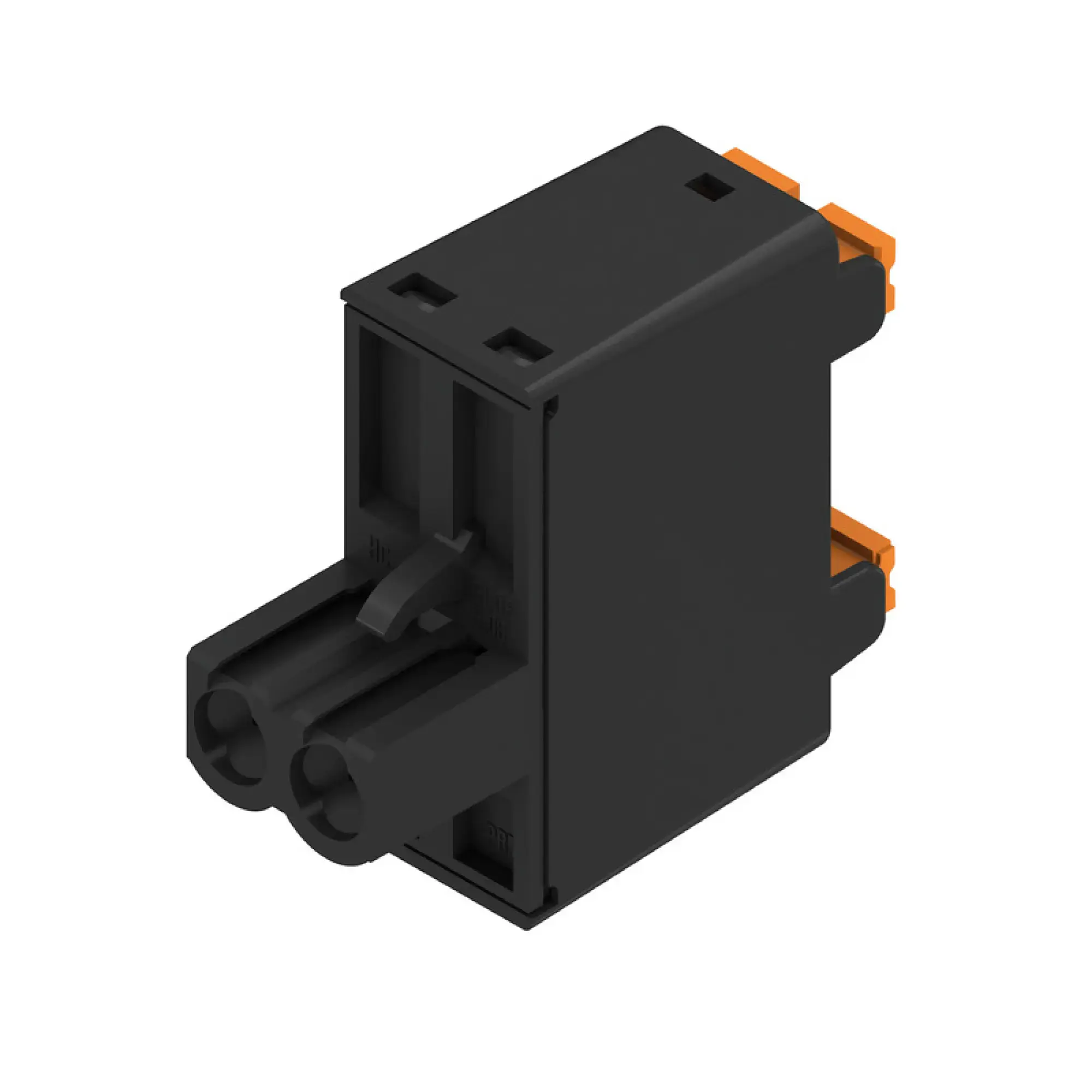

Weidmüller 1000860000 BLDF 5.08/02/180 SN BK BX: Technical Overview of a 2-Pole Female Plug
The Weidmüller 1000860000 BLDF 5.08/02/180 SN BK BX is a compact 2-pole female plug developed for industrial PCB connection where easy wiring, dependable retention, and practical service access all matter. As part of the OMNIMATE Signal portfolio, it supports pluggable connection concepts that simplify installation and make board-level electronics easier to assemble, test, and maintain.
What the Product Name Tells You
The designation Weidmüller 1000860000 BLDF 5.08/02/180 SN BK BX female plug immediately highlights the core product structure. It uses a 5.08 mm pitch, has 2 poles, and features a 180-degree conductor outlet direction. This means the wire entry remains straight rather than angled, which can be beneficial in layouts where direct cable approach is preferred. The BLDF family also uses PUSH IN with actuator technology, which is widely valued for faster wiring and more controlled conductor release during maintenance.
Why a 2-Pole Connector Can Be Strategically Important
Even though it is one of the smaller pole-count variants in the series, the Weidmüller BLDF 5.08/02/180 SN BK BX fills an important role in industrial design. Many applications only require a simple two-line interface for signal, auxiliary power, relay wiring, or compact board-to-wire transitions. In those cases, a 2-pole connector avoids unnecessary footprint growth while preserving the advantages of a removable connection system.
The 5.08 mm pitch remains a strong choice for equipment that must balance conductor capacity with user-friendly handling. Compared with tighter pitch formats, it gives technicians more room during wiring and supports a more forgiving installation experience in real-world control cabinets and electronics housings.
Electrical Performance and Conductor Range
The Weidmüller 1000860000 connector belongs to a series specified with IEC ratings of 400 V / 20.8 A and a conductor range of 0.2 to 2.5 mm². Under UL, the listed values are 300 V / 18.5 A with a wire range of AWG 26 to AWG 12. The connector also has a maximum clamping range of 3.31 mm². These values give it broad relevance across signal and moderate power-related applications in industrial electronics.
Where This Connector Is Commonly Used
The Weidmüller 1000860000 BLDF 5.08/02/180 SN BK BX female plug is often suitable for compact control electronics, power input interfaces, relay modules, sensor boards, alarm devices, and small automation assemblies. Designers choose it when they want the flexibility of a pluggable connector without moving to a larger multi-pole component than the application actually requires.
In search and documentation environments, this item is frequently referenced as Weidmüller 1000860000, Weidmüller BLDF 5.08/02/180 SN BK BX, or Weidmüller 2-pole female plug. These are all natural product lookup variations in engineering and procurement workflows.
FAQ
What kind of connector is Weidmüller 1000860000?
It is a female PCB plug designed for removable wire-to-board connection.
How many poles does the BLDF 5.08/02/180 SN BK BX have?
This model has 2 poles.
What is the pitch of the connector?
The product uses a 5.08 mm pitch.
What connection method does it use?
It uses PUSH IN with actuator technology, which supports quick insertion and controlled release.
What conductor sizes are supported?
The listed series data includes 0.2 to 2.5 mm² under IEC and AWG 26 to AWG 12 under UL.
Where is this connector typically applied?
It is commonly used in compact industrial electronics, auxiliary power connections, relay boards, and service-friendly PCB assemblies.
For more about Weidmüller, reviewing matching headers in the same pitch family can make system design and spare-part planning easier.
