Weidmüller 1000700000 SL-SMT 3.50/15/90RF 1.5SN BK BX: 15-Pole PCB Header Technical Overview

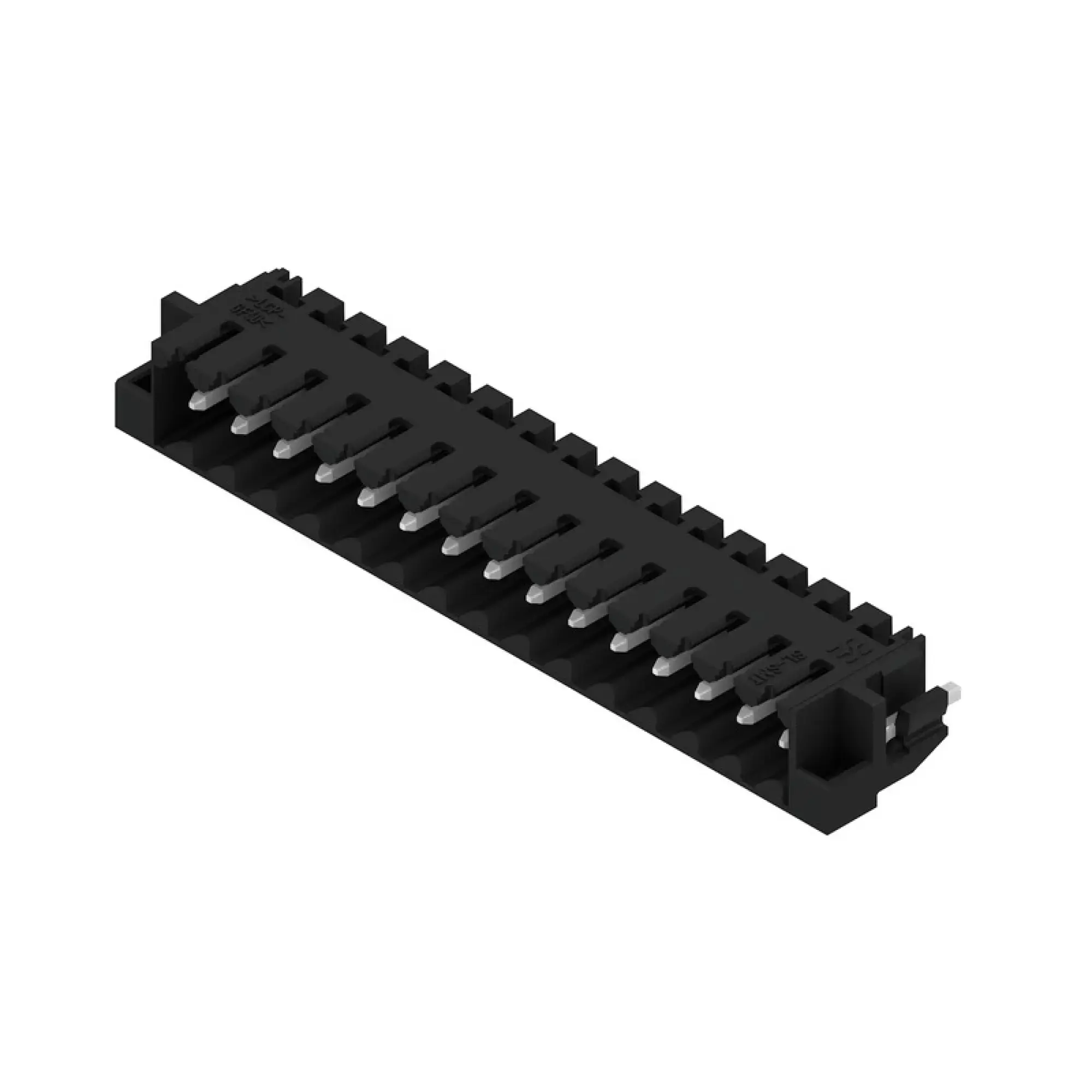

The Weidmüller 1000700000 SL-SMT 3.50/15/90RF 1.5SN BK BX is a 15-pole male PCB header designed for pluggable board connection in industrial and electronic equipment. It is a strong option for systems that require a higher pole count while still working within a compact connector family and a structured board layout strategy.
Technical Definition of the Product
The connector is built with a 3.50 mm pitch, 15 poles, and a 90-degree orientation. It is a male header with clip-on flange and uses THT/THR solder connection with a 1.5 mm solder pin length. This combination supports dependable PCB attachment and a clean mating position in space-constrained enclosures.
Weidmüller 1000700000 Why a 15-Pole Header Can Be Valuable
The Weidmüller 1000700000 male header is especially useful in more complex board-level applications where multiple signals or combined control paths need to be grouped in a single connector. By staying within the SL-SMT 3.50 family, engineers can preserve consistency across a product platform while increasing connection capacity.
Electrical Ratings
The listed electrical data includes IEC ratings of 320 V and 15 A and UL ratings of 300 V and 10 A. In practical product development, this makes the connector appropriate for many control, signal, and light power-related PCB interconnection tasks. The goal is not just electrical passage, but durable and stable contact behavior over the service life of the equipment.
Application Perspective
The Weidmüller SL-SMT 3.50/15/90RF 1.5SN BK BX is suited to controller hardware, monitoring platforms, automation electronics, building technology devices, and custom industrial boards. Its right-angle design can make cable routing and housing integration simpler, particularly when the connector must align with a panel edge or internal side-entry layout.
Weidmüller 1000700000 FAQ
What product type is Weidmüller 1000700000?
It is a PCB male header designed for pluggable board connection.
How many poles does the connector have?
The connector has 15 poles.
What pitch is used?
The product uses a 3.50 mm pitch.
Is it right-angle?
Yes, it is a 90-degree right-angle header.
What are the rated values?
The product is listed at 320 V / 15 A under IEC and 300 V / 10 A under UL.
Why might engineers choose this model?
It provides a higher pole count within a compact pitch family, helping designers consolidate multiple connections in one consistent interface.
For more about Weidmüller, it is useful to compare matching female plugs and neighboring pole-count versions in the same series.
