Weidmüller 1000680000 SL-SMT 3.50/13/90RF 1.5SN BK BX: Technical Review of a 13-Pole PCB Header

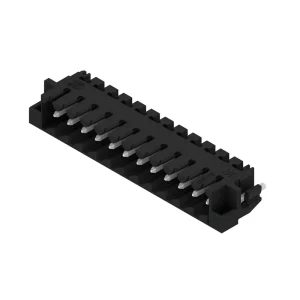

The Weidmüller 1000680000 SL-SMT 3.50/13/90RF 1.5SN BK BX is a 13-pole male header intended for pluggable PCB connection in compact industrial electronics. For product developers, this connector offers a useful combination of multi-pole density, right-angle board integration, and mechanical structure suited to dependable long-term use.

Key Product Structure

The connector uses a 3.50 mm pitch and comes in a 90-degree format. It is defined as a male header with clip-on flange and a THT/THR solder connection, with a 1.5 mm solder pin length. This matters during design because board thickness, soldering method, and mating geometry all influence product reliability and assembly quality.

Design Advantages of the 13-Pole Format

The Weidmüller 1000680000 SL-SMT 3.50/13/90RF 1.5SN BK BX male header is a useful option when a system needs more than the standard lower-pole configurations but still wants to remain in a compact pitch family. It supports multi-signal routing and modular plug-in architecture in products such as control interfaces, gateway electronics, monitoring units, and intelligent building systems.

Electrical Profile

This connector is listed with IEC values of 320 V and 15 A and UL values of 300 V and 10 A. Those ratings support its use in a broad range of control and signal applications where engineers need a reliable board-level interconnect that aligns with recognized industrial specification frameworks.

Typical Applications and Engineering Relevance

Because it is a 13-pole PCB male header, this model fits systems that require structured multi-contact interfaces without oversizing the connector footprint. It can be a practical choice in compact PLC-related electronics, sensor hubs, custom communication boards, and machine-level electronics where modularity and service-friendly design are important.

FAQ

What is Weidmüller 1000680000?

It is a 13-pole PCB male header for pluggable board connection.

What pitch does the connector use?

The connector uses a 3.50 mm pitch.

Is the connector right-angle?

Yes, it is a 90-degree connector.

What connection type does it use on the PCB?

It uses THT/THR solder connection.

What are the electrical ratings?

The listed ratings are 320 V / 15 A under IEC and 300 V / 10 A under UL.

Where would this connector typically be used?

It is suited to industrial electronics, control boards, communication modules, and compact embedded systems requiring a pluggable header.

For more about Weidmüller, reviewing the complete OMNIMATE family is useful when selecting mating connectors and pole-count alternatives.
