Weidmüller 1000200001 BLF 5.08HC/19/90 SN BK BX Connector Overview

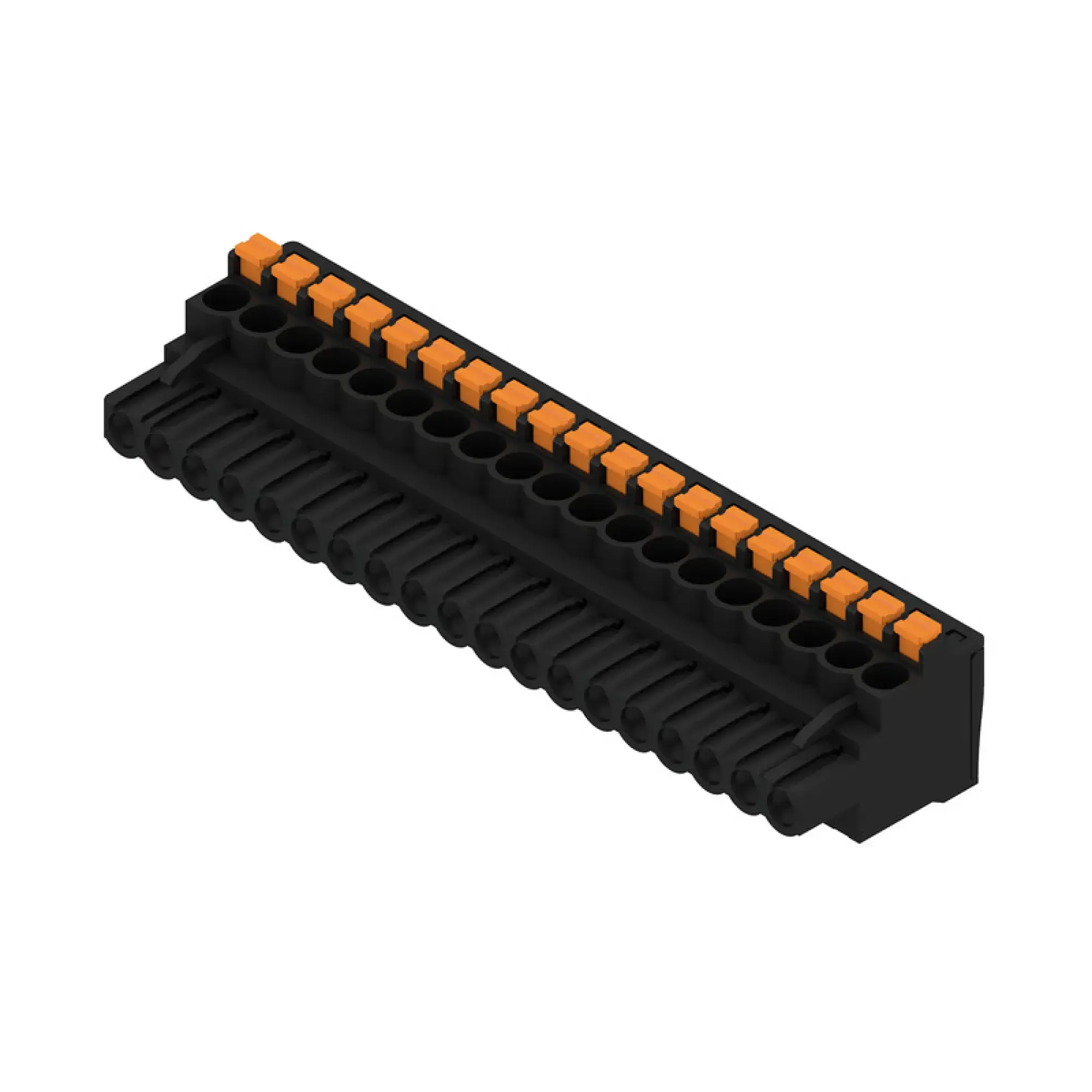

The Weidmüller 1000200001 BLF 5.08HC/19/90 SN BK BX is a 19-pole PCB plug-in connector created for demanding applications where a large number of conductors must be managed through a single removable interface. It is a strong match for engineers searching for a high-pole-count pluggable terminal block, a 5.08 mm Weidmüller connector, or a right-angle PCB female plug.
Why This Model Is Technically Valuable
The Weidmüller BLF 5.08HC/19/90 SN BK BX supports dense connection architecture without sacrificing readability. In many industrial devices, increasing functionality leads to more signals, more control lines, and more interface complexity. A 19-pole connector helps keep that complexity under control by concentrating conductors in one clearly defined connection zone.
This is useful not only for the original design team but also for installers and service engineers. A clean connection structure reduces ambiguity and makes troubleshooting more efficient.
Core Design Benefits
The Weidmüller 1000200001 uses a 5.08 mm pitch, a 90-degree wire entry, and a PUSH IN spring connection system with actuator support. These characteristics make it well suited to industrial PCB assemblies where conductor handling must be quick, repeatable, and mechanically sensible.
The right-angle entry is especially useful in products that have space limitations. It allows conductors to run in a controlled path instead of rising vertically above the board. This improves cable management and can make enclosure layouts easier to maintain.
Common Use Cases
The Weidmüller 1000200001 BLF 5.08HC/19/90 SN BK BX PCB plug-in connector is relevant in automation controllers, power distribution subassemblies, monitoring devices, machine interfaces, communication hardware, and energy management electronics. It is particularly attractive where one connector needs to carry a large set of grouped conductors.
The removable concept also supports better service routines. If a board must be exchanged or inspected, the connector makes the process more structured and less error-prone than fixed wiring alternatives.
For more information about Weidmüller, it is helpful to compare this model with adjacent pole-count variants in the same family.
Why a 19-Pole Version Is a Strategic Choice
Choosing a 19-pole connector is often about exact fit. Instead of using an oversized interface and leaving positions unused, the design can stay aligned with the real conductor count. That leads to a cleaner product architecture and better use of PCB space.
FAQ
What is the Weidmüller 1000200001 used for?
It is used for removable 19-conductor PCB connections in industrial and automation electronics.
Why would a designer choose 19 poles?
Because the actual application may require exactly that number of conductors, making the design more efficient and easier to document.
Is this a good fit for service-friendly equipment?
Yes. Its pluggable design supports replacement, inspection, and organized maintenance routines.
Does the right-angle format improve enclosure layout?
Yes. It helps guide wiring sideways and can reduce congestion above the PCB.
Is this connector relevant for standardized product families?
Absolutely. It fits well into platform-based product design where multiple variants share the same connection philosophy.
