Weidmüller 1000090001 BLF 5.08HC/08/90 SN BK BX Product Guide

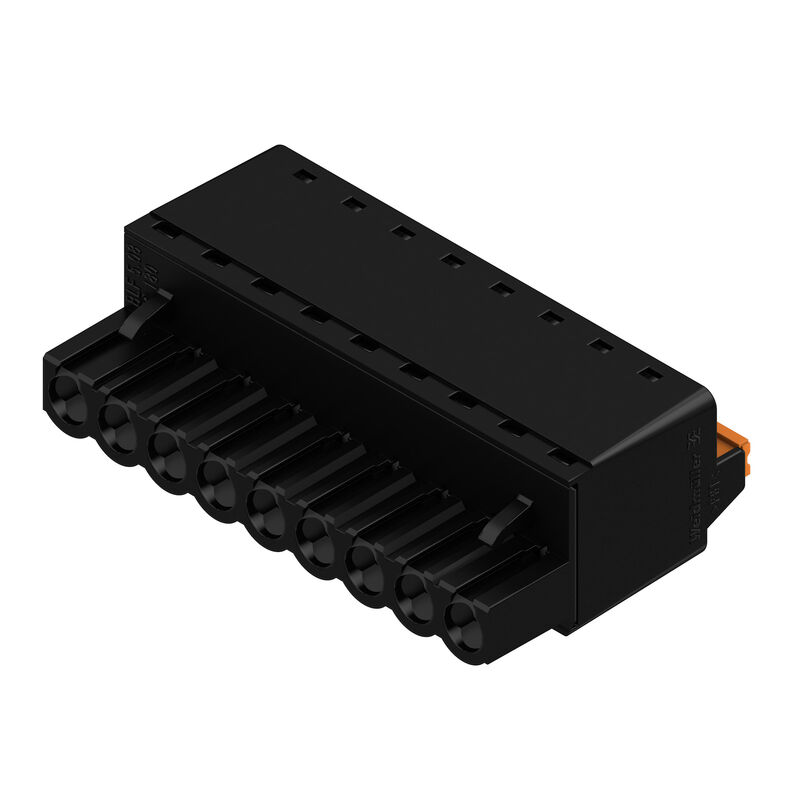

The Weidmüller 1000090001 BLF 5.08HC/08/90 SN BK BX PCB plug-in connector is an 8-pole female plug intended for reliable wire-to-board interfaces in industrial and professional electronic systems. For engineers searching for an 8-pole PCB connector, Weidmüller pluggable terminal block, or a 5.08 mm right-angle female plug, this model represents a practical and scalable connectivity choice.
The 8-pole layout makes this version especially attractive for more complex board interfaces. It can accommodate grouped control lines, mixed power and signal wiring, modular I/O connections, and compact subassemblies that demand a higher conductor count without moving to an excessively large footprint.
Weidmüller 1000090001 Why the 8-Pole Format Is Valuable
The Weidmüller BLF 5.08HC/08/90 SN BK BX occupies an important position in connector planning because it provides meaningful channel density while preserving the familiar handling characteristics of the BLF 5.08HC family. This matters in system design. As devices become more functional, connection counts often increase. An 8-pole connector can consolidate those lines into one organized removable interface instead of forcing multiple smaller connectors across the board.
That helps simplify layout decisions, labeling, and field service. It can also improve the visual logic of the assembly, which is an underrated benefit in industrial equipment where technicians need to understand wiring fast and without ambiguity.
Technical Characteristics That Matter in Practice
The Weidmüller 1000090001 PCB plug-in connector is built on a 5.08 mm pitch and uses a 90-degree wire entry. It is a female plug with PUSH IN spring connection technology and actuator support, intended for removable connection at the PCB interface. In the product data, this version is associated with industrial current and voltage ratings that make it relevant for serious device applications rather than light-duty consumer electronics.
What stands out operationally is the combination of capacity and installation logic. The 8-position format enables broader connection grouping, while the spring-based connection principle supports efficient wiring processes. For panel builders and equipment manufacturers, that can translate into better assembly consistency and easier maintenance routines.
Weidmüller 1000090001 Common Use Cases
The Weidmüller 1000090001 BLF 5.08HC/08/90 SN BK BX female plug can be used in industrial controllers, power interface boards, HVAC electronics, instrumentation devices, alarm systems, process modules, and machine-level electronics where an 8-line removable connection is desirable. It is particularly useful in products where a clean field wiring strategy is part of the design requirement.
The right-angle entry also helps in tightly dimensioned enclosures. Wiring can remain more controlled, more legible, and easier to inspect. When maintenance teams open a device, clear cable routing and logically grouped terminations save time and reduce errors.
For more information about Weidmüller, it is worth reviewing matching headers and family-compatible connection components.
How It Supports Better System Design
A connector should not be evaluated only by its datasheet headline values. It should also be evaluated by how well it supports the complete product lifecycle. The Weidmüller 8-pole PCB plug-in connector supports modularity, straightforward replacement, and organized board-level wiring. That is especially useful for OEMs and integrators who must balance compact design with clear service access.
Because the connector belongs to a broader family, it also supports platform-based engineering. That means product variants with different conductor counts can still follow a familiar connection philosophy, which is valuable for standardization across a portfolio.
Weidmüller 1000090001 FAQ
What is the main advantage of the Weidmüller 1000090001?
Its main advantage is that it provides an 8-pole removable PCB connection in a compact, structured format suitable for industrial wiring and service-friendly equipment design.
Why would someone need an 8-pole PCB plug-in connector?
An 8-pole connector is helpful when a device has multiple grouped conductors that should remain together in one interface, such as mixed control, signal, and low-power connections.
Is this connector appropriate for industrial automation?
Yes. The BLF 5.08HC series is positioned for industrial electronics and automation-related PCB connectivity, where reliability and practical handling matter.
What is the benefit of the PUSH IN spring system?
It supports efficient conductor insertion and a more standardized wiring process, which can be valuable during serial production and maintenance work.
Does the 90-degree layout help in compact enclosures?
Yes. It helps direct wiring sideways, which can improve space use and create a more organized internal cable path.
