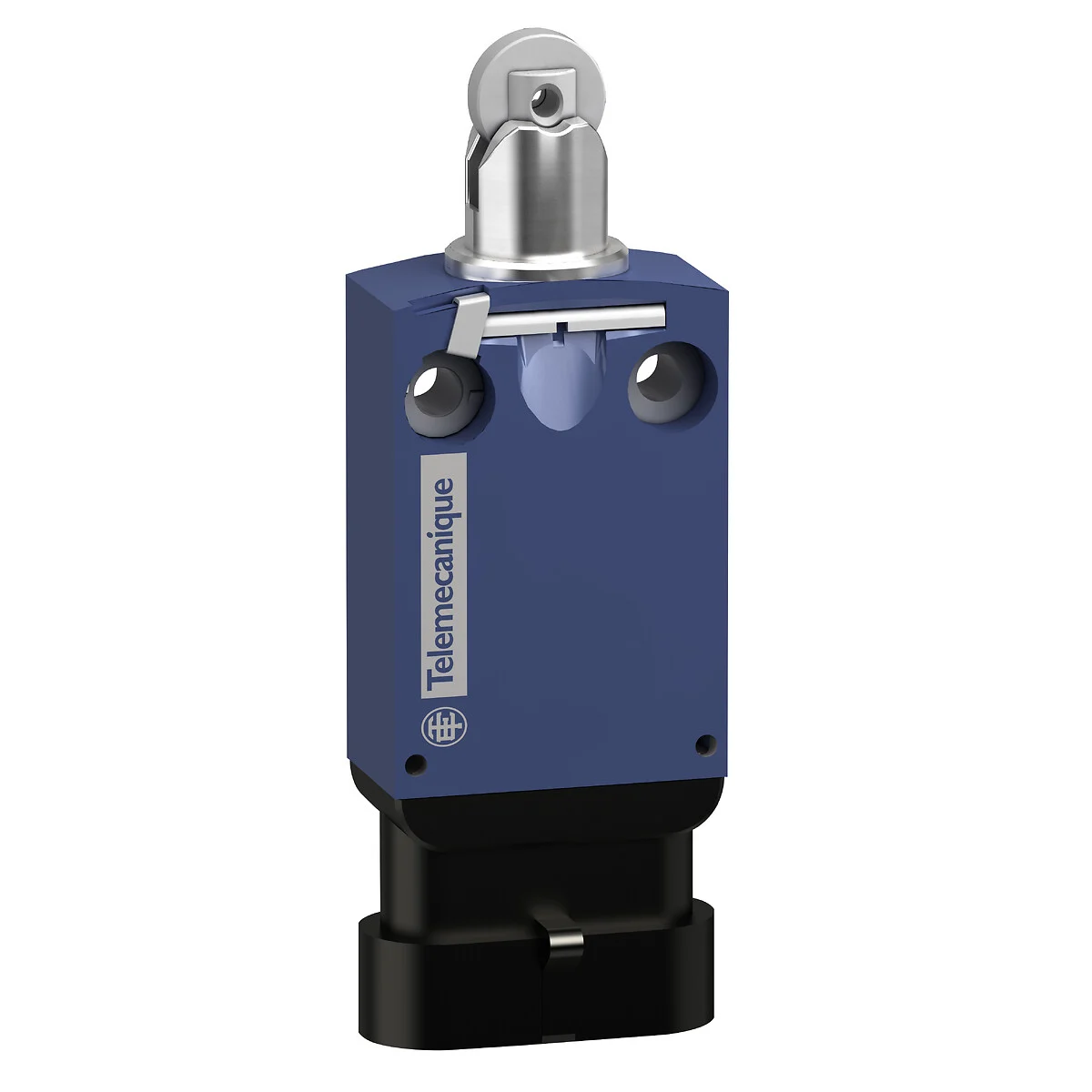

Telemecanique ZCMC21L5 Pre-Cabled Connection: 5 m Cable Assembly for XC Standard Limit Switch Integration
The Telemecanique ZCMC21L5 Pre-Cabled Connection is designed for teams who want to reduce wiring variability and speed up installation in XC Standard limit switch deployments. Instead of terminating conductors directly at the switch each time, pre-cabled assemblies help standardize routing, reduce panel labor, and lower the probability of wiring errors—especially in high-volume machine builds or maintenance-driven replacement workflows.
In practical automation work, consistency is a KPI: consistent wiring reduces troubleshooting time, and consistent replacement procedures reduce downtime. If you’re standardizing industrial sensing components across multiple machines, you can also review Telemecanique sensor family options commonly used in automation environments.
What ZCMC21L5 Is
ZCMC21L5 is a pre-cabled connection component intended for XC Standard limit switch assemblies. It is commonly associated with a compatible switch body (frequently referenced alongside ZCMD21 family bodies) and provides a ready-to-route cable length for field or machine wiring.
Key Technical Characteristics
- Component type: Pre-cabled connection (ZCMC family)
- Poles: 2
- Contacts: 1 NC + 1 NO
- Contact operation: Snap action
- Electrical connection: Cable
- Cable length: 5 m
Why 1NC + 1NO Is Common
Mixed-contact arrangements are practical for control logic. A normally closed contact can be used for monitoring continuity (and detecting cable breaks), while a normally open contact can provide a straightforward event signal. The exact safety implications depend on your application design and standards compliance.
Where Pre-Cabled Connections Deliver Value
- Machine builders: predictable harnessing and faster assembly
- Maintenance teams: faster swap and restore procedures
- Harsh environments: reduced terminal exposure during field wiring
Telemecanique ZCMC21L5 Installation and Commissioning Notes
1) Plan Cable Routing Early
A 5 m cable is an advantage only if routing is clean. Avoid sharp bends, keep away from hot surfaces, and provide strain relief at moving interfaces.
2) Validate Input Logic at the PLC
Before commissioning, confirm how your PLC interprets NC vs NO states. Document the “healthy” and “fault” states so future troubleshooting is unambiguous.
3) Avoid Noise Coupling
Route limit switch cabling away from VFD motor leads and high-current runs when possible. Where crossings are required, cross at 90 degrees to reduce induced noise.
Telemecanique ZCMC21L5 Typical Applications
- Conveyors: end-of-travel and diverter position feedback
- Packaging machines: door/guard position signaling and sequencing
- Assembly lines: fixture presence and clamp position confirmation
Telemecanique ZCMC21L5 FAQ
Does ZCMC21L5 replace the switch body?
No. It is a connection/cabling component used with compatible XC Standard bodies and heads.
Why choose a pre-cabled option?
It can reduce wiring variability, speed installation, and simplify maintenance replacement—especially in multi-machine fleets.
Is 5 m always the right length?
Not always. Too long can create routing clutter; too short forces splices. Select length based on machine layout and cabinet location.
How do I reduce downtime during replacement?
Standardize routing, label both ends, and document PLC input behavior so technicians can validate correct operation immediately after installation.
