Telemecanique XZCP1541L5 Cordset: M12 Male Straight 4-Pin Pre-Wired Connectivity for Industrial Sensors
Machine uptime is strongly influenced by wiring consistency. Many recurring faults are not caused by the sensor itself, but by cable strain, inconsistent field terminations, or connector loosening that appears only under vibration. The Telemecanique XZCP1541L5 cordset is designed to reduce that variability through a standardized, pre-wired connection assembly for M12-based sensor installations.
This technical guide explains what the Telemecanique XZCP1541L5 cordset is, why M12 4-pin straight connectivity is widely used in industrial automation, and how to install the assembly so it remains reliable across maintenance cycles.
What the XZCP1541L5 Is

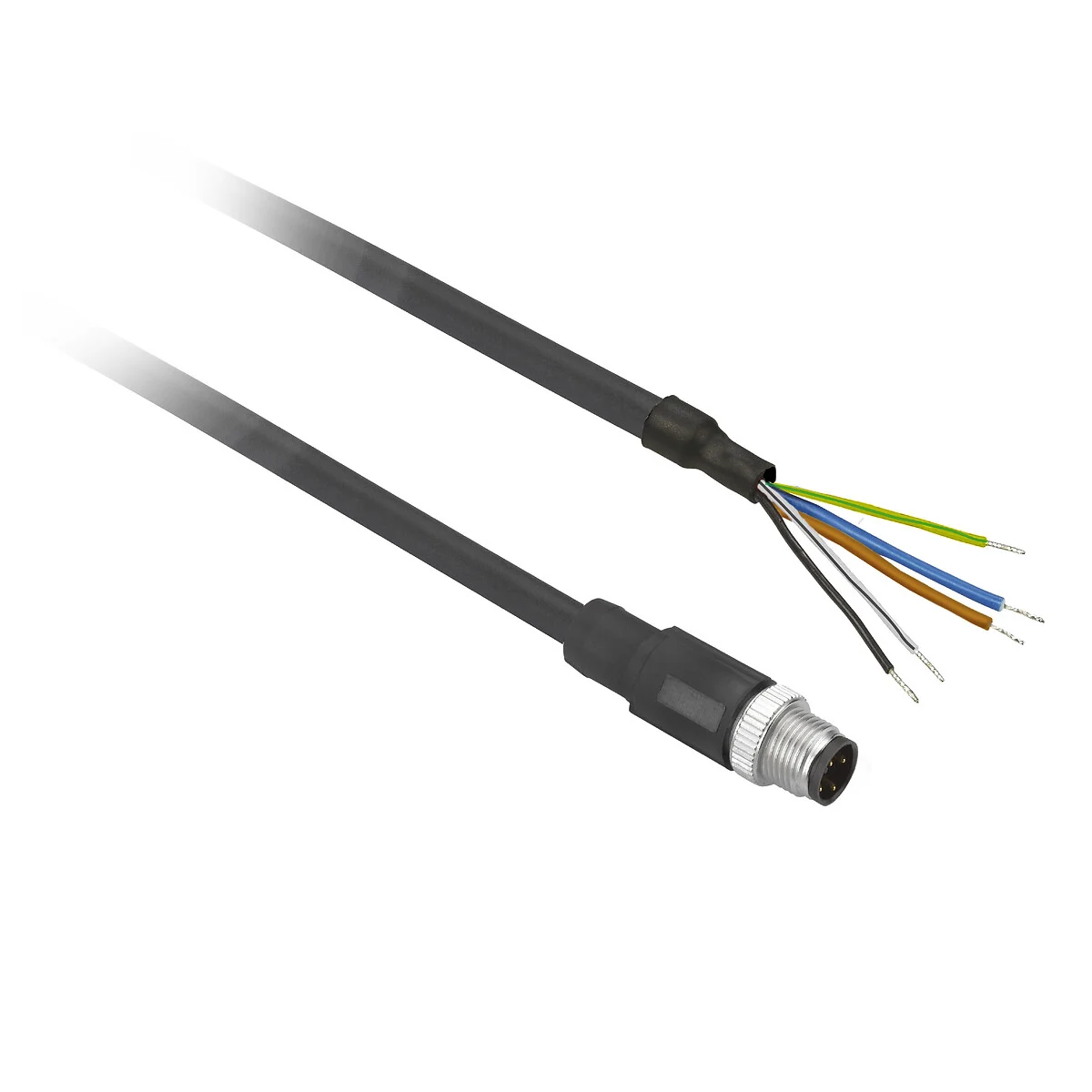

The product reference identifies the Telemecanique XZCP1541L5 cordset as a pre wired connector with M12 male straight geometry and 4 pins.The “L5” code convention is typically used in this family to indicate a 5 m cable length, and the downloadable datasheet is provided in the manufacturer documentation.
In operational terms, it provides a repeatable, factory-defined interface between field devices and the wiring infrastructure that leads to junction points, I/O islands, or cabinet entries.
Why M12 4-Pin Standardization Matters
M12 connectors are widely adopted because they support robust coupling, predictable pin mapping, and field serviceability. A 4-pin structure is commonly used for sensors that need supply and output lines within a single standardized connector. In real facilities, the value is not only electrical—it is organizational:
- Maintenance teams can replace a cable assembly quickly without re-terminating conductors.
- Spare strategies become simpler because fewer variants cover more devices.
- Commissioning becomes more repeatable across multiple machines.
For the Telemecanique XZCP1541L5 cordset, straight geometry is often preferred when there is sufficient clearance behind the device and the cable can be routed without tight bending at the connector exit.
Installation Discipline: Strain Relief, Routing, and Documentation
Even a high-quality cordset can fail early if installed poorly. To preserve the integrity of the Telemecanique XZCP1541L5 cordset:
- Provide strain relief close to the connector so cable movement does not transmit torque into the coupling.
- Control bend radius at frame transitions and avoid sharp edges.
- Separate from high-noise wiring such as motor drives and high-current feeders where feasible.
- Label both ends so technicians can identify endpoints without trial-and-error.
These steps reduce intermittent faults that can otherwise consume hours of troubleshooting because the failure appears only under vibration or temperature changes.
Operational Use: Turning Connectivity into a Maintainable Module
A cordset becomes especially valuable when it is treated as a replaceable module. A practical troubleshooting routine is to substitute a known-good cordset to isolate whether the fault is in the sensor, the cable assembly, or the I/O channel. The Telemecanique XZCP1541L5 cordset supports this approach by providing a defined, consistent connectivity element rather than a custom harness segment built differently on each machine.
In multi-machine environments, standardizing on a small set of cable lengths and connector styles can materially reduce spare inventory complexity while improving restoration speed during downtime incidents.
For broader connector ecosystem patterns, compatible conventions, and installation references, see Telemecanique sensor.
FAQ
- What is the Telemecanique XZCP1541L5 cordset?
It is a pre wired connector assembly with M12 male straight geometry and 4 pins. - Why choose M12 connectivity?
It supports robust coupling, standardized pin mapping, and fast field replacement. - What is the most common failure cause in cordsets?
Insufficient strain relief that allows vibration-driven movement at the connector interface. - How does a cordset help troubleshooting?
It enables quick swap testing to isolate cable-related issues from sensor or I/O issues. - Where is it typically used?
Sensor networks and modular I/O architectures where repeatable connectivity is a governance requirement.
When routing and strain relief are engineered deliberately, the Telemecanique XZCP1541L5 cordset improves uptime by reducing connector-related intermittent faults and accelerating maintenance recovery.
