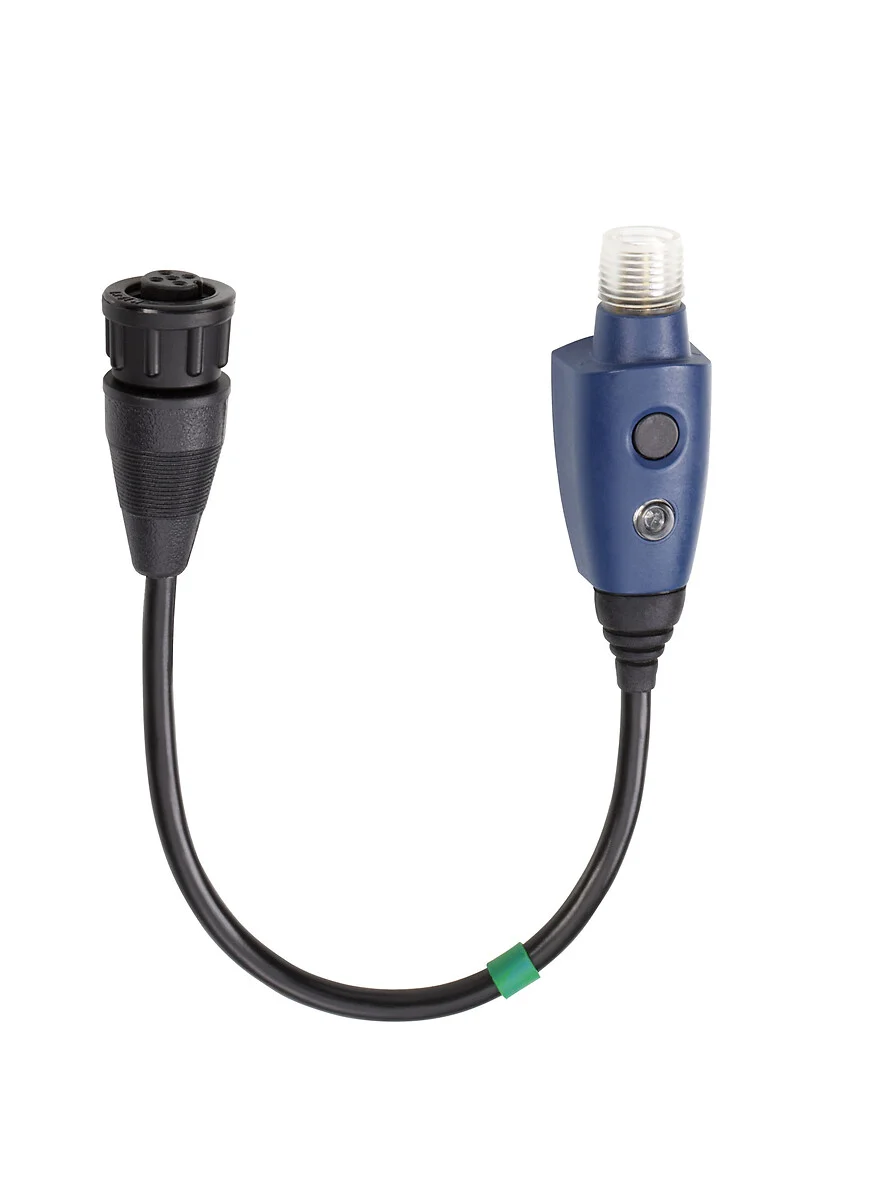

Telemecanique XXS30B4AM12 Ultrasonic Sensor: M30 Analog Distance Measurement up to 400 mm
Reliable distance measurement in industrial automation requires sensing technologies that remain stable regardless of surface color, transparency, or ambient lighting conditions. The Telemecanique XXS30B4AM12 ultrasonic sensor is engineered to provide analog distance feedback within a cylindrical M30 housing, supporting applications that demand consistent and repeatable measurement up to 400 mm. By leveraging ultrasonic time-of-flight technology, this device ensures predictable detection even in visually complex production environments.
The Telemecanique XXS30B4AM12 ultrasonic sensor is designed for integration into PLC-based systems where continuous distance monitoring or proportional control signals are required rather than simple discrete switching.
Ultrasonic Detection Technology
The Telemecanique XXS30B4AM12 ultrasonic sensor operates by emitting high-frequency sound pulses and measuring the echo return time reflected from a target object. Because detection is based on acoustic reflection rather than optical reflection, performance remains stable across different surface finishes, including transparent plastics, dark materials, and reflective metals.
This technology makes the Telemecanique XXS30B4AM12 ultrasonic sensor particularly suitable for applications where optical sensors may experience instability due to glare, ambient sunlight, or inconsistent surface textures.
Core Technical Specifications
- Sensor type: Ultrasonic proximity sensor
- Housing format: Cylindrical threaded M30
- Nominal sensing range: Up to 400 mm
- Output type: Analog signal output
- Supply voltage: 12–24 V DC
- Electrical connection: M12 male connector
- Protection rating: IP67
The M30 housing provides mechanical durability and compatibility with standard industrial mounting brackets. The Telemecanique XXS30B4AM12 ultrasonic sensor is therefore suitable for installation in packaging equipment, material handling systems, and automated storage systems.
Analog Output Integration
The analog output of the Telemecanique XXS30B4AM12 ultrasonic sensor enables proportional distance measurement rather than simple ON/OFF switching. This allows precise level monitoring, object positioning feedback, and distance-based control algorithms.
During electrical integration, engineers should:
- Verify correct analog input configuration on the PLC
- Confirm voltage supply stability within 12–24 V DC range
- Ensure proper M12 connector pin mapping
- Maintain cable separation from high-current power lines
Accurate scaling of the analog signal within the control program is critical to achieving precise distance interpretation.
Mechanical Installation Governance
Stable ultrasonic measurement depends on proper mechanical positioning. The Telemecanique XXS30B4AM12 ultrasonic sensor must be mounted with a clear acoustic path between the sensing face and the target object. Obstructions within the acoustic cone can distort readings or cause signal attenuation.
Recommended installation guidelines include:
- Mounting perpendicular to the target surface
- Avoiding strong airflow directly across the sensing path
- Maintaining spacing between adjacent ultrasonic devices to prevent interference
Temperature fluctuations can influence sound propagation speed. Commissioning should therefore include validation under actual operating conditions.
Environmental Performance
The IP67 protection rating of the Telemecanique XXS30B4AM12 ultrasonic sensor ensures resistance to dust ingress and temporary immersion when properly installed. However, protection performance depends on secure connector coupling and proper cable strain relief.
Industrial applications involving coolant spray or high humidity environments benefit from the sealed M12 connector interface.
Typical Industrial Applications
- Liquid level monitoring in tanks
- Distance-based conveyor control
- Packaging line height verification
- Bulk material measurement
- Automated pallet positioning systems
Because detection is independent of optical characteristics, the Telemecanique XXS30B4AM12 ultrasonic sensor provides reliable performance in variable lighting and reflective conditions.
For additional industrial sensing solutions and integration strategies, consult the Telemecanique sensor ecosystem.
FAQ
- What is the sensing range of the Telemecanique XXS30B4AM12 ultrasonic sensor?
Up to 400 mm nominal range. - What type of output does it provide?
Analog signal output for proportional distance measurement. - Is it affected by object color?
No, ultrasonic detection is independent of color and reflectivity. - What supply voltage is required?
12–24 V DC. - What is a common installation mistake?
Mounting at improper angles or placing obstacles within the acoustic cone.
When correctly integrated and calibrated, the Telemecanique XXS30B4AM12 ultrasonic sensor delivers precise and stable distance measurement performance across demanding industrial automation environments.
