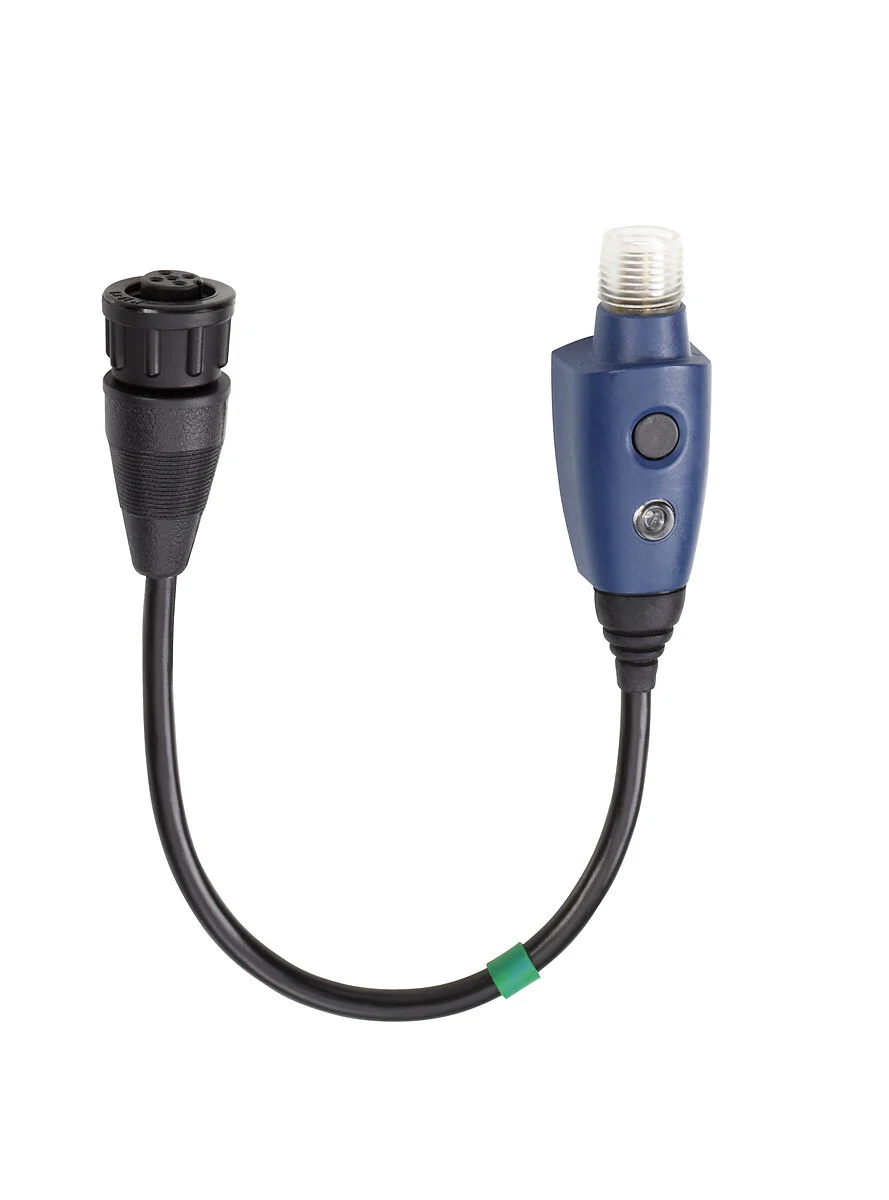

Telemecanique XXS30B2PM12 Ultrasonic Sensor: M30 Cylindrical 200 mm Distance Detection with PNP Output
Industrial automation systems increasingly require sensing technologies that maintain stable performance regardless of surface color, reflectivity, or environmental lighting conditions. The Telemecanique XXS30B2PM12 ultrasonic sensor is engineered as a cylindrical M30 device designed for distance-based detection up to 200 mm. By utilizing ultrasonic time-of-flight measurement, this sensor ensures consistent object detection across diverse material types and challenging production environments.
The Telemecanique XXS30B2PM12 ultrasonic sensor integrates discrete PNP switching output with M12 connector connectivity, supporting standardized industrial installation practices.
Ultrasonic Detection Technology
The Telemecanique XXS30B2PM12 ultrasonic sensor operates by emitting high-frequency sound pulses and measuring the echo reflected from a target object. Detection is based on acoustic wave reflection rather than optical reflection. As a result, the sensor remains unaffected by transparent materials, dark surfaces, or reflective packaging.
This makes the Telemecanique XXS30B2PM12 ultrasonic sensor particularly suitable for applications where optical sensors may produce unstable readings due to glare or inconsistent surface textures.
Core Technical Specifications
- Sensor type: Ultrasonic proximity sensor
- Housing format: Cylindrical threaded M30
- Nominal sensing range: Up to 200 mm
- Output type: Discrete PNP
- Output configuration: Programmable NO or NC
- Supply voltage: 12–24 V DC
- Electrical connection: M12 male connector
- Protection rating: IP67
The robust M30 housing of the Telemecanique XXS30B2PM12 ultrasonic sensor provides mechanical durability in demanding industrial settings.
Electrical Integration and PLC Compatibility
The PNP discrete output of the Telemecanique XXS30B2PM12 ultrasonic sensor aligns with sourcing PLC input modules commonly used in automation control panels. During commissioning, engineers should verify:
- Correct M12 connector pin assignment
- Stable voltage supply within 12–24 V DC
- Selection of NO or NC output logic according to system safety policy
- Separation of signal cables from high-current motor wiring
Programmable output configuration provides flexibility when standardizing across different machine platforms.
Mechanical Installation and Acoustic Considerations
Proper installation is essential for reliable ultrasonic operation. The Telemecanique XXS30B2PM12 ultrasonic sensor must be mounted with a clear acoustic path between the sensor face and the target object.
Installation best practices include:
- Mounting perpendicular to the target surface
- Avoiding obstructions within the acoustic cone
- Maintaining spacing between adjacent ultrasonic sensors
- Validating performance under real operating conditions
Environmental conditions such as strong airflow or extreme temperature variation may influence sound propagation. Commissioning should therefore include validation during actual production scenarios.
Environmental Performance
With IP67 protection rating, the Telemecanique XXS30B2PM12 ultrasonic sensor resists dust ingress and temporary immersion when properly installed. Protection performance depends on secure M12 connector coupling and appropriate cable strain relief.
Industrial washdown areas benefit from sealed connector interfaces that prevent moisture penetration.
Typical Industrial Applications
- Object presence detection on conveyors
- Packaging line product verification
- Transparent material detection
- Liquid level monitoring
- Distance-based position control
The Telemecanique XXS30B2PM12 ultrasonic sensor ensures stable detection in applications where optical systems may struggle with surface variability.
For complementary sensing technologies and system integration support, explore the Telemecanique sensor portfolio.
FAQ
- What is the sensing range of the Telemecanique XXS30B2PM12 ultrasonic sensor?
Up to 200 mm nominal range. - What type of output does it provide?
PNP discrete output with programmable NO or NC configuration. - Is detection affected by object color?
No, ultrasonic detection is independent of color and reflectivity. - What voltage supply is required?
12–24 V DC. - What is a common installation error?
Mounting at improper angles or obstructing the acoustic path.
With structured installation and correct calibration, the Telemecanique XXS30B2PM12 ultrasonic sensor delivers reliable distance-based detection in industrial automation environments requiring stability and repeatability.
