Telemecanique XX512A2PAM8 Ultrasonic Sensor Technical Guide

The Telemecanique XX512A2PAM8 ultrasonic sensor is a cylindrical M12 ultrasonic sensor from the Telemecanique Ultrasonic Sensors XX range. It is designed for general-purpose detection tasks and uses a diffuse detection system. This makes it suitable for non-contact object detection where color, surface finish, or transparency may be difficult for optical sensors.

Technical Overview

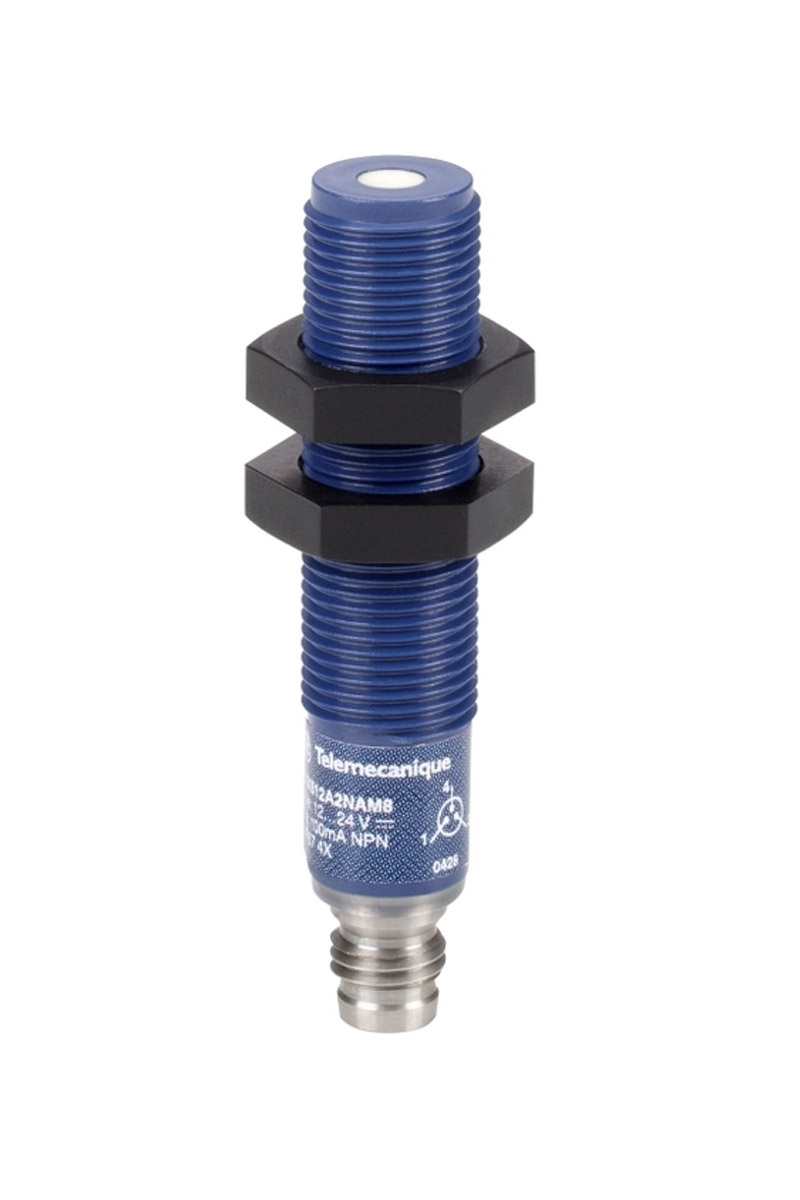

XX512A2PAM8 is an ultrasonic sensor with a cylindrical M12 plastic body. It belongs to the XX5 sensor family and uses a discrete output signal. The output function is 1 normally open contact, and the discrete output type is PNP. It uses a 3-wire wiring technique and operates with a 12 to 24 V DC rated supply voltage with reverse polarity protection.

Connection and Housing

The electrical connection is made through a male M8 connector with 3 pins. The enclosure material is listed as ULTEM, a high-performance plastic often used where dimensional stability and resistance are important. The compact M12 format makes this sensor practical for installations where space is limited but reliable distance-based detection is needed.

Detection Principle

Ultrasonic sensors emit sound waves and evaluate the returning echo from a target. Unlike photoelectric sensors, ultrasonic sensing is less dependent on object color or light reflection. This can be valuable when detecting transparent packaging, dark materials, shiny surfaces, liquid levels, or irregular objects.

Application Areas

The Telemecanique XX512A2PAM8 ultrasonic sensor can be used in packaging equipment, material handling systems, small conveyor stations, level detection, presence sensing, and compact automation assemblies. Its 0.1 m nominal sensing distance makes it suitable for short-range detection tasks where the object is positioned close to the sensor face.

Output and Control Integration

The PNP normally open output is commonly used in DC automation systems. When the sensor detects the target according to its configured operating principle, the output can provide a signal to a PLC input, relay interface, or machine control circuit. As with any sensor installation, voltage, wiring, output logic, connector type, and environmental conditions should be checked before replacement or commissioning.

For more information about industrial sensing products, visit Telemecanique sensors.

FAQ

What is Telemecanique XX512A2PAM8?

Telemecanique XX512A2PAM8 is a cylindrical M12 ultrasonic sensor from the XX5 general-purpose sensor family.

What type of output does XX512A2PAM8 have?

It has a discrete PNP output with 1 normally open function.

What supply voltage does the sensor use?

The sensor is rated for 12 to 24 V DC and includes reverse polarity protection.

What connector does XX512A2PAM8 use?

It uses a male M8 connector with 3 pins.

What is the sensing method?

The sensor uses ultrasonic diffuse detection. It detects objects by emitting ultrasonic waves and evaluating the returned echo.

What is the product type of Telemecanique XX512A2PAM8?

The product type is an ultrasonic sensor for industrial object detection and automation applications.
