Telemecanique XUZM2003 Fixing Bracket for XU Photoelectric Sensors

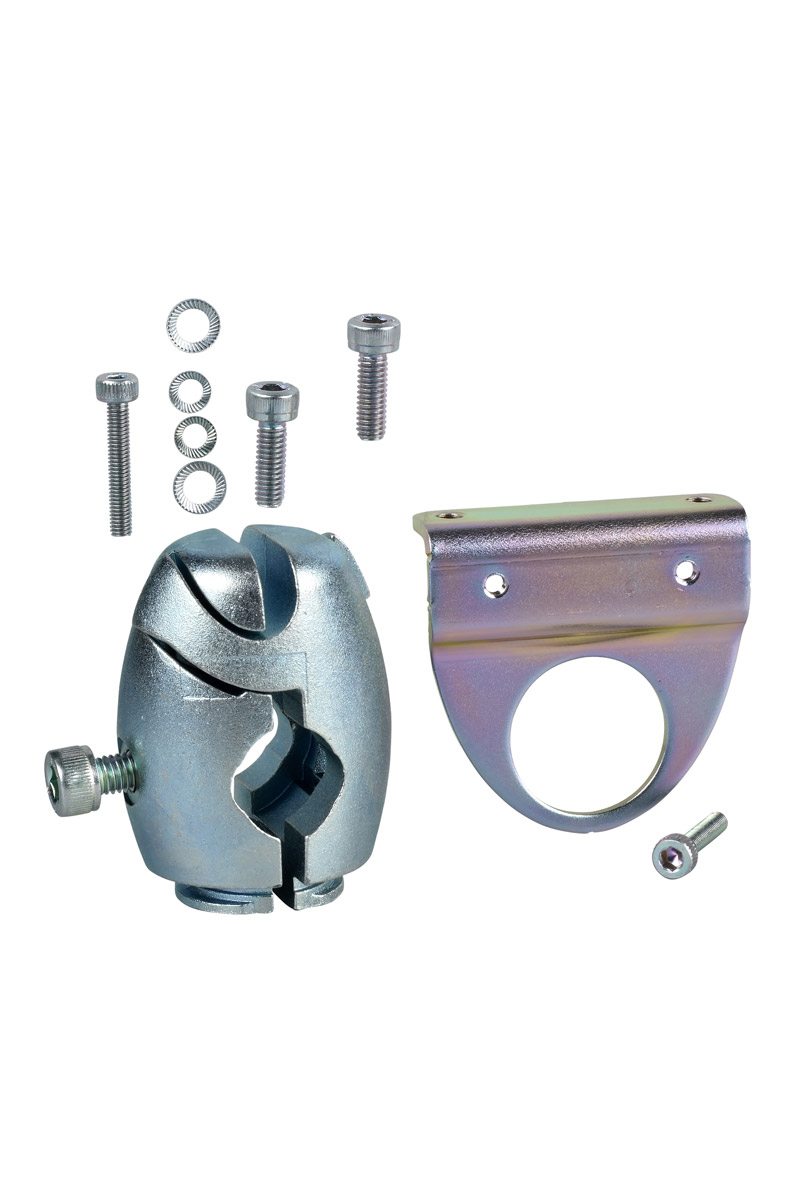

The Telemecanique XUZM2003 fixing bracket is a mounting and fixing accessory designed for use with Telemecanique Photoelectric Sensors XU. It is specified as a 3D fixing kit with a ball joint mounted fixing bracket for XUM miniature sensor applications. This makes it especially relevant in industrial automation setups where accurate sensor positioning, repeatable alignment, and compact installation space are important. According to the product data sheet, XUZM2003 belongs to the Telemecanique Photoelectric sensors XU range and is categorized as a mounting and fixing accessory with the accessory type defined as a fixing bracket. :contentReference[oaicite:0]{index=0}

Unlike a general-purpose mechanical holder, this bracket is intended to support precise sensor orientation. In photoelectric sensing, the mechanical position of the sensor can directly affect detection consistency. A miniature sensor may be used in packaging lines, conveyors, object detection points, access control equipment, or compact machine frames. In these environments, a bracket must do more than simply hold the sensor in place; it must allow practical alignment while maintaining mechanical stability during operation.

Telemecanique XUZM2003 Product Type and Application Context

The product type for Telemecanique XUZM2003 fixing bracket is a photoelectric sensor accessory. More specifically, it is a 3D fixing kit with a ball joint mounted fixing bracket for XUM miniature sensors. The data sheet identifies its accessory destination as a miniature sensor and lists compatibility with XUZC50 and XUM products. :contentReference[oaicite:1]{index=1}

This matters because miniature photoelectric sensors are often installed where space is limited and where the sensing axis must be adjusted carefully. The ball joint mounted structure helps installers fine-tune the sensor position in three-dimensional alignment scenarios. That can be useful when the target object is small, reflective, irregularly shaped, or moving at speed. While the sensor performs the detection task, the bracket helps define the reliability of the physical setup.

Technical Characteristics

The XUZM2003 is listed as part of the Telemecanique Photoelectric Sensors XU range. Its accessory category is mounting and fixing accessories, and its accessory type is fixing bracket. The accessory destination is miniature sensor, and the protective cover specification is listed as without protective cover. :contentReference[oaicite:2]{index=2}

Packaging data is also relevant for maintenance teams and spare-part planning. The unit package is one piece, with package dimensions of 4.0 cm height, 6.0 cm width, and 3.5 cm length. The package weight is listed as 156.0 g. Larger logistics units include 16 units in package type S01 and 512 units in package type P06. :contentReference[oaicite:3]{index=3}

Installation Value in Industrial Automation

Photoelectric sensors are commonly selected for detecting object presence, counting parts, confirming position, and supporting automated process control. However, a high-quality sensor can only perform correctly when it is mounted in the right position. The Telemecanique XUZM2003 fixing bracket supports that requirement by giving the installer a dedicated mechanical interface for XUM miniature sensor alignment.

In real machine environments, small changes in sensor angle can influence detection behavior. For example, transparent materials, shiny surfaces, narrow components, and fast-moving items can all require careful tuning. A 3D fixing kit is valuable because it gives technicians more flexibility than a flat, fixed mounting plate. This helps reduce unnecessary downtime during commissioning and can make future adjustment easier after maintenance work.

Compatibility and Practical Use

The XUZM2003 should be considered when the application uses compatible Telemecanique XUM miniature photoelectric sensors. It is not a sensor by itself; it is a mechanical mounting accessory. That distinction is important for engineers, buyers, and maintenance planners. When replacing parts, the bracket should be matched against the sensor family, mounting space, and required adjustment method.

For broader product family information, visit Telemecanique sensors.

Sustainability and Warranty Information

The manufacturer documentation identifies XUZM2003 as a Green Premium product and lists an 18-month contractual warranty. It also includes California Proposition 65 information related to chemical exposure warnings. :contentReference[oaicite:4]{index=4}

Telemecanique XUZM2003 FAQ

What is Telemecanique XUZM2003?

Telemecanique XUZM2003 is a fixing bracket accessory for Telemecanique Photoelectric Sensors XU. It is described as a 3D fixing kit with a ball joint mounted fixing bracket for XUM miniature sensor applications.

Is XUZM2003 a sensor?

No. XUZM2003 is not an electronic sensor. It is a mechanical mounting and fixing accessory used with compatible photoelectric sensors. Its role is to support accurate physical positioning of the sensor.

Which sensors are compatible with XUZM2003?

The manufacturer data sheet lists compatibility with XUZC50 and XUM products. Before installation, the exact sensor model and mounting layout should be checked against the technical documentation.

Why is a 3D fixing bracket useful?

A 3D fixing bracket allows more flexible sensor alignment than a simple fixed bracket. This can be important when the detection target, machine frame, or optical path requires careful positioning.

Does XUZM2003 include a protective cover?

No. The product data sheet states that XUZM2003 is supplied without a protective cover. If environmental protection is required, the complete installation design should be reviewed.

Where is this bracket commonly used?

It is commonly used in industrial automation environments where miniature photoelectric sensors must be mounted accurately, such as conveyors, packaging machines, compact assembly stations, and detection points inside machinery.
