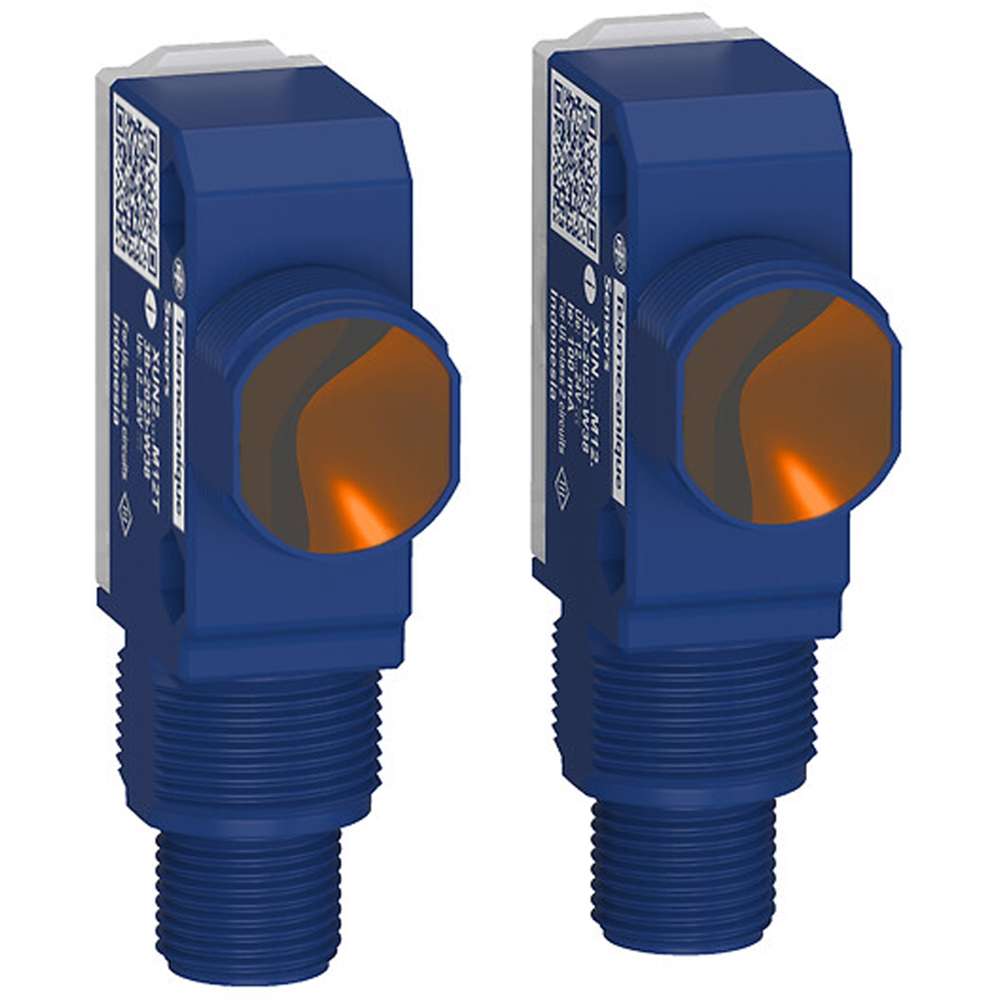

Telemecanique XUN6ANXNM12 Ultrasonic Sensor: Performance and Integration Guide
The Telemecanique XUN6ANXNM12 ultrasonic sensor delivers consistent medium-range detection performance using non-contact ultrasonic measurement. Designed with an M12 connector, this model supports standardized cabling strategies in industrial control panels and automation lines.
Technical Specifications
- Detection range: 0.05–0.6 m
- Supply voltage: 12–24 V DC
- Output: PNP/NPN selectable
- Connection: M12 connector
- Response time: ≤ 50 ms
- IP rating: IP67
- Operating temperature: -25…70 °C
The Telemecanique XUN6ANXNM12 ultrasonic sensor is engineered for reliable presence detection in packaging, intralogistics, and process control applications.
Engineering teams seeking standardized sensor families may consult the Telemecanique sensor category for broader integration options.
Applications
- Container fill-level monitoring
- Box detection in conveyor systems
- Position verification
FAQ
1) What detection range is supported?
0.05–0.6 meters.
2) What connector type is used?
M12 male connector.
3) What voltage is required?
12–24 V DC.
4) Is color a limitation?
No, ultrasonic detection is independent of color.
5) What protection rating is provided?
IP67 industrial protection.
