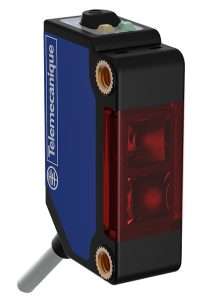

Telemecanique XUM8ANXBL2 Photoelectric Sensor for Accurate Object Detection
Accurate object detection becomes more challenging when a machine must distinguish a target from the background behind it. That is exactly where the Telemecanique XUM8ANXBL2 photoelectric sensor offers practical value. Built as a miniature background suppression sensor, it is designed for applications where standard diffuse sensing may be affected by reflections from surfaces behind the target. In fast-moving industrial lines, that extra precision can improve process consistency and reduce nuisance detection issues.
What Makes the Telemecanique XUM8ANXBL2 Different?
The Telemecanique XUM8ANXBL2 photoelectric sensor belongs to the XU family and uses diffuse sensing with background suppression. That matters because background suppression helps the sensor focus on the intended object rather than the area behind it. In real machine environments, this can be highly useful when detecting cartons, trays, parts, or components positioned in front of metal frames, belts, guards, or machine walls. Instead of relying only on reflected light intensity, the sensor is optimized for more selective detection.
Key Technical Features of XUM8ANXBL2
The Telemecanique XUM8ANXBL2 miniature photoelectric sensor features a maximum sensing distance of 0.30 m and a nominal sensing distance of 0.20 m. It uses a red LED diffuse emission with background suppression, operates on 12 to 24 V DC rated supply voltage, and allows voltage limits from 10 to 30 V DC. Like many industrial automation sensors in this category, it uses a 3-wire DC design with an NPN discrete output. The output function is programmable as 1 NO or 1 NC, and switching capacity is rated up to 100 mA with overload and short-circuit protection. Switching frequency reaches 1000 Hz, with 0.5 ms response and recovery time.
Why Background Suppression Matters in Automation
In many industrial applications, the challenge is not just seeing the object. It is seeing the correct object and ignoring everything else. The Telemecanique XUM8ANXBL2 background suppression photoelectric sensor is especially useful when products travel close to fixed machine elements or when target color and finish can change during production. This helps engineering teams build more stable detection zones for pick-and-place units, small conveyors, sorting systems, and compact assembly equipment.
Compact Design for Machine Builders
The Telemecanique XUM8ANXBL2 photoelectric sensor is built in a miniature housing with dimensions of 20 mm depth, 33 mm height, and 10 mm width. That form factor makes it a smart option in tight machine designs where sensors must fit beside guides, cylinders, or moving tooling. Small footprint sensors often help reduce mechanical compromises, especially in OEM projects where every millimeter of panel and machine space has strategic value.
Electrical and Control Integration
From an integration standpoint, the Telemecanique XUM8ANXBL2 industrial photoelectric sensor is easy to understand and implement. It uses a 2 m cable connection and an NPN output suitable for many DC control systems. The maximum voltage drop is below 2 V in the closed state, and no-load current consumption is 30 mA. For PLC users and machine electricians, those specifications help with predictable wiring and stable signal behavior across repeated operating cycles.
Environmental Durability and Field Use
Industrial sensors need to remain dependable despite dust, vibration, and daily cleaning routines. The Telemecanique XUM8ANXBL2 photoelectric sensor uses a plastic housing with PBT enclosure material and PMMA lens material. The model is rated IP65 and IP67, which makes it relevant for demanding factory conditions. It is also certified for industrial use and supports reliable installation in environments where compact, sealed optical sensors are preferred over larger detection devices.
For complete sensing solutions, visit Telemecanique sensor product resources.
Best-Fit Applications for XUM8ANXBL2
The Telemecanique XUM8ANXBL2 background suppression sensor is well suited to short-range target verification, part presence sensing, small product detection, and machine sequencing tasks. It can be especially useful when a reflective machine surface sits behind the product, because that is exactly the kind of situation where background suppression adds real operational value. In packaging and assembly environments, this sensor can help reduce false switching and improve repeatability.
Why Engineers Search for Sensors Like This
Search demand around terms such as photoelectric sensor, background suppression sensor, industrial automation sensor, and miniature optical sensor stays high because these components solve a daily engineering need. The Telemecanique XUM8ANXBL2 photoelectric sensor fits directly into that demand profile by combining compact design, fast switching, and selective detection performance. For informational searches, it stands out as a model that addresses both application flexibility and practical machine integration.
FAQ
What is Telemecanique XUM8ANXBL2?
It is a miniature photoelectric sensor with background suppression for short-range industrial object detection.
What is the sensing range of XUM8ANXBL2?
The maximum sensing distance is 0.30 m, and the nominal sensing distance is 0.20 m.
Does Telemecanique XUM8ANXBL2 use NPN output?
Yes. It has an NPN discrete output and a 3-wire DC wiring configuration.
Where is the XUM8ANXBL2 photoelectric sensor commonly used?
It is commonly used in compact machines, conveyors, assembly stations, and packaging lines where precise detection is needed.
Why choose a background suppression sensor instead of a standard diffuse sensor?
Background suppression helps reduce false detection caused by reflective or nearby surfaces behind the target object.
