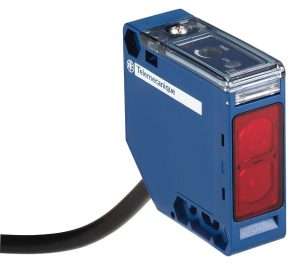

Telemecanique XUK1ARCNL2-SM-10 Photoelectric Sensor: Reflex Detection with Relay Output
The Telemecanique XUK1ARCNL2-SM-10 photoelectric sensor is a reflex optical detection device engineered for industrial presence monitoring. Using retro-reflective technology, this sensor establishes a defined optical corridor between the emitter and reflector, enabling reliable object detection over extended distances.
Technical Specifications
- Brand + code + type: Telemecanique XUK1ARCNL2-SM-10 photoelectric sensor
- Sensing method: Reflex (retro-reflective)
- Rated sensing distance: Sn 7 m
- Supply voltage: 24…240 VAC/DC
- Output configuration: SPDT relay output
- Connection: 2 m cable
- Indicators: Green power LED, yellow output LED
Reflex Optical Operation
The Telemecanique XUK1ARCNL2-SM-10 photoelectric sensor transmits a modulated beam toward a reflector. Detection occurs when an object interrupts the reflected signal. This method improves detection consistency across varying product colors and textures.
Wide Voltage Supply Integration
The 24–240 VAC/DC supply capability allows this sensor to operate in mixed AC and DC control panels. This versatility reduces SKU variation and simplifies standardization across different production lines.
Relay Output Characteristics
The integrated SPDT relay output provides galvanic isolation between sensing electronics and control circuits. This ensures compatibility with PLC inputs, relay logic systems, and signaling modules within rated switching parameters.
Installation and Alignment
- Ensure accurate alignment with reflector.
- Mount on vibration-resistant surfaces.
- Maintain clear optical path.
- Secure cable routing to avoid strain.
- Verify switching function during commissioning.
Explore related detection devices at Telemecanique sensor.
FAQ
- What sensing type is used?
Reflex photoelectric detection. - What is the detection range?
Sn 7 meters. - What output type is included?
SPDT relay output. - What supply voltage is supported?
24–240 VAC/DC. - What is the primary use?
Industrial presence detection.
Entity recap: The Telemecanique XUK1ARCNL2-SM-10 photoelectric sensor is a reflex optical device with Sn 7 m range and relay output for industrial automation systems.
