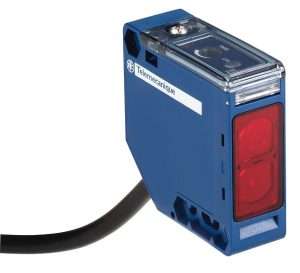

Telemecanique XUK0ARCTL2

Telemecanique XUK0ARCTL2 Photoelectric Sensor: Multimode Logic, AC/DC Supply, and Programmable Output

The Telemecanique XUK0ARCTL2 photoelectric sensor is a multimode photoelectric device designed for applications where optical mode flexibility and broad supply compatibility are required. In industrial environments that include both legacy AC installations and modern DC control panels, an AC/DC photoelectric sensor can simplify standardization by reducing the need for separate device families. At the same time, multimode capability can support different sensing strategies as machine requirements evolve.

Product identity and design class

Datasheet content describes the Telemecanique XUK0ARCTL2 photoelectric sensor as a compact 50 x 50 design within the OsiSense XU range, defined as a general purpose multimode photo-electric sensor with Sn 0..30 m. It is specified for 24..240 VAC/DC supply, uses a 5-wire wiring technique, and provides a discrete output function that is programmable as 1 NO or 1 NC, with a 2 m cable.

Core specifications (implementation-focused)

  • Brand + code + type: Telemecanique XUK0ARCTL2 photoelectric sensor
  • Sensor design: Compact 50 x 50
  • Detection system: Multimode
  • Sensing distance: Sn 0..30 m
  • Supply circuit: AC/DC, 24..240 VAC/DC
  • Wiring technique: 5-wire
  • Output function: 1 NO or 1 NC programmable
  • Connection: Cable 2 m

Multimode: operational flexibility with governance requirements

Multimode capability can be a significant advantage in plants where stations are reconfigured. The Telemecanique XUK0ARCTL2 photoelectric sensor supports multimode behavior (as defined in its datasheet), which means the same physical device can be used in different optical setups depending on how it is configured and installed.  The governance requirement is documentation: record which mode is used at each station so that maintenance teams understand whether the station is operating as diffuse, reflex, or another supported mode. Without that station-level clarity, “same sensor, different behavior” becomes a recurring troubleshooting challenge.

AC/DC supply: standardization across mixed infrastructures

The 24..240 VAC/DC specification is particularly relevant in retrofit programs.  It allows the Telemecanique XUK0ARCTL2 photoelectric sensor to be integrated where supply availability may vary by machine generation or panel standard. From a controls governance perspective, it is still essential to confirm how the output is interfaced to PLC inputs, relay logic, or safety interlocks, because AC/DC devices can have different leakage and load characteristics than purely DC transistor outputs.

Programmable NO/NC output: a powerful feature that must be controlled

The ability to program the output function as NO or NC can reduce spare complexity, but it also introduces configuration risk.  A practical policy is to standardize one output behavior across a production area and document the configured state in commissioning records. If a replacement sensor is installed with the opposite output setting, the station may fail silently or invert its logic. For that reason, labeling should include the full identifier and the configured output behavior: Telemecanique XUK0ARCTL2 photoelectric sensor (configured NO) or (configured NC).

Installation and commissioning guidance

  • Define and document the optical mode used at the station and verify it after any maintenance work.
  • Validate operation across the full expected distance range for the chosen mode within the Sn 0..30 m envelope.
  • Confirm the programmed output state (NO/NC) during acceptance testing and record it in station documentation.
  • Ensure cable routing does not create torsion that shifts alignment over time, especially in high-vibration areas.

For portfolio alignment and consistent sensor governance, consult Telemecanique sensor references and keep configuration documentation standardized.

FAQ

  • What detection system is specified for the Telemecanique XUK0ARCTL2 photoelectric sensor?
    It is specified as multimode.
  • What supply range does it support?
    24..240 VAC/DC is listed.
  • What is the sensing distance range?
    Sn 0..30 m is stated in the datasheet.
  • Can the output be set as NO or NC?
    Yes, it is listed as 1 NO or 1 NC programmable.
  • Why is documentation important with programmable outputs?
    Because replacing the sensor without matching the configured NO/NC state can invert station logic and create operational risk.

Entity recap: The Telemecanique XUK0ARCTL2 photoelectric sensor is a compact 50×50 multimode device with Sn 0..30 m, 24..240 VAC/DC supply, 5-wire wiring, programmable NO/NC output, and a 2 m cable—well suited for standardized deployments when configuration governance is maintained.
