Telemecanique XS7J1A1NAL2 Inductive Proximity Sensor Guide

The Telemecanique XS7J1A1NAL2 inductive proximity sensor is a miniature flat-form sensor designed for precise non-contact detection of metallic objects. It is suited to compact automation systems where space is limited but reliable sensing remains essential. Because it uses inductive technology, the sensor detects metal through an electromagnetic field instead of requiring physical contact with the target.

This makes the XS7J1A1NAL2 useful in high-cycle applications where mechanical switches may wear over time. Its small rectangular body allows installation in machine areas where a larger sensor would be difficult to mount. The Telemecanique XS7J1A1NAL2 inductive proximity sensor is often considered for compact conveyors, small handling systems, assembly stations, indexing mechanisms, and machine position detection.

Telemecanique XS7J1A1NAL2 Technical Characteristics

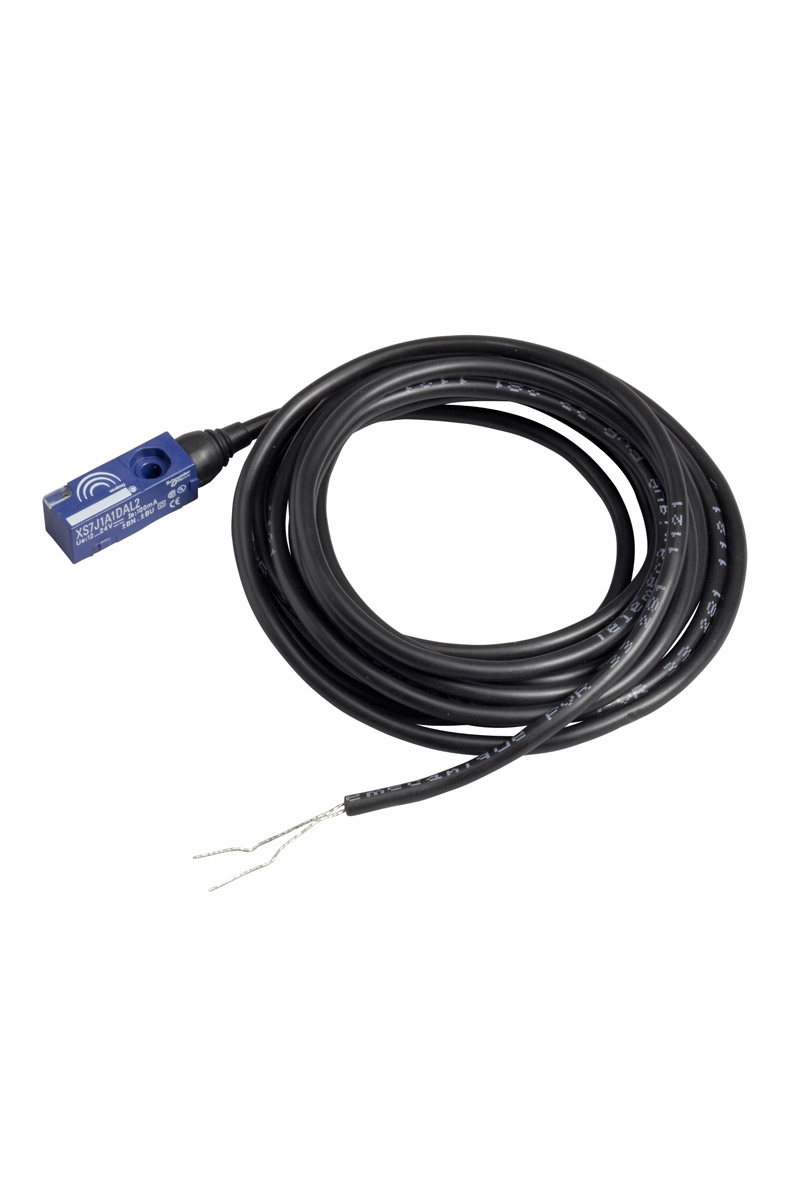

The XS7J1A1NAL2 has a flat-form 8 x 22 x 8 mm body and a PBT plastic enclosure. It is flush mountable, which supports clean integration into suitable machine surfaces or brackets. The nominal sensing distance is 2.5 mm, making it a close-range solution for detecting nearby metal targets in compact mechanical assemblies.

The sensor operates on a 12 to 24 VDC supply and uses a 3-wire connection. It has an NPN normally open output, allowing it to switch when a valid metallic target is detected. The model is supplied with a 2 m cable and supports switching capacity up to 100 mA. Its IP67 protection rating supports use in many industrial environments where dust and temporary moisture exposure may be present.

Why Compact Flat Sensors Matter

In modern machine design, available installation space is often limited. Cylindrical proximity sensors are common, but they are not always ideal for shallow mounting areas, narrow frames, or small moving mechanisms. A flat sensor such as the XS7J1A1NAL2 gives engineers an alternative when a low-profile sensing solution is required.

The 2.5 mm sensing distance is designed for close target detection. This makes the sensor appropriate when the metal object passes very near the sensing face or when the machine geometry allows tight positioning. It is not intended for long-range detection; instead, it supports precise local sensing where compact size and repeatability are the priorities.

Typical Applications

The Telemecanique XS7J1A1NAL2 inductive proximity sensor can be used to verify metal part presence, confirm the position of a small actuator, monitor a moving machine element, or detect the arrival of a metallic component in a fixture. It is especially useful in compact assemblies where larger sensors may interfere with machine motion or occupy too much space.

In small automation cells, this model may detect a metal stop, bracket, guide, or slide. In conveyor equipment, it can confirm whether a metal item has reached a defined location. In packaging and assembly machinery, it may help ensure that the next process step begins only after a metal component is correctly positioned.

Installation Guidance

Because this model uses an NPN normally open output, the control system must be compatible with that signal type. The power supply must remain within the 12 to 24 VDC range. The sensor face should be aligned carefully with the target path, and the target should pass within the effective sensing zone.

Small inductive sensors require careful mounting because target size and surrounding metal can affect detection. The close 2.5 mm range should be treated as a design parameter, not a broad tolerance. Proper bracket design, cable routing, and protection from mechanical impact can improve long-term reliability.

For broader product family information, visit Telemecanique proximity sensor information.

Frequently Asked Questions

What type of sensor is the Telemecanique XS7J1A1NAL2?

It is an inductive proximity sensor. It detects metallic objects without contact and sends a discrete switching signal to a compatible control system.

What is the sensing distance of the XS7J1A1NAL2?

The nominal sensing distance is 2.5 mm. Actual detection can be influenced by the type of metal, target size, approach direction, and mounting conditions.

What output type does this model have?

The XS7J1A1NAL2 has a 3-wire DC NPN normally open output. It should be used with PLC or controller inputs that are compatible with NPN sensor logic.

Is the XS7J1A1NAL2 suitable for very compact machines?

Yes. Its 8 x 22 x 8 mm flat body is designed for compact installation areas. It is useful where a small sensing face and low-profile housing are required.

Can this sensor detect plastic or non-metallic objects?

No. As an inductive proximity sensor, it is designed to detect metallic targets. For plastic, wood, liquid, or other non-metallic materials, a different sensor technology may be required.

What should be checked before replacing another sensor with this model?

Important checks include sensing distance, output type, supply voltage, cable length, mounting style, housing dimensions, protection rating, and PLC input compatibility. The mechanical fit and target position should also be reviewed before installation.
