Telemecanique XS7F1A1NAL2 Inductive Proximity Sensor Guide

The Telemecanique XS7F1A1NAL2 inductive proximity sensor is a flat-form industrial sensor designed for reliable non-contact detection of metallic objects. It is commonly used in automation systems where accurate position detection, compact mounting, and long service life are important. Because it detects metal without physical contact, it helps reduce mechanical wear and supports repeatable machine operation in high-cycle applications.

This model belongs to the Telemecanique XS inductive proximity sensor range. Its compact rectangular format makes it suitable for installations where a cylindrical proximity sensor may be difficult to fit. The Telemecanique XS7F1A1NAL2 inductive proximity sensor is especially useful in conveyor systems, handling equipment, small assembly machines, packaging lines, indexing mechanisms, and machine guards where metallic target detection is required.

Telemecanique XS7F1A1NAL2 Technical Characteristics

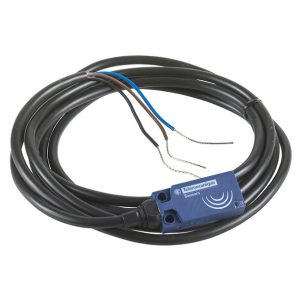

The Telemecanique XS7F1A1NAL2 is a flat-form inductive sensor with a 15 x 32 x 8 mm body. It uses a PBT plastic enclosure and has a flush-mountable design, allowing the sensor to be integrated neatly into suitable machine surfaces or brackets. Its nominal sensing distance is 5 mm, making it appropriate for close-range metallic object detection in compact machine layouts.

The sensor operates on a 12 to 24 VDC supply and uses a 3-wire connection. It has an NPN normally open output, which means the output changes state when a suitable metal target enters the sensing field. The model is supplied with a 2 m cable and supports a switching capacity up to 100 mA. Its IP68 protection rating makes it suitable for many demanding industrial environments where dust and moisture resistance are important.

How the Sensor Works

As an inductive proximity sensor, the XS7F1A1NAL2 generates an electromagnetic field at the sensing face. When a metallic object approaches this field, the sensor detects the change and provides a switching signal to the control system. This operating principle makes the sensor suitable for detecting steel, iron, and other conductive metals without direct contact.

The key advantage of this approach is repeatability. Since there is no actuator arm, roller, or plunger touching the target, the sensor avoids the mechanical fatigue often associated with contact-based limit switches. In production environments with repeated movement, this can support better uptime and easier maintenance planning.

Typical Applications

The Telemecanique XS7F1A1NAL2 inductive proximity sensor can be used for metal part detection, fixture confirmation, end-position sensing, machine cycle monitoring, and component presence checks. Its small 15 x 32 x 8 mm housing is practical for tight spaces, while the 5 mm sensing distance provides a useful detection range for close mounting positions.

In automated equipment, it may be used to confirm whether a metal component is correctly seated before the next machine step begins. In conveyor systems, it can detect passing metal items or verify the position of a mechanical stop. In assembly machinery, it can help monitor moving slides, tool holders, or metal brackets.

Installation Considerations

Before selecting this sensor, confirm that the control system supports an NPN normally open input signal. The available supply must remain within the 12 to 24 VDC range, and the target should be positioned within the effective sensing distance. Although the nominal sensing distance is 5 mm, real-world detection can vary depending on target material, target size, approach direction, and mounting conditions.

Telemecanique XS7F1A1NAL2 For broader Telemecanique product context, visit Telemecanique sensor information.

Frequently Asked Questions

What type of product is the Telemecanique XS7F1A1NAL2?

It is an inductive proximity sensor designed to detect metallic objects without physical contact. It is used in industrial automation systems for position sensing, presence detection, and machine monitoring.

What is the sensing distance of the XS7F1A1NAL2?

The nominal sensing distance is 5 mm. Actual detection performance can vary depending on target size, metal type, mounting arrangement, and environmental conditions.

What output type does the XS7F1A1NAL2 use?

This model has a 3-wire DC NPN normally open output. It should be connected to a compatible PLC or control input designed for that signal configuration.

Is the XS7F1A1NAL2 suitable for wet or dusty environments?

The sensor has an IP68 protection rating, which supports use in many industrial environments where dust and moisture resistance are required. Installation quality and cable protection should still be considered.

Why choose a flat inductive sensor instead of a cylindrical sensor?

A flat sensor can be easier to install in shallow spaces, machine frames, compact brackets, or applications where the sensing face must sit close to a surface. The XS7F1A1NAL2 is useful when space is limited but dependable metal detection is still required.
