Telemecanique XS7C1A1PAL2

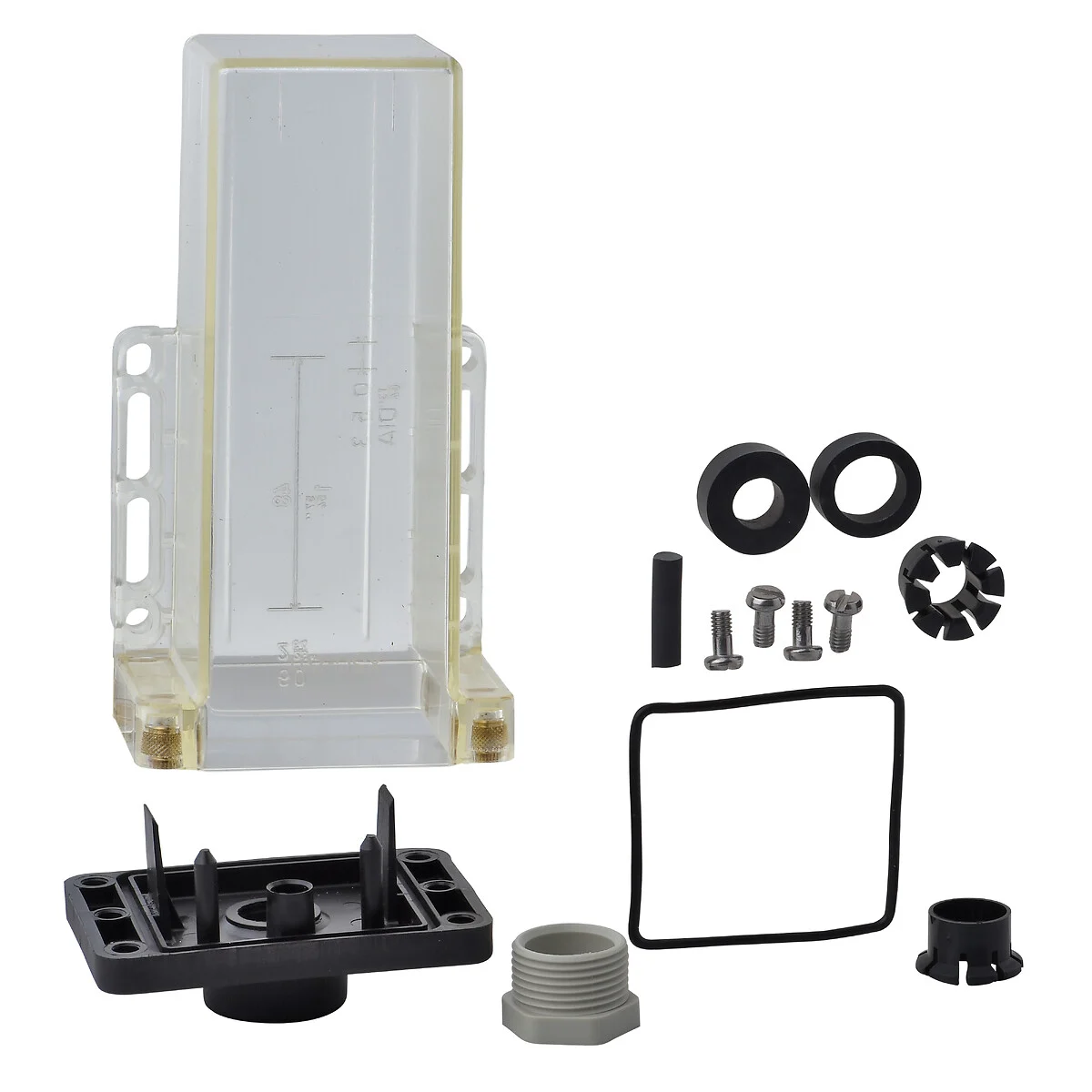

Telemecanique XS7C1A1PAL2 Inductive Proximity Sensor: Flat-Form Detection in 40×40×15

The Telemecanique XS7C1A1PAL2 inductive proximity sensor is engineered for installations where a cylindrical body is not the best mechanical fit. With a flat-form housing, this sensor supports clean integration on brackets, plates, and compact machine frames while providing dependable inductive metal detection for control logic.

Product identity

The Telemecanique XS7C1A1PAL2 inductive proximity sensor is part of the XS family and uses a flat form 40 × 40 × 15 enclosure built from PBT. It is flush mountable, which helps keep the sensing face aligned and predictable when installed against a metal surface.

Technical specifications

  • Brand + code + type: Telemecanique XS7C1A1PAL2 inductive proximity sensor
  • Housing: Flat form 40 × 40 × 15, PBT enclosure
  • Mounting: Flush mountable
  • Nominal sensing distance (Sn): 15 mm
  • Output: Discrete, 3-wire, PNP, 1 NO
  • Supply: 12…24 V DC with reverse polarity protection
  • Connection: Cable, 2 m
  • Protection: IP68
  • Switching frequency: up to 1000 Hz

Why flat-form sensors reduce mechanical compromise

In many machines, the “best electrical sensor” is not the “best mechanical sensor.” The Telemecanique XS7C1A1PAL2 inductive proximity sensor addresses this by providing a compact, plate-friendly geometry. The flat housing can be mounted with straightforward fasteners and alignment, which often reduces bracket complexity and shortens maintenance time during sensor replacement.

Flush mounting for stable actuation points

Flush mountable sensors are typically selected when you want controlled sensing behavior without unintended side pickup from nearby metal. With the Telemecanique XS7C1A1PAL2 inductive proximity sensor, this design choice supports consistent “trip points” across production lines, helping quality teams keep setup parameters repeatable from cell to cell.

Electrical integration and PLC input mapping

This sensor is a DC PNP model with a normally open discrete output. In practical terms, it drives a positive signal toward a PLC input when it detects the target. When you create your panel documentation, label it explicitly as Telemecanique XS7C1A1PAL2 proximity sensor (PNP NO). That prevents confusion with similarly sized sensors that may be normally closed or NPN.

Telemecanique XS7C1A1PAL2 Operational best practices

  • Use secure strain relief so the 2 m cable does not flex at the housing exit.
  • Confirm target repeatability: consistent metal thickness and alignment improves stability.
  • Use the output-state LED during commissioning to validate actuation before PLC logic is finalized.

Common use cases

The Telemecanique XS7C1A1PAL2 inductive proximity sensor is a fit for space-conscious automation, including:

  • Indexing and position checks on compact conveyors
  • Presence detection on assembly fixtures
  • Packaging machinery where flush mounting protects the sensing face

For wider selection context across the same ecosystem, you can browse Telemecanique sensör references to standardize voltage, mounting approach, and protection class.

Telemecanique XS7C1A1PAL2 FAQ

  • What is the supply voltage for the Telemecanique XS7C1A1PAL2 inductive proximity sensor?
    It is rated for 12…24 V DC operation with reverse polarity protection.
  • Is the output PNP and normally open?
    Yes. It is a 3-wire PNP sensor with 1 NO output function.
  • What is the nominal sensing distance?
    Sn is 15 mm for this model.
  • Is it flush mountable?
    Yes, it is designed for flush mounting to help stabilize detection behavior.
  • What protection rating does it carry?
    It is specified with IP68 protection.

Entity recap: The Telemecanique XS7C1A1PAL2 inductive proximity sensor is a flat-form 40×40×15, Sn 15 mm, DC PNP NO proximity sensor with a 2 m cable and IP68 protection for compact industrial detection tasks.
