Telemecanique XS630B1NAL2 Inductive Proximity Sensor Guide

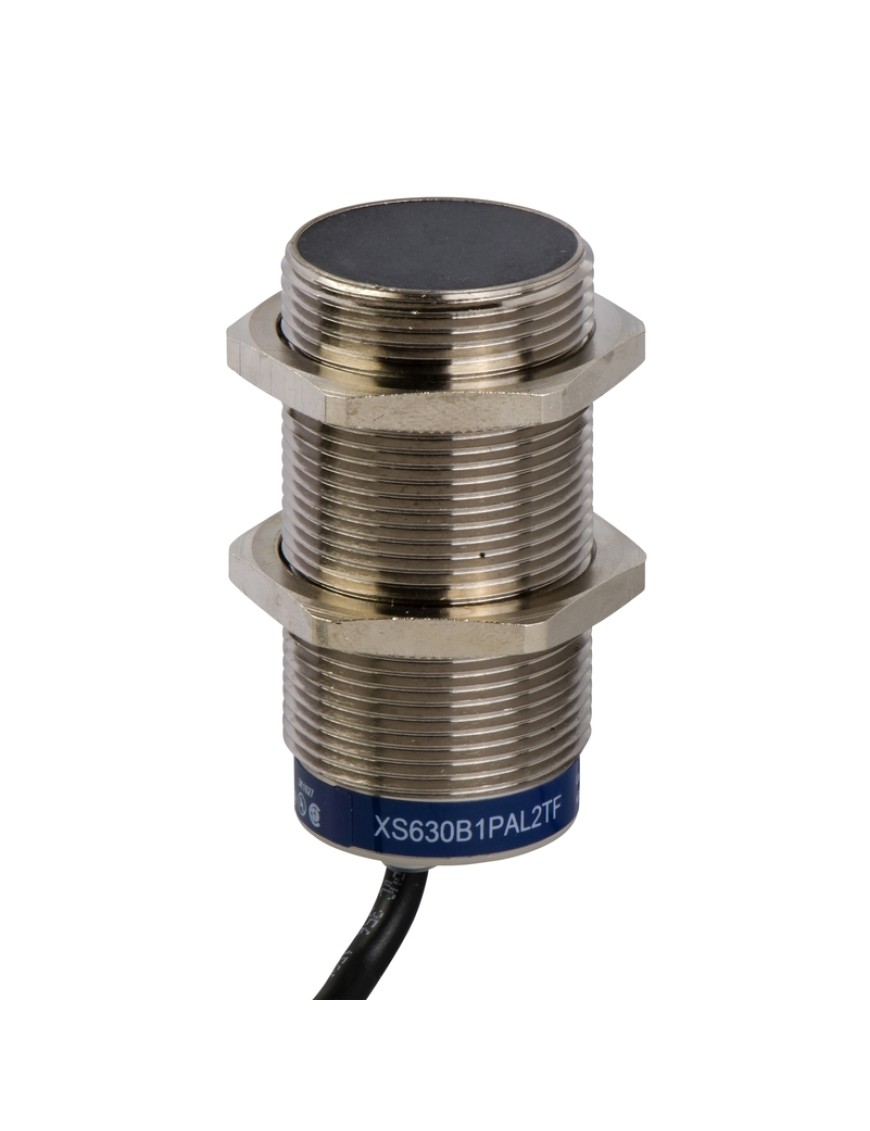

The Telemecanique XS630B1NAL2 inductive proximity sensor is a cylindrical M30 sensing device from the XS6 range, designed for reliable non-contact detection of metallic targets. It is built for industrial environments where repeatable object detection, mechanical robustness, and stable electrical performance are essential. With a nickel-plated brass body, frontal sensing face, and 2 meter cable connection, this sensor is commonly selected for machine automation, mobile equipment, material handling systems, and metal part detection points.

This model provides a nominal sensing distance of 15 mm and uses a 3-wire DC NPN output with a normally open function. In practical terms, the output changes state when a metal object enters the defined sensing zone. The sensor operates on 12 to 48 V DC, with reverse polarity protection, overload protection, and short-circuit protection. These features help protect the sensor during commissioning and daily operation.

Core Technical Profile

The XS630B1NAL2 has a fixed cylindrical M30 design with an overall length of 62 mm. It is flush mountable, which means the sensing face can be installed level with surrounding metal when the mounting rules are respected. This makes the sensor useful where compact installation is required and where exposed sensor faces may be vulnerable to impact or contamination.

The sensing face is made from PPS, while the enclosure uses nickel-plated brass. This combination supports mechanical durability and resistance to typical industrial conditions. The device has IP68 protection according to IEC 60529 and IP69K protection according to DIN 40050, making it suitable for demanding areas where dust, moisture, washdown, or splash exposure may be present.

Electrical and Detection Performance

The sensor uses a 3-wire cable with 3 x 0.34 mm² conductors. Its switching capacity is up to 200 mA DC, and the no-load current consumption is rated at 10 mA or less. The supply voltage limits are 10 to 58 V DC, giving the sensor useful tolerance around the nominal 12 to 48 V DC operating range.

For dynamic applications, the switching frequency is up to 500 Hz. The maximum response delay is 0.6 ms, while the recovery delay is 1.4 ms. These values make the Telemecanique XS630B1NAL2 inductive proximity sensor suitable for many standard automation tasks where metal targets pass the sensor at moderate to high speed.

Telemecanique XS630B1NAL2 Where This Sensor Fits Best

This sensor is especially relevant for detecting metal machine parts, confirming actuator position, monitoring moving mechanical assemblies, or identifying the presence of metallic components on conveyors. Since it is an inductive proximity sensor, it does not require physical contact with the target. That helps reduce mechanical wear and improves consistency over time.

For more details about related Telemecanique components, visit Telemecanique sensor information.

Installation Notes

Correct installation is important for reliable performance. Although this model is flush mountable, spacing rules should still be followed to avoid mutual interference or unwanted influence from surrounding metal. The yellow LED output indicator helps during setup because it gives a quick visual signal when the sensor detects a target.

The operating temperature range is -25 to 70 °C, while storage is rated from -40 to 85 °C. The sensor also carries CE marking and has CSA, UL, and E2 certifications, supporting its use in many industrial control environments.

Telemecanique XS630B1NAL2 FAQ

What is the Telemecanique XS630B1NAL2 used for?

It is used for non-contact detection of metallic objects in industrial automation systems. Common uses include position detection, metal part presence checking, conveyor monitoring, and mobile equipment sensing.

Is the XS630B1NAL2 a flush mountable sensor?

Yes. The XS630B1NAL2 is flush mountable, which allows the sensing face to be installed level with a metal surface when the required clearance distances are respected.

What output type does the XS630B1NAL2 have?

It has a 3-wire DC NPN output with a normally open function. This means the output switches when a suitable metal target is detected.

What is the sensing distance of the XS630B1NAL2?

The nominal sensing distance is 15 mm. The actual effective sensing behavior can vary depending on the target material, size, mounting conditions, and alignment.

Can the XS630B1NAL2 be used in wet or dusty areas?

Yes. It is rated IP68 and IP69K, making it appropriate for many harsh environments where moisture, dust, and washdown exposure may occur.

What cable does the XS630B1NAL2 include?

The sensor is supplied with a 2 meter cable, using three conductors for the 3-wire DC connection.
