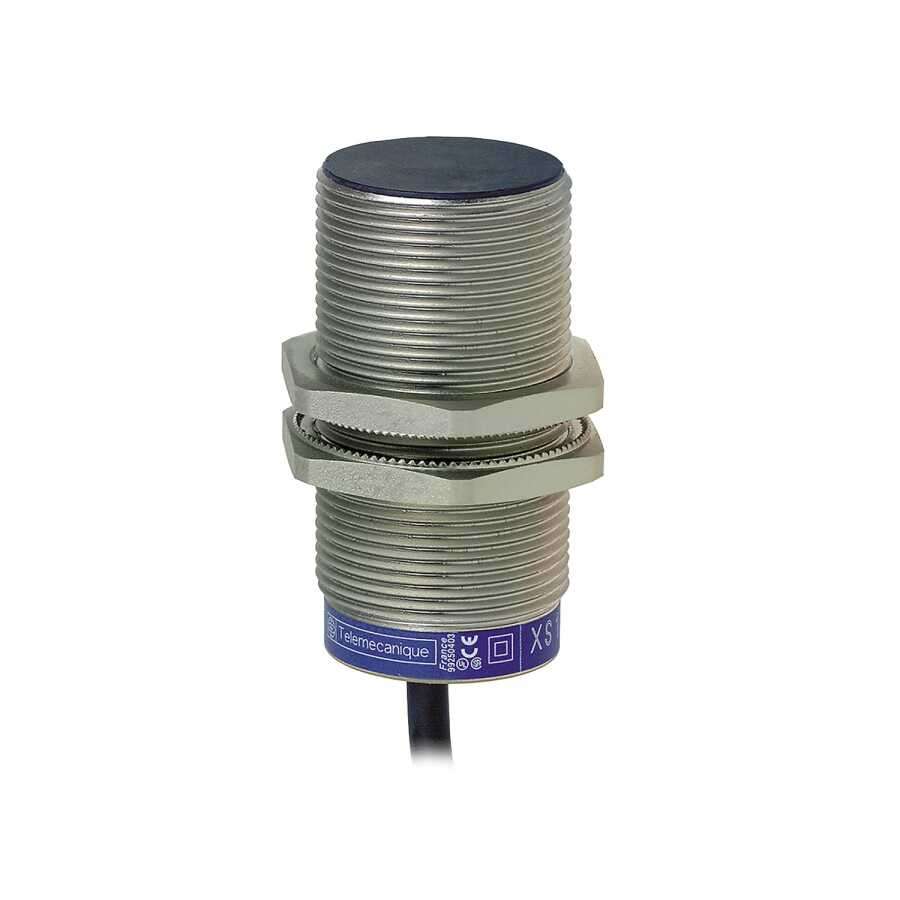

Telemecanique XS630B1DAL2 Inductive Proximity Sensor: M30 Sn 15 mm Industrial Metal Detection

Industrial automation environments demand sensing devices that combine mechanical robustness, electrical stability, and predictable switching behavior. The Telemecanique XS630B1DAL2 inductive proximity sensor is engineered as a cylindrical M30 sensor with a nominal sensing distance of 15 mm, designed to provide reliable non-contact metal detection in demanding production systems. With a 2-wire normally open configuration and high environmental protection ratings, this sensor integrates seamlessly into PLC-based industrial control architectures.

The Telemecanique XS630B1DAL2 inductive proximity sensor is particularly suited for heavy-duty machinery, material handling systems, and industrial automation platforms where extended sensing range and mechanical durability are critical.

Inductive Detection Principle

The Telemecanique XS630B1DAL2 inductive proximity sensor operates using an electromagnetic oscillation field generated at its sensing face. When a conductive metallic object enters the field, induced eddy currents alter the oscillator amplitude, triggering the internal switching circuit.

This detection principle ensures that the Telemecanique XS630B1DAL2 inductive proximity sensor remains unaffected by environmental lighting conditions, dust accumulation, or surface color variations. As a result, it provides consistent performance in environments where optical sensors may experience instability.

Core Technical Specifications

  • Sensor type: Inductive proximity sensor
  • Housing format: Cylindrical threaded M30
  • Nominal sensing distance (Sn): 15 mm
  • Mounting type: Flush mountable
  • Output configuration: 2-wire normally open
  • Supply voltage: 12–48 V DC
  • Electrical connection: Integrated cable
  • Protection rating: IP67 and IP69K

The extended sensing distance of the Telemecanique XS630B1DAL2 inductive proximity sensor provides greater installation flexibility compared to shorter-range models. This allows safer mechanical clearances while maintaining reliable detection.

Electrical Integration and Control Compatibility

The 2-wire configuration of the Telemecanique XS630B1DAL2 inductive proximity sensor simplifies wiring while maintaining compatibility with industrial PLC input modules. During integration, engineers should:

  • Verify voltage supply within the 12–48 V DC range
  • Ensure correct polarity connection
  • Confirm compatibility with input module characteristics
  • Implement proper cable strain relief

The 2-wire normally open output reduces wiring complexity while preserving reliable switching performance.

Mechanical Installation and Detection Margin

Although Sn 15 mm represents the nominal sensing distance, stable operation requires maintaining a practical margin below maximum threshold. Designing mechanical fixtures to operate within approximately 70–80% of nominal distance increases immunity to vibration, temperature variation, and tolerance drift.

The Telemecanique XS630B1DAL2 inductive proximity sensor supports flush mounting, enabling direct integration into metallic structures without significant loss of sensing performance. Correct tightening torque ensures mechanical stability and prevents housing deformation.

Environmental Durability

With IP67 and IP69K protection ratings, the Telemecanique XS630B1DAL2 inductive proximity sensor is engineered for harsh industrial environments including exposure to coolant spray, dust, and high-pressure washdown conditions. However, environmental protection performance depends on correct cable routing and sealing practices.

Cable routing should avoid sharp edges and high-vibration zones to prevent mechanical fatigue over time. Proper strain relief enhances long-term reliability.

Typical Industrial Applications

  • Heavy-duty conveyor positioning
  • Industrial robotics motion confirmation
  • Machine tool metal detection
  • Automated storage systems
  • Large actuator end-of-travel detection

The Telemecanique XS630B1DAL2 inductive proximity sensor delivers stable and repeatable metal detection performance across heavy industrial automation applications.

For complementary industrial sensing technologies and integration guidance, explore the Telemecanique sensor portfolio.

FAQ

  • What is the nominal sensing distance of the Telemecanique XS630B1DAL2 inductive proximity sensor?
    Sn 15 mm.
  • What wiring configuration does it use?
    2-wire normally open configuration.
  • Is it suitable for harsh industrial environments?
    Yes, IP67 and IP69K ratings support demanding conditions.
  • What voltage range is required?
    12–48 V DC.
  • What is a common installation mistake?
    Operating at the extreme sensing limit without sufficient mechanical margin.

With disciplined installation and standardized electrical integration, the Telemecanique XS630B1DAL2 inductive proximity sensor provides reliable long-range metal detection for industrial automation systems requiring durability and precision.
